Overview

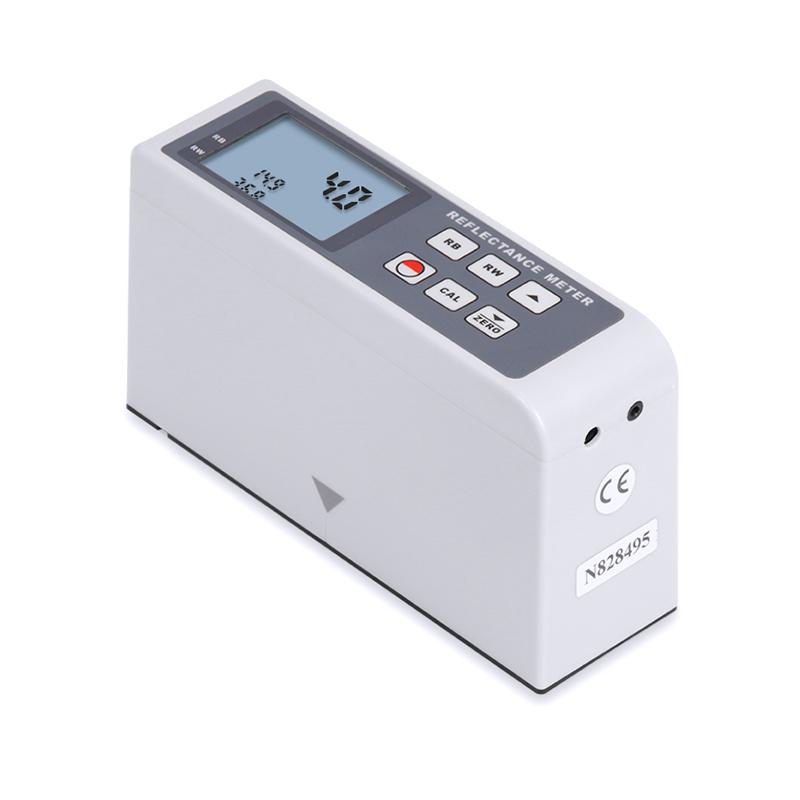

The AMITTARI ARM-216 reflectance meter is a precision instrument for the measurement of the transparency of various coatings, oils, films, plastic products, organic products and solid surface reflectance. The instrument is widely used in the mass or standardized inspection and management of products in the industries of coatings, pigments, inks, plastics, printing and dyeing, leather, film projection, etc.
Features
1. Technical indicators meet the requirements of international standards ISO3906-1980 (E) for reflectance, in line with ISO3906-1980 (E), ISO3905, ISO2814 international standards and GB/T13452.3-92, GB9270-88, GB5211.17-88 national standards

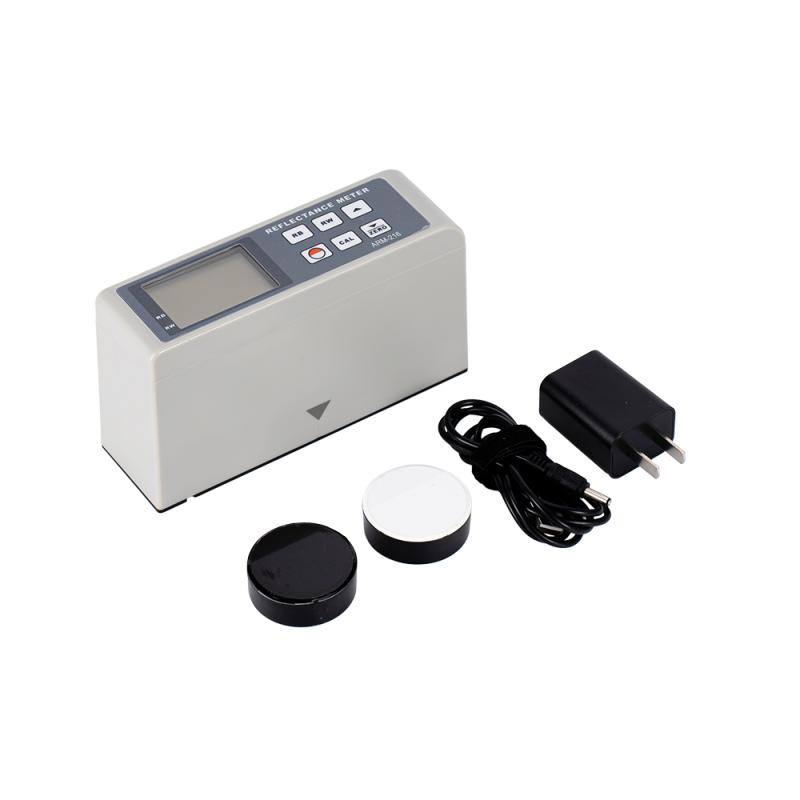

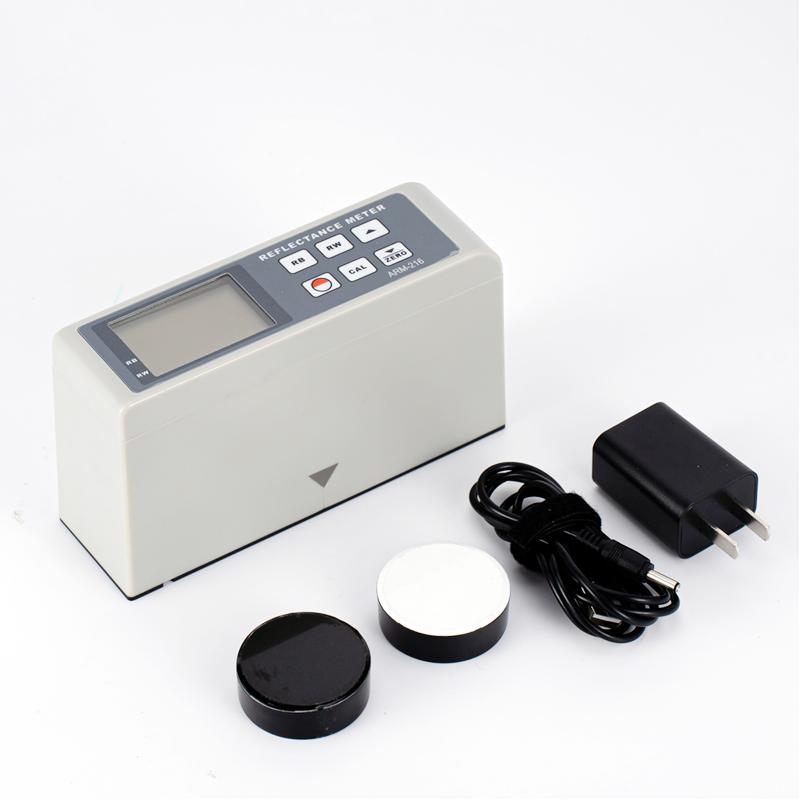

2. The instrument consists of a host, a standard board (one piece each in black and white), a working Pottery and porcelain board (one piece each in black and white), etc
3. Photocells, photovoltaic cells detect reflected light and generate electrical signals, amplified by a DC amplifier after reading display
4. Equipped with USB data cable output to communicate with PC
5. Provide Bluetooth data output selection
Principle
Photocell, photovoltaic cell when the reflected light acting on the surface of the sample generates an electrical signal, the electrical signal is input to the DC amplifier for amplification, and finally display the measurement results through the reading display device.
Applications
Paints, pigments, inks, plastics, dyeing, leather, film screening
Standards
ISO3906-1980 (E)、ISO3905、ISO2814、GB/T13452.3-92、GB9270-88、GB5211.17-88
Notice
* Please ensure that the Ambient Temperature is within the range of 0~ 40 ℃ before use
Do not use the instrument beyond the range of 0 to 100

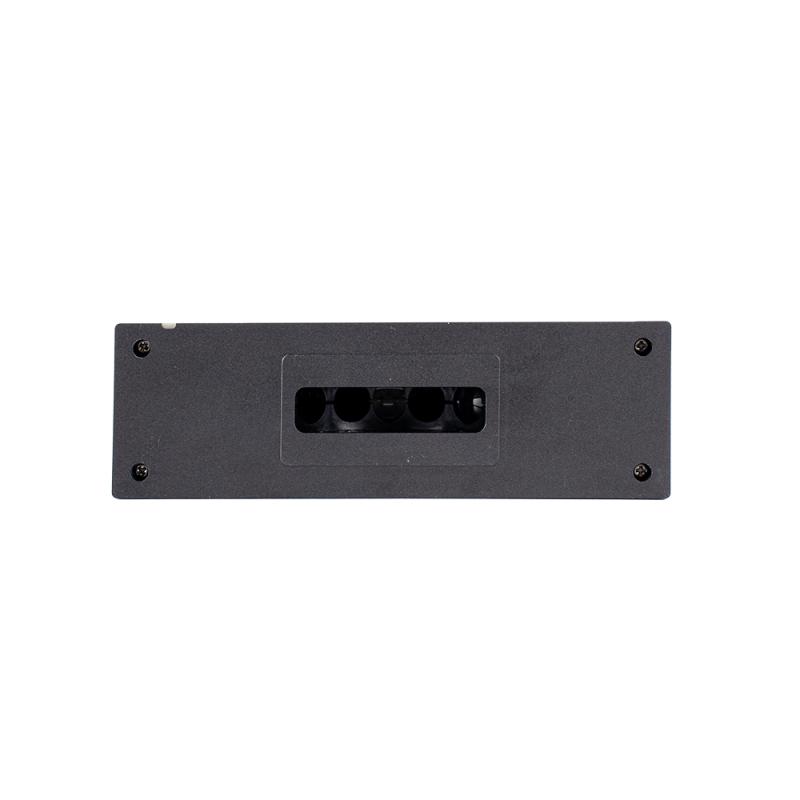

* When using, please note that the measurement aperture is 7 * 14mm oval
* Please check the battery power regularly to ensure normal power supply

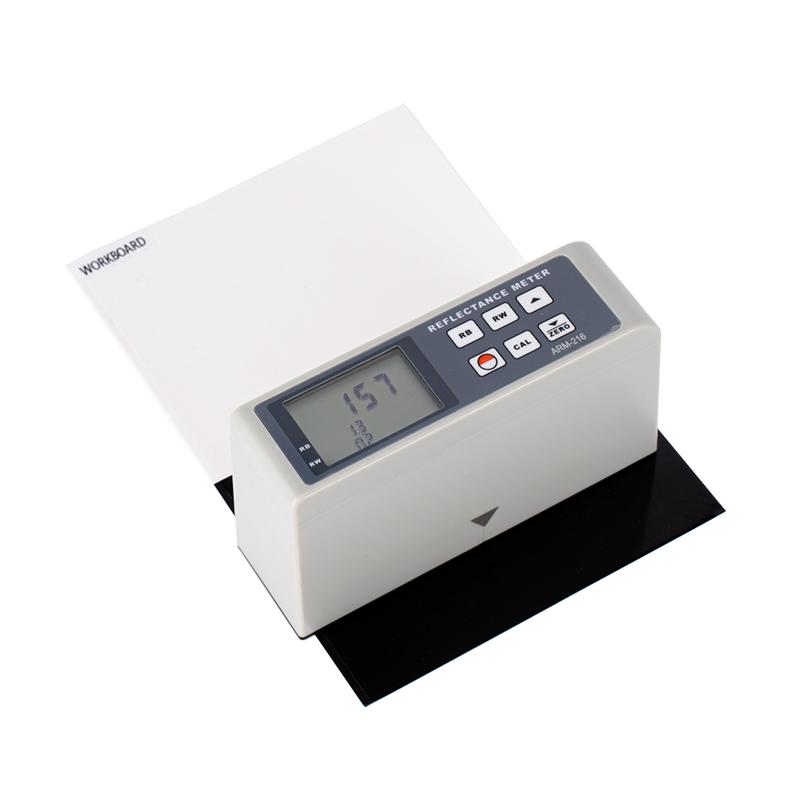

* Please keep the standard board and working Pottery and porcelain board properly to avoid damage
