Overview

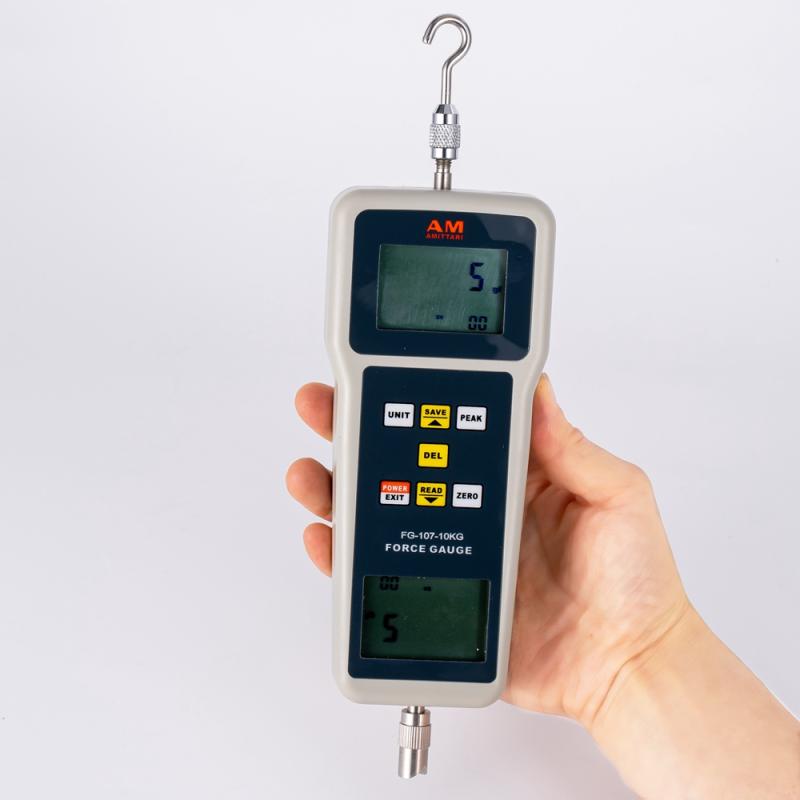

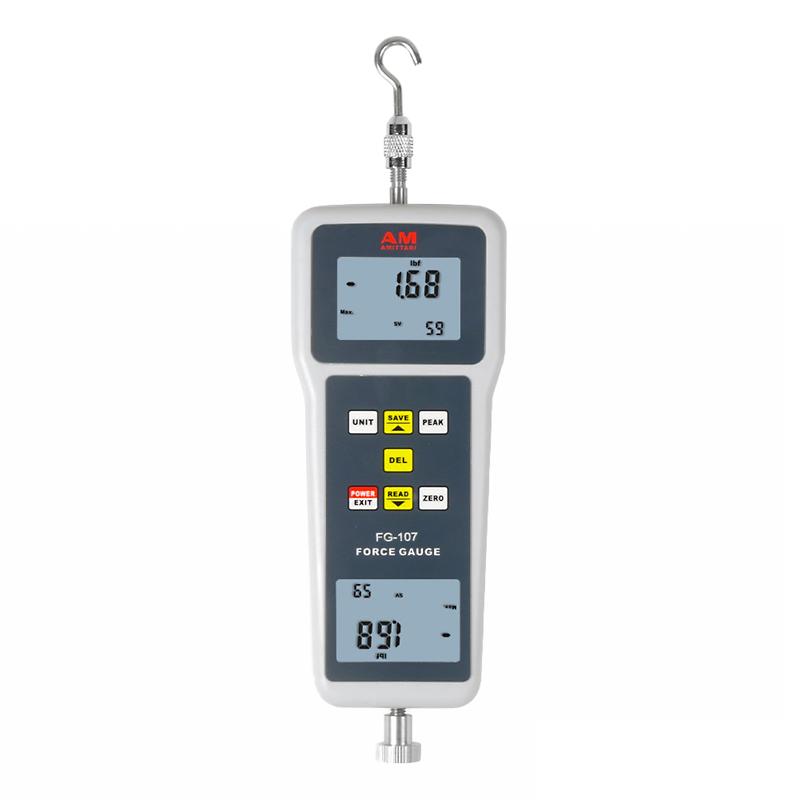

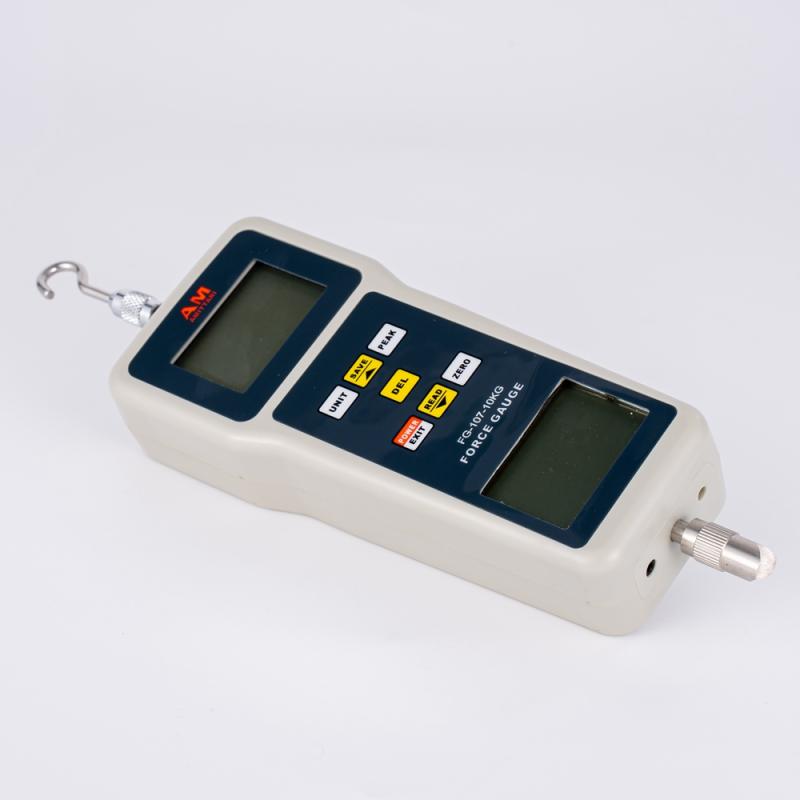

AMITTARI FG-107 Digital Display Force Gauge is a small, simple and multi-functional High Accuracy thrust and tension testing instrument with the advantages of High Accuracy, easy operation and easy portability. The instrument has a peak holding test mode, which is convenient for testers to use, and can store test data and enter it into a computer for statistical analysis. It can be combined with various test benches and fixtures to form a testing machine for different purposes.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Data storage function, capable of storing 99 test values
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
8. Can be powered by alkaline battery; can also be connected to 6V DC power supply
Principle

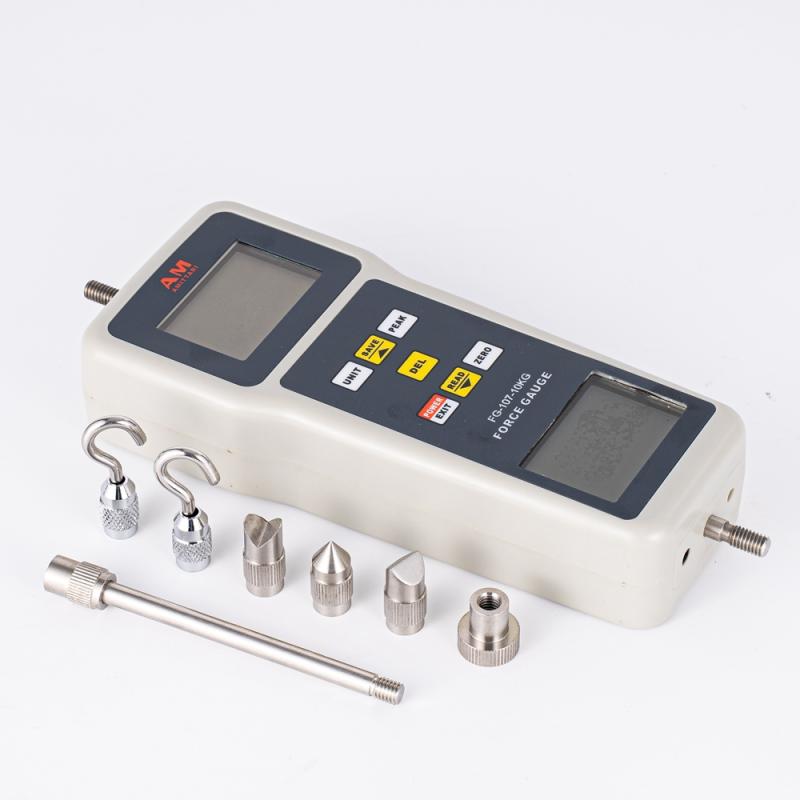

The Force Gauge conducts the thrust or tension received through the sensing screw, which can be connected to the attachment hook, flat probe, conical probe, V-groove probe, V-wedge probe, extended connecting rod and other accessories. The measurement value is displayed through the monitor, the thrust (pressure) is positive by default, and the tension is negative by default. The instrument has a peak hold function to maintain the maximum test value display.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Accuracy: 0.2 level, Indication Error ： +/- 0.2% FS (range) +/- 1 digital peak
Steps
1. Select the measurement unit via the unit key (UNIT)
2. Zero correction operation through ZERO
3. Set the peak hold mode through the peak key (PEAK)
4. Save test data by SAVE/▲
5. Read the saved data through the read/subtract key (READ/▲)
6. Delete data by Delete Key (DEL)
7. Power on or return via the power/return button (POWER/EXIT)
Notice
* Allowable load: 150% F.s (over 110% F.s, there is a beep alarm)
* Permissible operating temperature: 0~ 40 ° C
* Allowable relative humidity: < 80%
* Working environment: no source and corrosive medium around

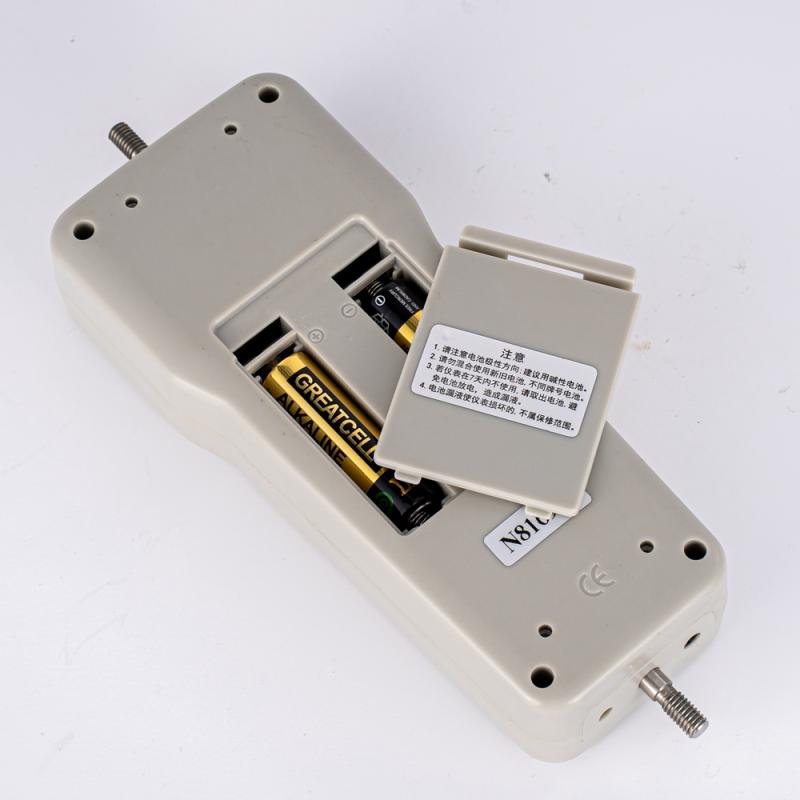

* Power supply: can use 2 AA batteries or 6V DC power supply
* Shutdown mode: 10 minutes automatic shutdown or manual shutdown
