Overview

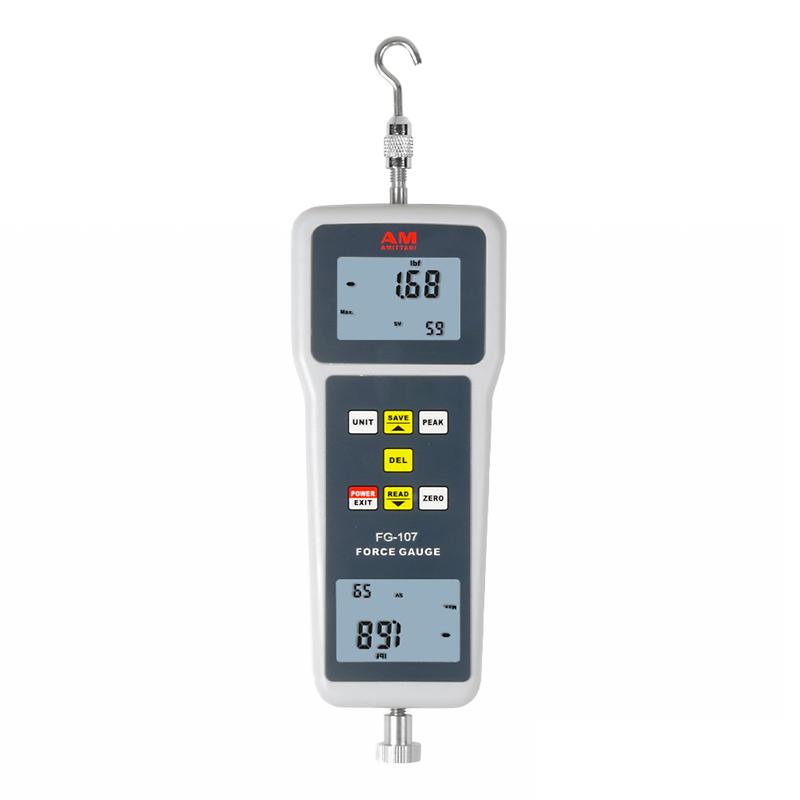

AMITTARI FG-107-2K digital display Force Gauge is a small, simple and multi-functional High Accuracy thrust and tensile testing instrument with the advantages of High Accuracy, easy operation and easy portability. The instrument has a peak hold test mode, which is convenient for testers to use, and can store test data and enter it into a computer for statistical analysis. It can be combined with various test benches and fixtures to form a testing machine for different purposes.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Data storage function, capable of storing 99 test values
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
8. Can be powered by alkaline battery; can also be connected to 6V DC power supply
Principle
The thrust or pull force received by the instrument is conducted through the sensing screw. The thrust defaults to a positive value, and the pull defaults to a negative value. The measurement data is displayed through the monitor, with a peak hold function to maintain the maximum measurement value, and 99 test data can be stored. The instrument can transfer the data to the computer for statistical analysis via USB data cable or Bluetooth.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Accuracy: 0.2 level, Indication Error ： +/- 0.2% FS (range) +/- 1 digital peak
Steps
1. Connect the corresponding probe attachment to the sensing screw
2. Press the power button to turn it on.
3. Use the Unit key to select the desired measurement unit
4. Carry out the push-pull force test, and the monitor displays the measurement value in real time
5. Press the peak button to maintain the peak display
6. Press the save button to save the current test data
7. Press the read key to view the stored data
8. After use, press the power button to shut down or wait for automatic shutdown.
Notice
* Allowable load is 150% F.s, there is a beep alarm when it exceeds 110% F.s
* operation temperature range 0~ 40ºC
* relative humidity should be less than 80%
* The working environment should be free of seismic sources and corrosive media
* Can be powered by 2 AA batteries or 6V DC power supply
* Automatic shutdown without operation for 10 minutes, or manual shutdown
