Overview

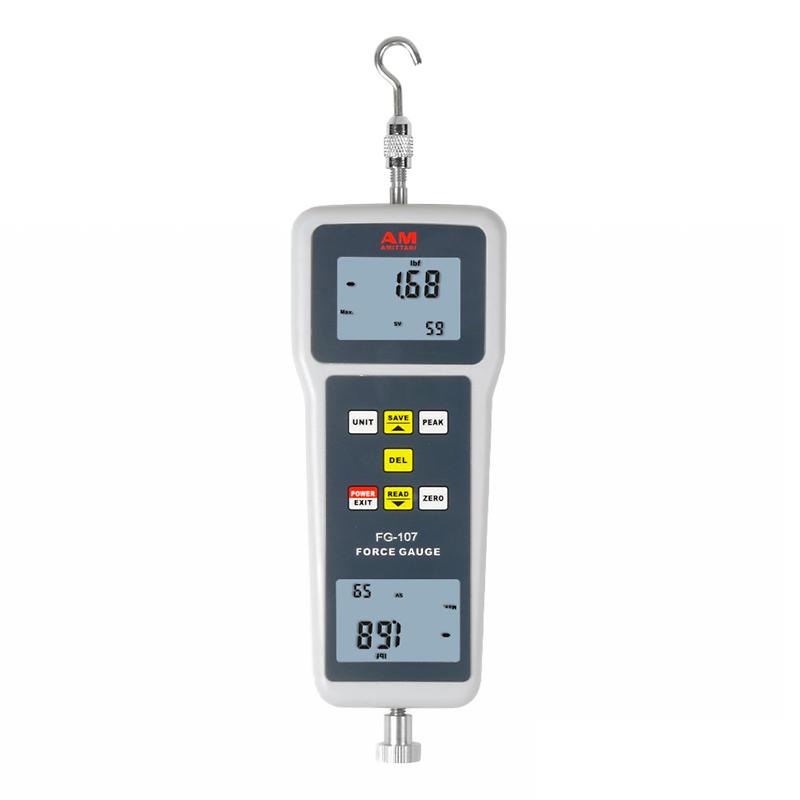

AMITTARI FG-107-10K digital display Force Gauge is a small, simple and multi-functional High Accuracy thrust and tensile testing instrument with the advantages of High Accuracy, easy operation and easy portability. With peak hold test mode, the test data can be stored and input to the computer for statistical analysis, and can be combined with various test benches and fixtures to form a testing machine for different purposes.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Data storage function, capable of storing 99 test values
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
8. Can be powered by alkaline battery; can also be connected to 6V DC power supply
Principle
Through the sensing screw conducts the thrust or pull force received by the tension meter, the thrust defaults to a positive value, and the tension defaults to a negative value. The measurement data is displayed through the monitor, with a peak hold function to record the maximum test value, and the data output can be analyzed by the computer through the data interface.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Accuracy Level 0.2, Indication Error +/- 0.2% FS (Range) +/- 1 Digital Peak
Steps
1. Select the measurement unit through the unit key
2. Zero point calibrating through the zero key
3. Set the peak hold mode through the peak key
Step 4 Perform a thrust or pull test
5. Store test data by saving key
6. View the stored data through the read key
7. Delete unwanted data with the delete key
8. Turn it on or off via the power button
Notice
* Allowable load is 150% F.s, there is a beep alarm when it exceeds 110% F.s
* operating temperature 0~ 40 ° C
* relative humidity should be less than 80%
* The working environment should be free of seismic sources and corrosive media
* Can be powered by 2 AA batteries or 6V DC power supply
* If there is no operation for 10 minutes, it will automatically shut down.
* Note that the thrust is positive and the tensile force is negative when measuring
