Overview

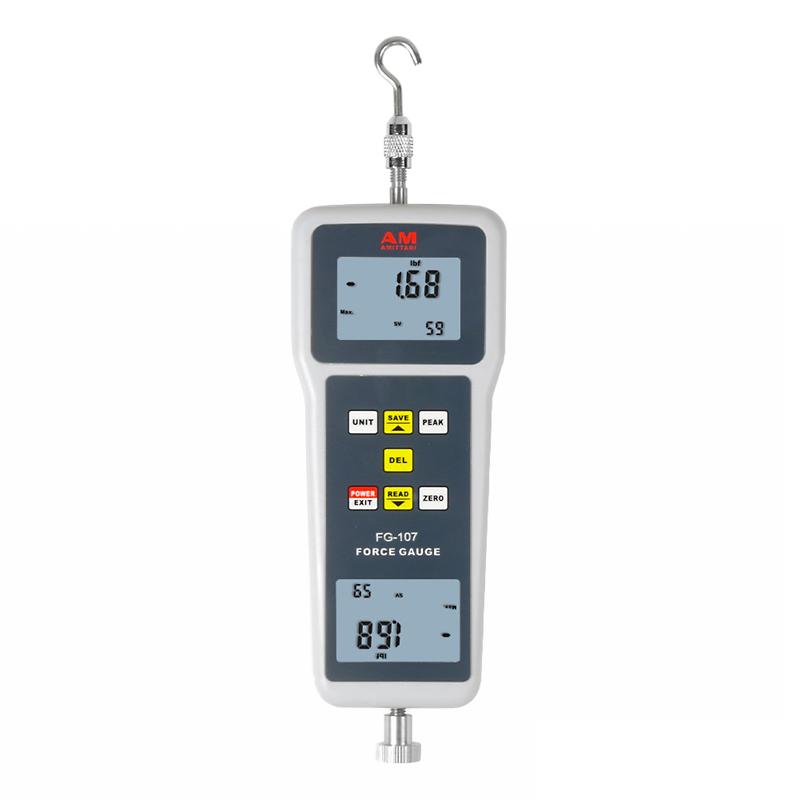

AMITTARI FG-107-20K Digital Display Force Gauge is a small, simple and multi-functional High Accuracy thrust and tension testing instrument with the advantages of High Accuracy, easy operation and easy portability. It has a peak hold test mode, which is convenient for testers to use, and can store test data and enter it into a computer for statistical analysis. Combination with various test benches and fixtures can form a testing machine for different purposes.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Data storage function, capable of storing 99 test values
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
8. Can be powered by alkaline battery; can also be connected to 6V DC power supply
Principle
The thrust or pull force received by the tensile gauge is conducted through the sensing screw. The thrust defaults to a positive value, and the tension defaults to a negative value. The measurement data is displayed through the monitor, with a peak hold function, and the test data can be stored and output to the computer for analysis via USB or Bluetooth.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Accuracy: 0.2 level, Indication Error ： +/- 0.2% FS (range) +/- 1 digital peak
Steps
1. Use the Unit key to select the measurement unit
2. Use the zero key to calibrate
3. Use the peak key to switch the peak hold mode
4. Use the save key to store test data
5. Use the read key to view the stored data
6. Use the delete key to delete data
7. Power Supply Key Switch Machine
Notice
* Allowable load: 150% F.s (over 110% F.s, there is a beep alarm)
* Permissible operating temperature: 0~ 40 ° C
* Allowable relative humidity: < 80%
* Working environment: no source and corrosive medium around
* Zero point should be calibrated before use
* Avoid using more than the maximum allowable load
* Pay attention to the battery level indicator and replace the battery in time
