Overview

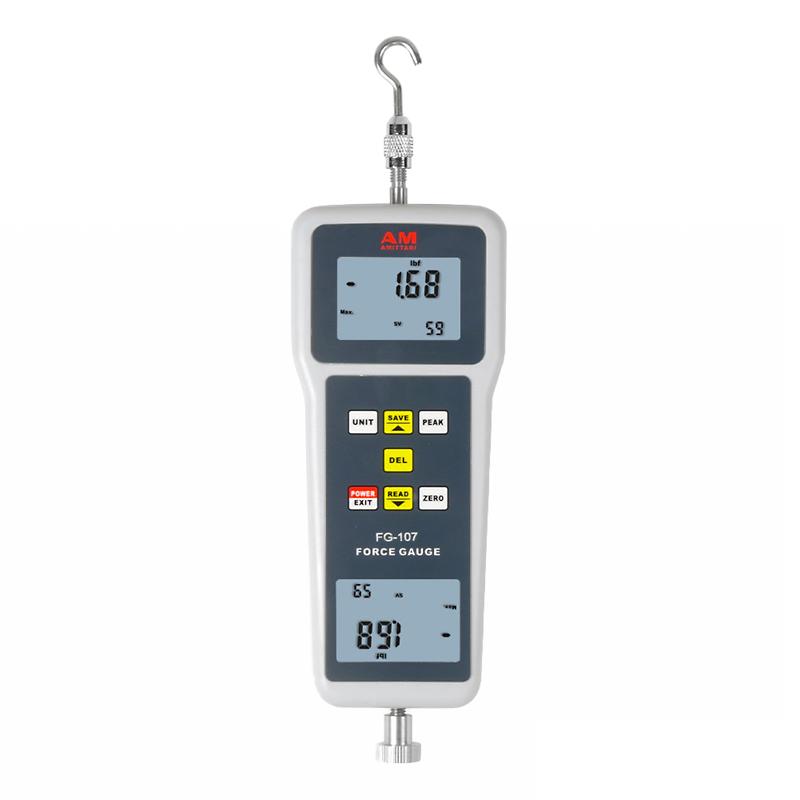

AMITTARI FG-107-100K digital display Force Gauge is a small, simple and multi-functional High Accuracy thrust and tensile testing instrument with the advantages of High Accuracy, easy operation and easy portability. With peak hold test mode, the test data can be stored and input to the computer for statistical analysis, and can be combined with various test benches and fixtures to form a testing machine for different purposes.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Data storage function, capable of storing 99 test values
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
8. Can be powered by alkaline battery; can also be connected to 6V DC power supply
Principle
Through the sensing screw conducts thrust or tension, the display displays measurement readings, measurement units and operation prompts, the operation button area completes all instrument operations, and the data cable interface is connected to the USB data cable with the data collection software to realize the data collection function.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 6V DC power supply
2. Press the power/return button to turn it on.
3. Use the Unit key to select the measurement unit
4. Connect the corresponding probe accessories
5. Perform a thrust or pull test
6. Use the peak key to maintain the peak display
7. Use the save key to store test data
8. Use the read key to view the stored data
9. Use the delete key to delete data
10. Manual shutdown or wait for automatic shutdown
Notice
* The working environment should be free of seismic sources and corrosive media
* Allowable operating temperature 0~ 40 ° C
* Allowable relative humidity < 80%
* Allowable load 150% F.s, buzzer alarm when exceeding 110% F.s
* Zero should be checked before use
* Pay attention to the measurement range to avoid overloading
Regularly check the battery level
* Keep instrument clean and drying
