Overview

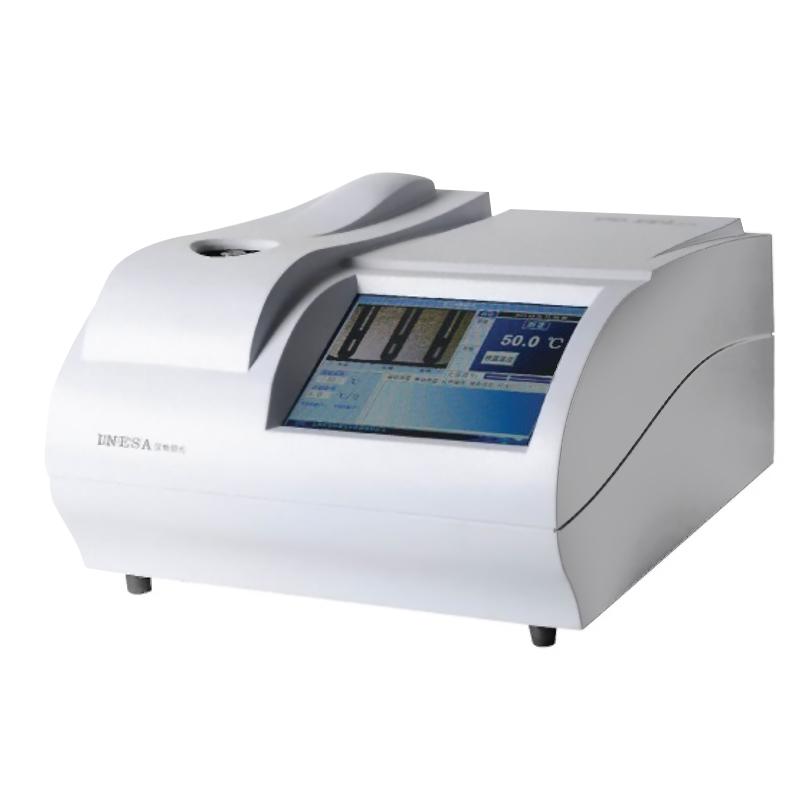

SGW-650 automatic image Melting point meter is INESA brand High Accuracy melting point measuring instrument, using high resolution digital camera and image processing technology implementation automatic detection, built-in WINDOWS operating system, support simultaneous measurement of five capillary tubing, with automatic measurement and manual visual measurement function.
Features
1. Adopt high-resolution digital camera, automatically detect through image processing and analysis, and have playback function.
2. Simultaneous determination of five capillary tubings.
3. Built-in WINDOWS operating system, easy to operate, intuitive and clear, can be connected to the printer.
4. The temperature control system uses Linearity's high platinum resistance as the detection element to improve the accuracy and reliability of the melting point.
5. With automatic measurement and manual visual measurement two functions, can verify the accuracy of the test.
6. Can measure dark samples or opaque samples, with multi-point calibrating function, test data can be saved, exported, uploaded.
7. Comply with the relevant requirements of the National Pharmacopoeia, GMP, GLP and FDA/21CFR 11, including user classification management, electronic signature, password management, network transmission, data protection and Traceability.
Principle
The instrument collects sample images through high-resolution digital cameras, automatically detects melting point changes through image processing and analysis, and the temperature control system uses platinum resistance detection elements to precisely control the heating process to achieve automatic or visual measurement.
Applications
Drug testing, chemical analysis, materials research
Standards
National Pharmacopoeia, GMP, GLP, FDA/21CFR 11
Steps
1. Prepare samples and capillary tubing.
2. Select automatic or visual measurement mode.
3. Set the heating rate and experimental parameters.
4. Start the measurement and observe the process.
5. Save or export test data.
Notice
• Power frequency within 220V +/- 22V range.
• Use capillary tubing of the specified size (outer diameter φ 1.4mm, inner diameter φ 1.0mm, length 90mm).
• The sample height is controlled within 3mm.
• Follow user hierarchical management and password management requirements.
• Periodic multi-point calibrating to ensure accuracy.
