Overview

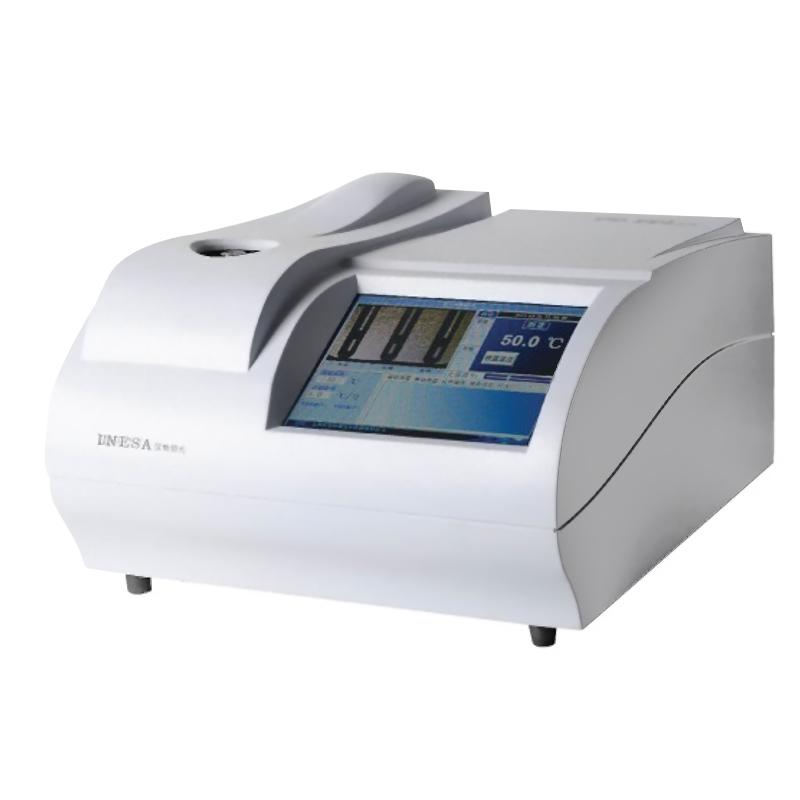

The SGW-630 automatic image Melting point meter is a High Accuracy instrument of the INESA brand. It uses a high-resolution digital camera and image processing technology for automatic detection and has playback function. The instrument can measure three capillary tubing at the same time, built-in WINDOWS operating system, simple and intuitive operation, supports printer connection, and is suitable for a variety of sample tests.
Features
1. Adopt high-resolution digital camera, automatically detect through image processing and analysis, and have playback function.
Simultaneous determination of three capillary tubings (SGW-630).
3. Built-in Windows operating system, simple, convenient, intuitive and clear, can be connected to the printer.
4. The temperature control system uses Linearity's high platinum resistance as the detection element, which improves the accuracy and reliability of the melting point.
5. With automatic measurement and manual visual measurement two functions, can verify the accuracy of the test.
6. Can measure dark samples or opaque samples, with multi-point calibrating function, test data can be saved, exported, uploaded.
7. Comply with the relevant requirements of the National Pharmacopoeia, GMP, GLP and FDA/21CFR 11, including user classification management, electronic signature, password management, network transmission, data protection and Traceability.
Principle
The instrument captures sample images through a high-resolution digital camera, automatically detects melting point changes through image processing and analysis, and supports playback function. The temperature control system uses platinum resistance detection elements to ensure linear heating and improve measurement accuracy and reliability.
Standards
National Pharmacopoeia, GMP, GLP, FDA/21CFR 11
Steps
1. Prepare samples and capillary tubing.
2. Set experimental parameters, such as the heating rate.
3. Start automatic measurement or manual visual measurement.
4. Monitor the testing process and use the playback function if necessary.
5. Save, export, or upload test data.
Notice
- Power frequency 220V +/- 22V, frequency 50Hz +/- 1Hz.
- Use the specified capillary tubing size: outer diameter φ 1.4mm, inner diameter φ 1.0mm, length 90mm.
The sample height should be controlled at 3mm.
- Follow user hierarchical management and password management requirements.
- Periodic multi-point calibrating to maintain accuracy.
