Overview

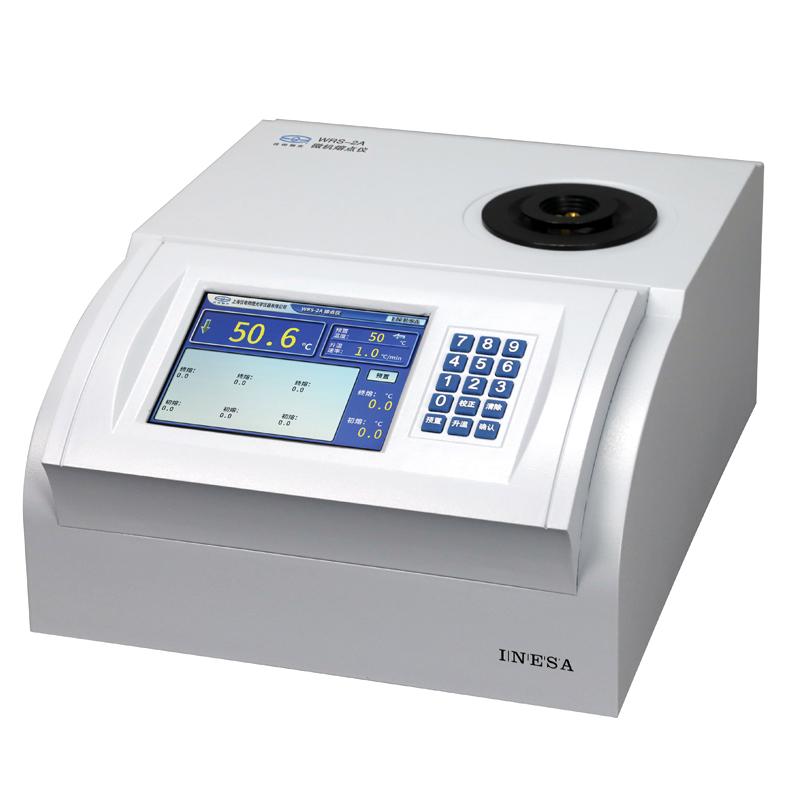

The INESA WRS-2A microcomputer Melting point meter is a precision instrument with photoelectric automatic detection technology, equipped with color LCD screen display and numeric keypad input, which can automatically measure and record melting point data. The instrument uses high Linearity platinum resistance temperature detection element and PID adjustment technology to ensure measurement accuracy and reliability, in line with Pharmacopoeia capillary tubing sample tube standards.
Features
1. Using photoelectric automatic detection and color LCD display
2. Numeric keyboard input, support single or three capillary tubing measurement
3. Automatically calculate the average melting point and display the initial and final melting values
4. Automatic recording of Melted Linear dispersion
5. High Linearity Platinum Resistance Temperature Detection Element
6. PID adjustment technology improves accuracy and reliability
7. With communication interface, support parameter printing and saving
8. Pharmacopoeial compliant capillary tubing
Principle
The instrument monitors the melting process of the sample through the photoelectric automatic detection system, uses the high Linearity platinum resistance to detect the temperature change in real time, and combines the PID adjustment technology to precisely control the heating rate. The measurement data is displayed on the color LCD screen, and the melting Linear dispersion is automatically recorded, and the initial melting, final melting and average value are finally calculated and displayed.
Applications
Drug testing, chemical material analysis, scientific research experiments
Standards
Pharmacopoeia regulations
Steps
1. Prepare capillary tubing samples to meet specifications
2. Load the sample into the designated location of the instrument
3. Set parameters through the numeric keypad
4. Select the heating rate and start the measurement
5. Observe the automatically displayed initial and final melting values
6. Record or save data through a communication interface
Notice
• Power frequency within 220V +/- 22V range
• Use capillary tubing of the specified size (outer diameter φ 1.4mm, inner diameter φ 1.0mm, length 90mm)
• The sample height is controlled at 3mm.
• Select the correct heating rate gear
Periodic multi-point calibrating to maintain accuracy
• Avoid operating outside the temperature range (RT +~ 300 ℃)
