Overview

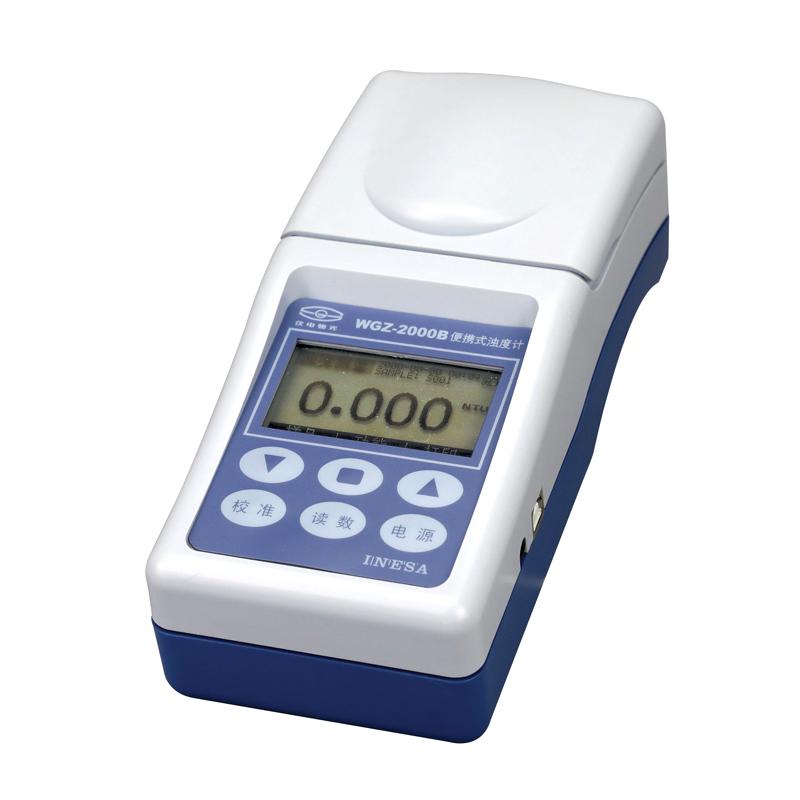

WGZ-200B Portable Turbidity Meter is an instrument of INESA brand for measuring the scattering and attenuation of light generated by insoluble particulate matter suspended in water or transparent liquid, and can characterize the content of these suspended particulate matter by Basis Weight. Widely used in water plants, food, chemical industry, power plant, metallurgy, environmental protection, beverage, wine and other industries, it is a commonly used laboratory instrument.
Features
1. Adopt microcomputer technology, low power consumption configuration, touch keyboard, backlit LCD display
2. LED Infrared source, battery powered and USB powered, with automatic power-off power saving function
3. Scattered-transmitted light measurement principle, ratio calibrated
4. Automatic range switching, support multi-point calibrating
5. With average measurement function; can store 2000 sets of test data, data can be saved, printed, uploaded
6. Time, date, sample name, user name setting function, in line with GLP specifications and ISO7027 industry standards
7. USB communication interface, support connecting to PC for data upload
Principle
The scattering and attenuation of the light generated by the suspended particulate matter were measured by irradiating the sample with the LED Infrared source using the scattering-transmission light measurement principle, and the ratio calibration method Basis Weight was used to characterize the turbidity.
Applications
Water plant, food, chemical industry, power plant, metallurgy, environmental protection, beverage, wine making
Standards
GLP specification, ISO7027 industry standard
Steps
1. Prepare the sample bottle (< unk > 25mm × 65mm) and the sample capacity is 20ml-30ml.
2. Turn on the instrument and use the touch keyboard to set parameters
3. Perform calibrating (support 4 point calibrating)
4. Sample measurement, automatic instrument switching range
5. Data can be saved, printed, or uploaded via USB
6. Turn off the power after use or use the automatic power-off function
Notice
• Make sure to use the specified sample bottle and capacity range
Periodically calibrated for accuracy
Avoid operating in extreme environments
• Clean the sample bottle after use
• Pay attention to the battery power, replace it in time or use USB power supply
