Overview

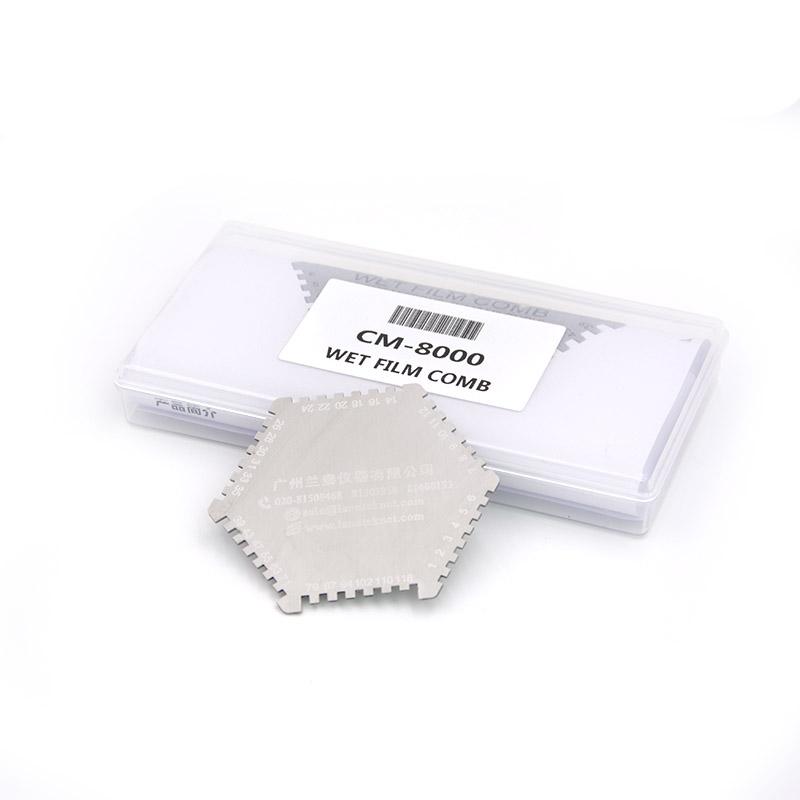

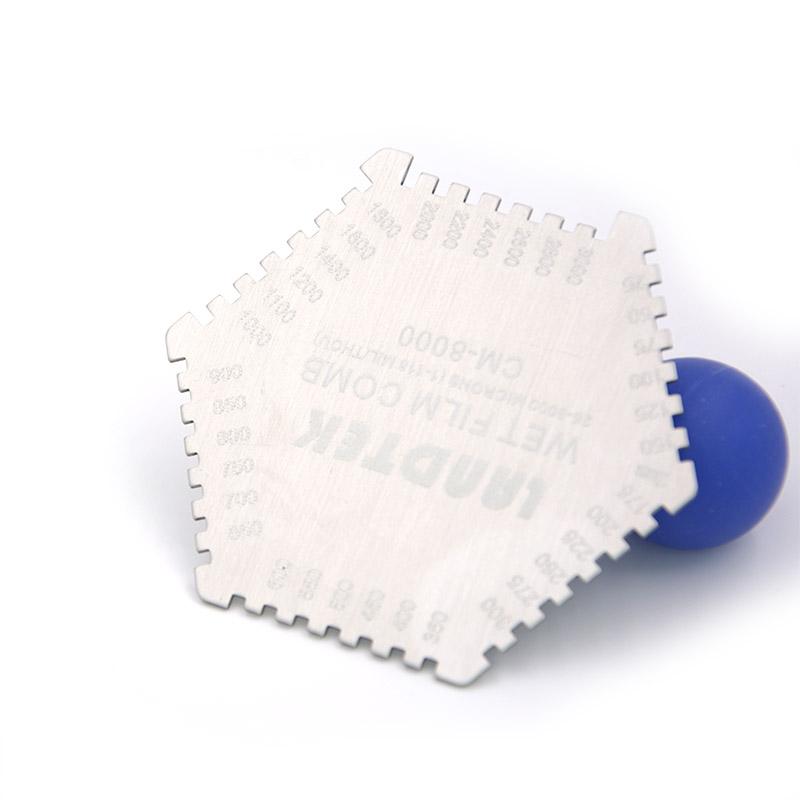

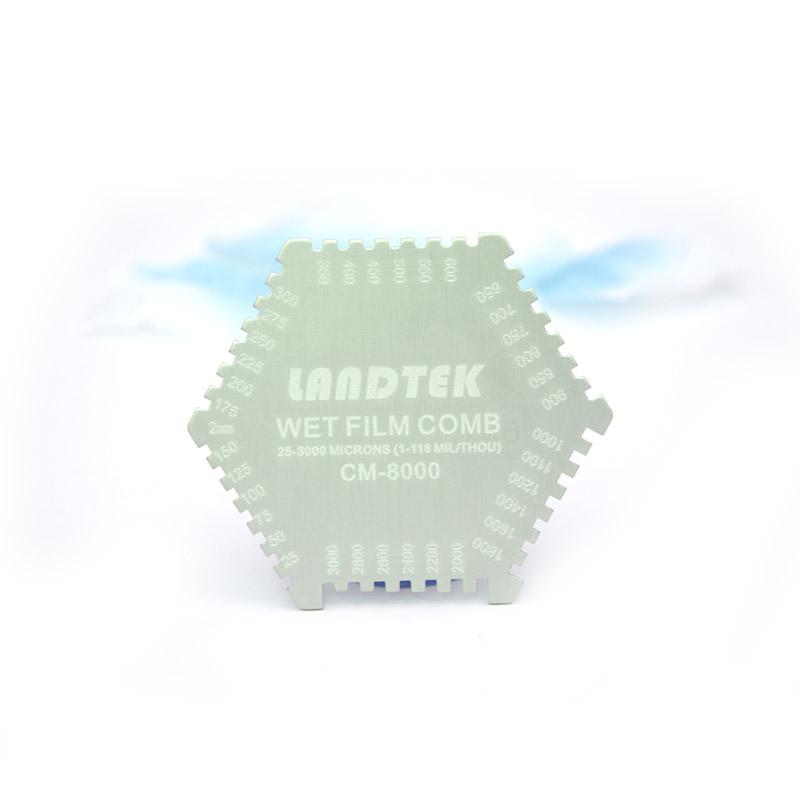

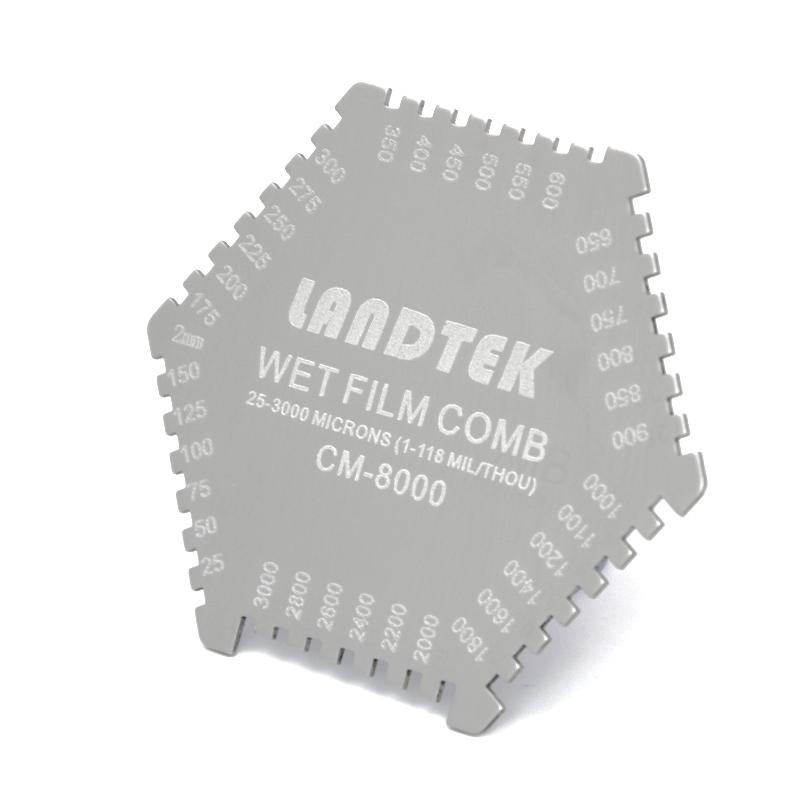

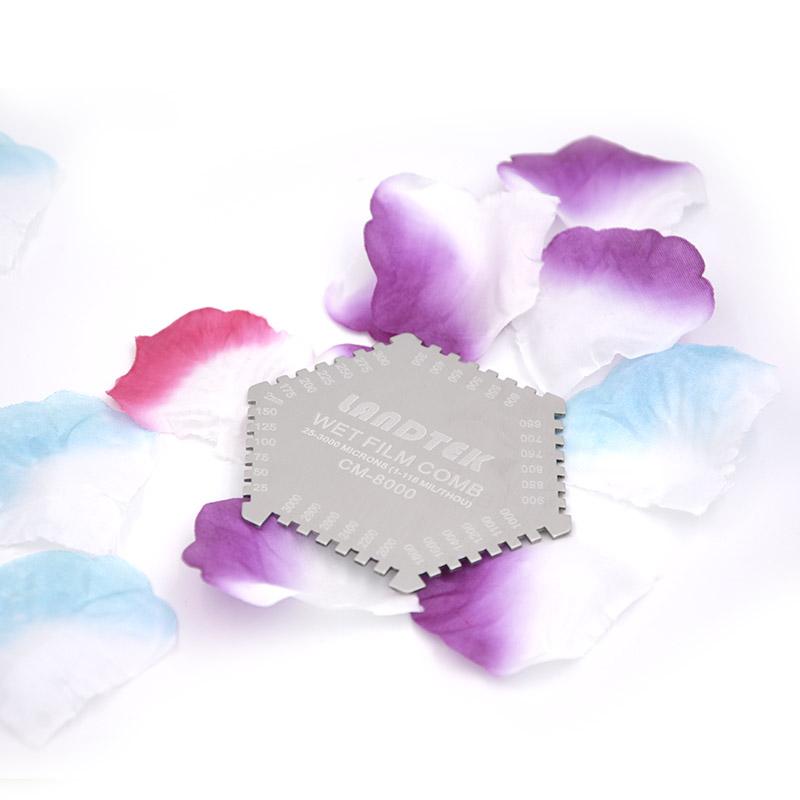

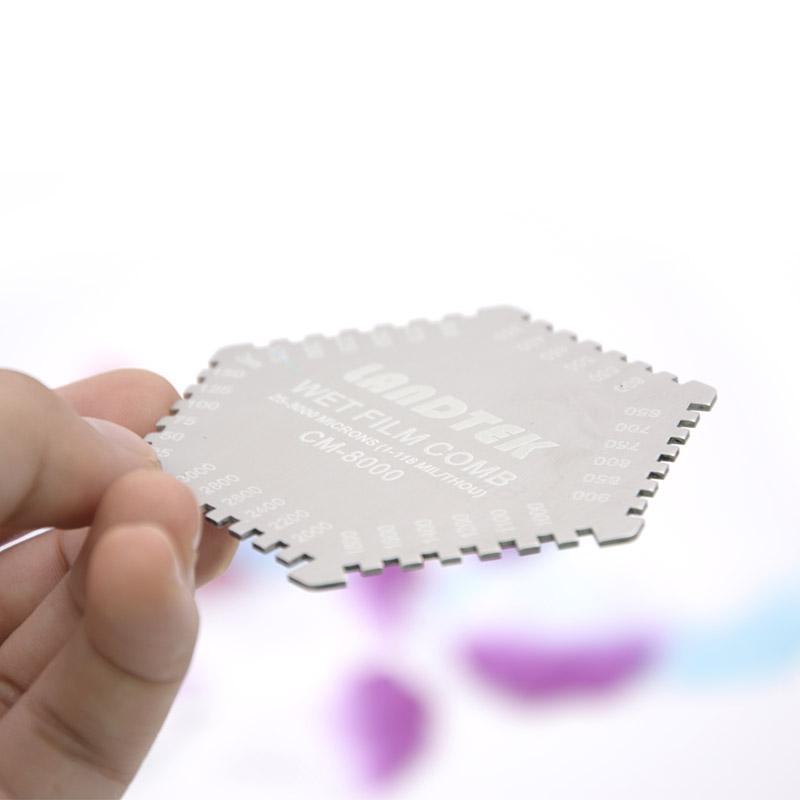

LANDTEK CM-8000 Coating thickness gauge is a hexagonal wet-film gauge, made of stainless steel, Measurement range is 25~ 3000μm. This product is used for wet paint film thickness measurement on the surface of new paint layers. It is suitable for chemical, Adhesive, architectural coatings and other fields. It can measure the Coating thickness of Paints, varnish and other Coatings during construction.
Features
1. Made of stainless steel, sturdy and durable
2. Measurement range, covering 25~ 3000μm
3. Hexagonal design for easy operation
4. Multiple incremental scales to meet different thickness measurement needs
5. The thickness of the measurement disc is only 1mm, with high accuracy
Principle
The wet-film gauge uses the contact between the step teeth and the wet paint film to measure the Coating thickness immediately by placing the measurement disc stably and vertically on the flat workpiece coating surface. The step teeth of different heights correspond to different thickness values, and the thickness is determined by observing which step teeth just contact the coating surface.
Applications
Chemical, Adhesive, architectural coatings, Paints measurement, varnish measurement
Standards
GB/T1764-79、GB/T134522-92、ISO2808-74
Steps
1. Coating immediately after construction
2. Place the wet film thickness gauge stably and vertically on the flat workpiece coating surface
3. Immediately read the measured Coating thickness value
Notice
• Coatings must be measured immediately after construction
• Thickness gauge should be placed firmly and vertically
• The coating surface of the workpiece must be flat
• Select the appropriate step teeth for reading according to different thickness ranges
• It should be cleaned and maintained in time after use
