Overview

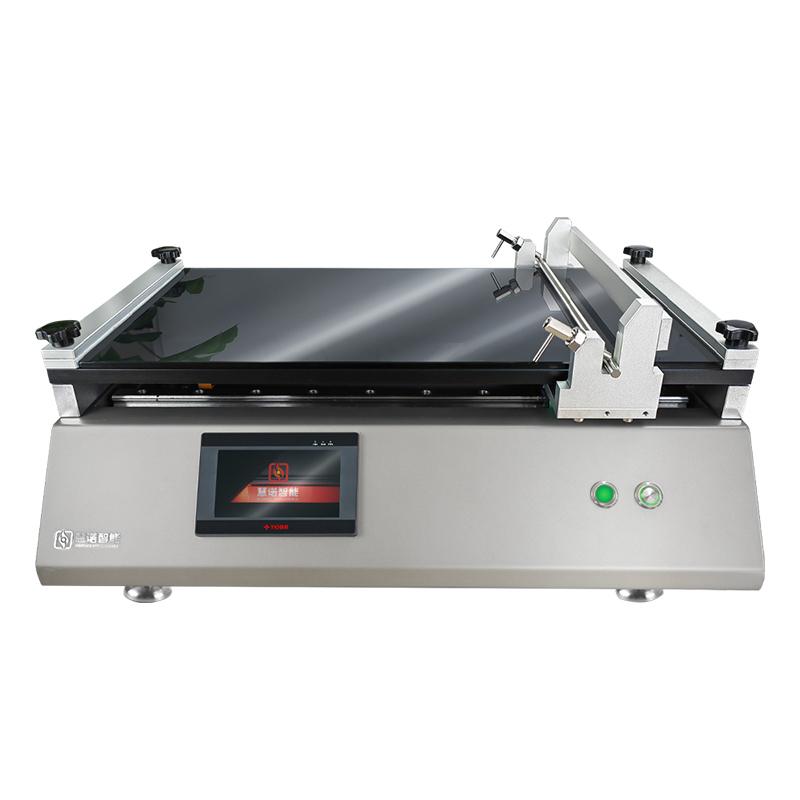

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a basic bar Coater. It adopts a new bar Installation method with speed control and application length adjustment functions. It is suitable for High Accuracy automatic film in laboratories and Moulding proofing in laboratories such as university research institutes, New material, and lithium batteries.
Features
1. Glass countertop is 3c certified national standard genuine full tempered Glass plate, high Smoothness, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. High Accuracy film applicator, original imported bar film uniform accuracy
3. Touchscreen control panel, easy to operate
4. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other film samples
Standards
3C certification national standard
Steps
1. Fix the substrate through the fixture
2. Set the application length and Spreader speed on the Touchscreen control panel
3. Select and install the appropriate bar film applicator
4. Start the device for automatic filming
Notice
• The substrate is fixed with a fixture to ensure stability
• The coating speed can be stepless in the range of 1~ 300mm/s
• The film thickness is controlled by the bar, and the appropriate bar needs to be selected.
• The coating table material can choose aluminum alloy or Glass table, if the specified material needs to be confirmed with customer service
• The effective coating area is 400 * 400mm, which can be customized according to needs
• Operating language, English version can be customized
• Optional features include drawdown blade, heating, Vacuum chuck
