Overview

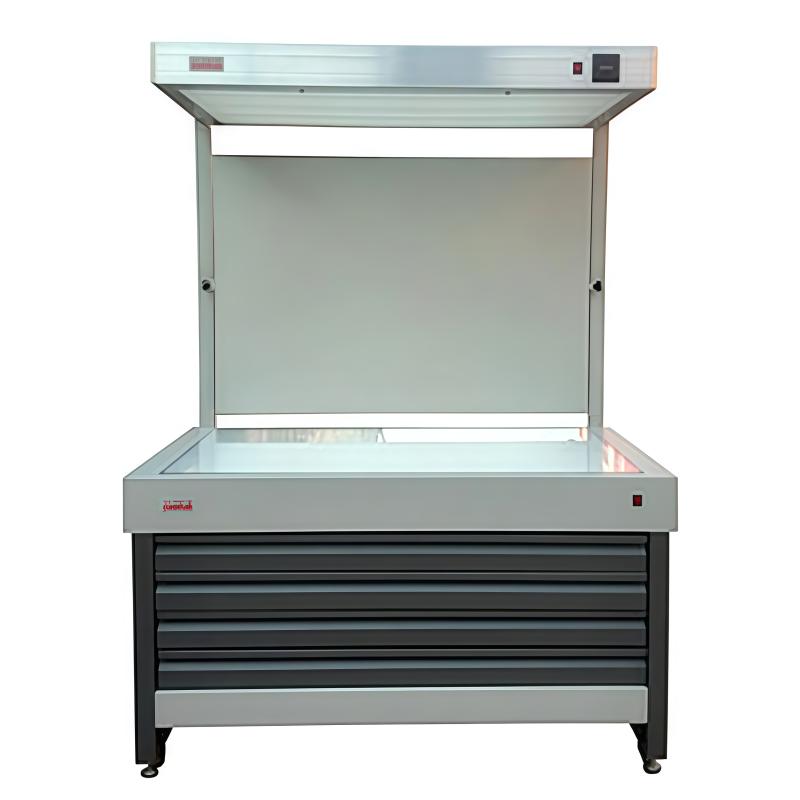

JINPUTE reflection deluxe standard illuminant table is a professional equipment for Color observation and evaluation, made of all-metal material, equipped with transmission and reflection Illuminant system, in line with ISO3664 international standards, suitable for printing, Spinning & weaving and other industries. High requirements for Color accuracy.
Features
1. All metal material, strong and durable structure
2. Integral sheet metal bracket structure, equipped with four large sample drawers
3. The vertical reflection plate can be swirled/spun, which is convenient for adjusting the observation angle
4. Transmission Illuminant adopts tempered Glass and acrylic uniform plate, the light is uniform and not dazzling
5. The bottom foot with roller is easy to move, and the support foot can be adjusted and fixed
6. Hanging Illuminant Aluminum alloy profile, streamlined design, beautiful
7. Imported reflector and uniform cover to ensure uniform lighting
8. High color rendering index CRI ≥ 95
9. Equipped with Illuminant Timer Function
Principle
The standard illuminant provides a standard lighting environment through two Illuminant systems of transmission and reflection. The transmission Illuminant produces a uniform ray of light through tempered Glass and acrylic homogenizers. The reflection Illuminant uses imported reflectors and homogenizers to ensure uniform lighting. Both Illuminants use Graphica imported printing presses to provide stable D65 (6500K) or D50 (5000K) standard color temperature, providing accurate lighting conditions for Color observation.
Applications
Printing, Spinning & weaving, Encasement, Design, Quality control
Standards
ISO3664 international standards
Steps
1. Move the device to the desired position and adjust the support foot to fix it.
2. Connect the power supply and turn on the Illuminant switch
3. Select transmission or reflection observation mode as needed
4. Adjust the angle of the vertical reflection plate to the appropriate observation position
5. Place the sample to be observed in the transmission area or reflection area
6. Use Illuminant Timer to record usage time
7. Turn off the power after the observation is completed
Notice
• Please ensure that the equipment is placed smoothly before use
• Avoid use in humid or dusty environments
• Regularly clean Transmission Glass and reflection plate surfaces
• Do not place heavy objects on the surface of the equipment
• Please put away the support feet when moving the device
• Please disconnect the power supply when replacing the lamp tube
• Please turn off the power if you do not use it for a long time
