Overview

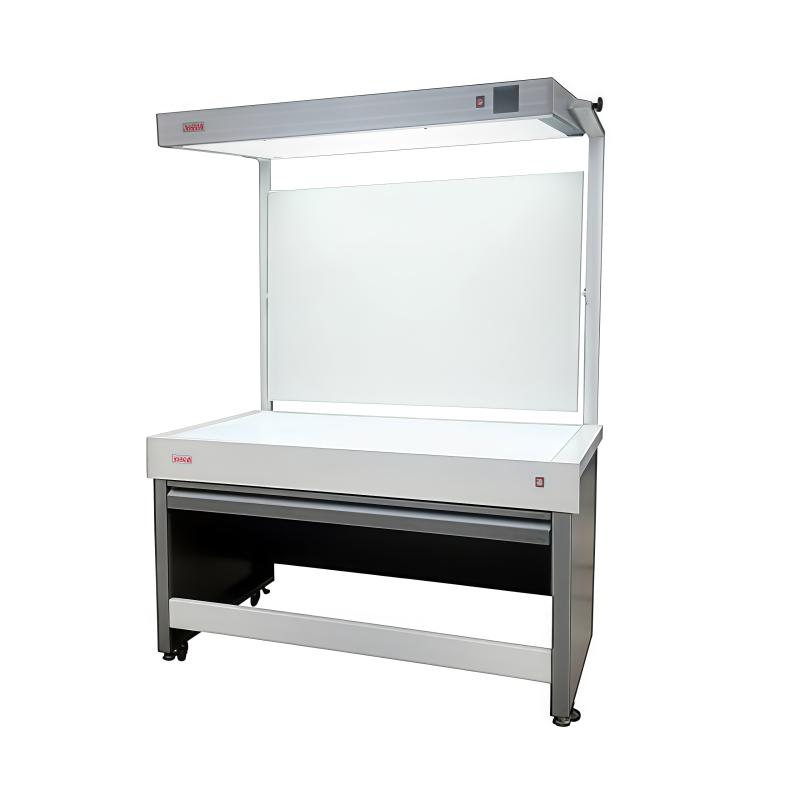

JINPUTE reflection economy standard illuminant table is an all-metal professional workbench, equipped with transmission and reflection Illuminant system, in line with ISO3664 international standards. The product adopts an integrated sheet metal bracket structure, including multiple large sample drawers, and is designed with a swirl/spin vertical reflection plate, which is convenient for users to adjust the observation angle. It is suitable for color evaluation work in printing, design and other fields.
Features
1. All metal material, strong and durable structure
2. Integral sheet metal bracket structure, equipped with four large sample drawers
3. Vertical reflection plate can be swirled/spun, easy to adjust the observation angle
4. Transmission Illuminant adopts tempered Glass and acrylic uniform plate, the light is uniform and soft
5. The bottom foot with roller design is easy to move, and the support foot can be adjusted and fixed
6. Hanging Illuminant with aluminum alloy profile, streamlined design beautiful
7. Imported reflector and uniform cover to ensure light uniformity
8. Equipped with Illuminant Timer Function
Principle
The standard illuminant provides a standard lighting environment through two Illuminant systems of reflection and transmission. The reflection Illuminant uses imported Graphica special lamps, with aluminum alloy profiles and reflectors to achieve uniform lighting; the transmission Illuminant uses tempered Glass and acrylic uniform plates to distribute the rays of light evenly. Both Illuminants comply with ISO3664 international standards and provide stable D65 or D50 color temperature lighting to ensure the accuracy of color evaluation.
Applications
Printing industry, color management, graphic design, product mass inspection
Standards
ISO3664 international standards
Steps
1. Move the workbench to the desired position and adjust the support foot to fix it
2. Connect the power supply and turn on the Illuminant switch
3. Select transmission or reflection observation mode as needed
4. Adjust the swirl/spin vertical reflection plate to the appropriate observation angle
5. Place the sample in the transmission area or reflection area for observation
6. Turn off the power after use
Notice
• Please ensure that the power connection is stable and reliable before use
• When adjusting the angle of the reflection plate, the action should be gentle to avoid excessive force
• Glass surface should be clean and dust-free during transmission observation
When moving the workbench, please pay attention to the level of the ground and avoid tipping over.
• Regularly check the service life of the lamp and replace the aging lamp in time
• Please use a dry soft cloth to wipe when cleaning to avoid the use of corrosive cleaners
