Overview

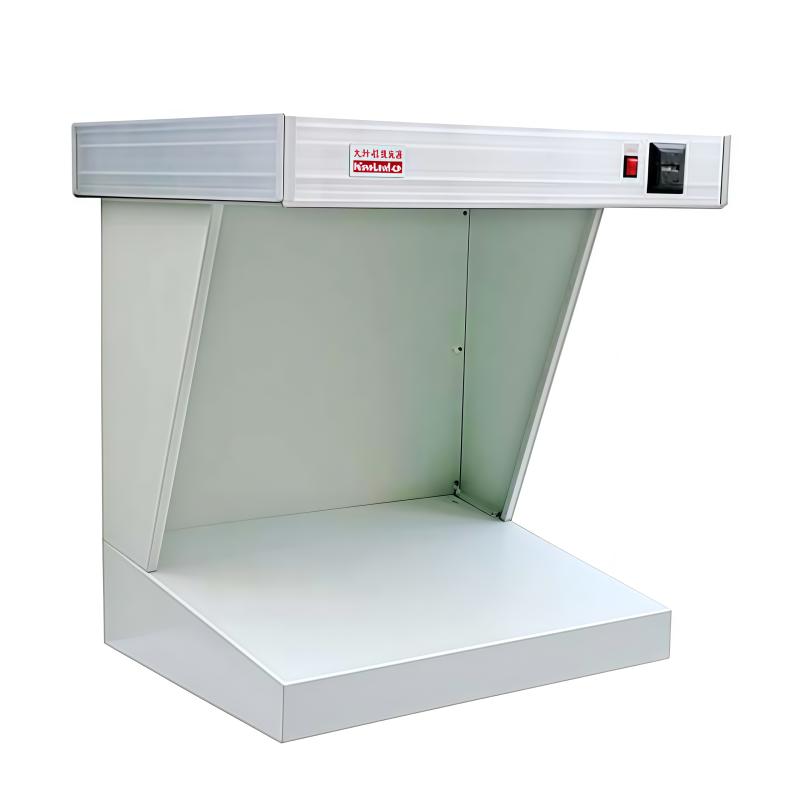

JINPUTE's new desktop standard illuminant table is a professional equipment that complies with ISO3664 international standards. It adopts all-metal material and streamlined design. It can be placed directly on the desktop as a viewing table. It provides D65 (6500K) or D50 (5000K) color temperature options. It is equipped with 4 18W Graphica imported printing press special lamps and high color rendering index (CRI ≥ 95), and built-in Illuminant Timer.
Features
1. All metal material, real material
2. The lamps are made of aluminum alloy profiles and imported aluminum surface reflectors, with uniform lighting and beautiful appearance
3. The pedestal is a whole sheet metal material, and the surface painting process can be directly placed on the desktop for use
4. In line with ISO3664 international standards
5. Available in D65 (6500K) or D50 (5000K) color temperature types
6. Use Graphica imported printing press special lamp
7. High color rendering index CRI ≥ 95
8. Equipped with 4 18W lamps and Illuminant Timers
Principle
The standard illuminant station emits a stable ray of light through 4 built-in 18W Graphica imported lamps, combined with imported aluminum reflectors to ensure uniform light distribution, providing ISO3664 standard D65 or D50 color temperature environment for accurate Color evaluation and visual inspection.
Applications
Printing, color management, visual inspection, product quality control
Standards
ISO3664 international standards
Steps
1. Place the standard illuminant table smoothly on the desktop
2. Connect the power supply and turn on the device switch.
3. Select D65 or D50 color temperature mode as required (if applicable)
4. Start the Illuminant Timer
5. Place the sample to be tested on a 730 * 530mm work surface for observation
6. Turn off the power and clean the countertop after use
Notice
Make sure the device is placed on a smooth table top to avoid tipping over
• Check whether the power connection is safe and reliable before use
• Avoid use in humid or dusty environments to extend equipment life
• Regularly clean the reflector and lamp to maintain light uniformity
• Be sure to use the specified model of Graphica imported lamp when replacing the lamp
• Pay attention to avoid direct vision when operating Illuminant to prevent eye discomfort
