Overview

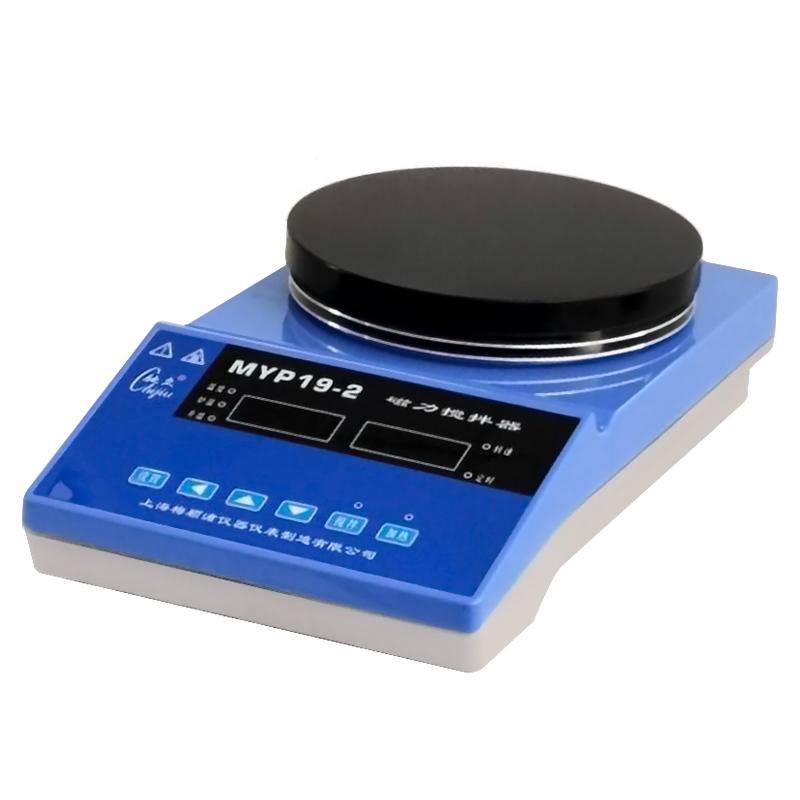

The CHIJIU MYP19-2 Magnetic Stirrer features an aluminum alloy die-cast housing, a high-power aluminum heating plate, a brushless DC motor, and a strong magnetic Stir magnet. The device is microprocessor-controlled to ensure stable rotational speed, offers two temperature control modes for precise temperature control, and features long-term timing for larger capacity heating Stir applications.
Features
1. Aluminum alloy die-cast shell, strong and durable structure
2. High-power aluminum heating plate with high heating efficiency
3. High-power brushless DC motor, running smoothly
4. Strong Magnetic Stirring Magnetic Steel, Stirring Strong
5. Microprocessor control, stable speed
6. Two temperature control modes to precisely control the heating temperature
7. Long-term timing function, the maximum timing is 9999 minutes
8. Suitable for Large Capacity Heating Stir, Max. Stirring Capacity 10L
Principle
The Magnetic Stirrer drives the strong magnetic Stir magnet swirl/spin through a microprocessor-controlled brushless DC motor, generating a magnetic field to drive the Stir to Stir in the container. At the same time, the high-power aluminum heating plate provides heating function, and the temperature is monitored in real time through the PT100 temperature transducer to achieve accurate temperature control. Users can set speed, temperature and time parameters through the LED display interface.
Applications
Laboratory, Chemical, Pharmaceutical, Food processing, Education and research
Steps
1. Connect the device to an AC220V power supply
2. Stir container on the heating plate
3. Set stirring speed as needed (50-1500rpm range)
4. Select the temperature control mode and set the heating temperature (adjustable up to 350 ° C)
5. Set the timing time (up to 9999 minutes)
6. Start the Equipment to Stir and Heat
7. Monitor operating status through LED display
Notice
• Power frequency AC220V +/- 10% before use
• Max. Capacity of stirring not more than 10L
• Heating temperature must not exceed 350 ° C
• The stirring speed should be adjusted within the range of 50-1500rpm
• Regularly check the operating status of the equipment
• Stir with the right type, maximum length 80mm
• Pay attention to the weight of the equipment 4.8kg, be careful when handling
