Overview

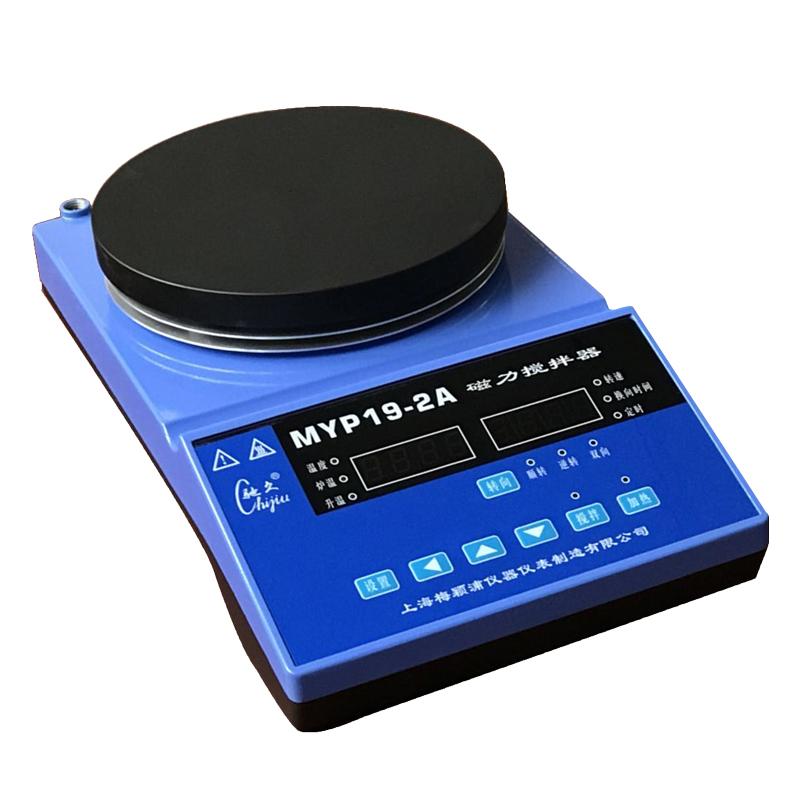

CHIJIU MYP19-2A Magnetic Stirrer is a heating magnetic Stir device with an aluminum alloy die-cast shell, equipped with a high-power aluminum heating plate and a brushless DC motor, with a strong magnetic Stir function. The product realizes stable speed and multiple temperature control modes through microprocessor control, can precisely control the heating temperature, and supports forward and reverse Stir function, allowing forward, reverse or bi-directional Stir, and the commutation time is adjustable.
Features
1. Aluminum alloy die-cast shell, sturdy and durable
2. High-power aluminum heating plate with high heating efficiency
3. High-power brushless DC motor, running smoothly
4. Strong Magnetic Stirring Magnetic Steel, Stirring Strong
5. Microprocessor control, stable speed
6. Multiple temperature control modes, accurate temperature control
7. Forward and reverse Stir function, support forward, reverse and bi-directional Stir
8. Adjustable commutation time, flexible operation
Principle
The Magnetic Stirrer drives the strong magnetic Stir magnet swirl/spin through the microprocessor-controlled brushless DC motor to generate a magnetic field to drive the Stir in the container. The heating plate provides a heat source, and the temperature is monitored in real time through the PT100 temperature transducer. The microprocessor precisely adjusts the heating power and stirring speed to achieve stable Stir and temperature control. The forward and reverse Stir function is realized by the motor commutation, and the commutation time can be adjusted to suit different Stir needs.
Applications
Laboratory Stirring, Chemical Synthesis, Biopharmaceutical, Materials Research, Food Testing
Steps
1. Connect the device to AC220V +/- 10% power supply
2. Place the Stir container in the heating area, making sure the Stir is in the center
3. Set stirring speed (50~ 1500rpm) through control panel
4. Select the temperature control mode and set the target temperature (adjustable within a maximum of 350 ° C)
5. Stir direction (forward and reverse) and commutation time as needed
6. Start the device and monitor the LED display
7. Turn off the power after use and clean the equipment
Notice
• Power frequency AC220V +/- 10% to avoid overvoltage or undervoltage
• Max. Capacity of stirring does not exceed 10L to prevent overload
• The size of the heating zone is φ 200mm, please use a matching container
• The maximum furnace temperature should not exceed 350 ° C to avoid over-temperature damage
• The stirring speed setting should be within the range of 50~ 1500rpm
• Regularly check the accuracy of the temperature transducer PT100
Equipment weight 4.8kg, pay attention to safety when handling
• Stir maximum length is 80mm, use suitable Stir
• Temperature control accuracy of +/- 0.5 ℃, pay attention to environmental factors
• Timer Range up to 9999min, set the time reasonably
• Stir in positive and negative directions with caution when adjusting the commutation time
• Clean in time after use and keep the equipment drying
