Overview

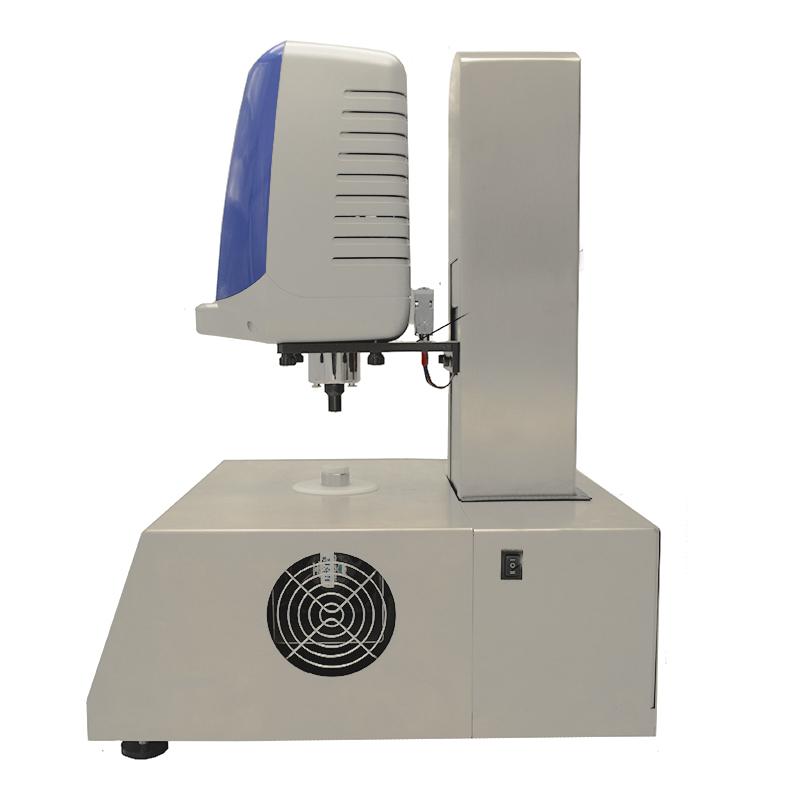

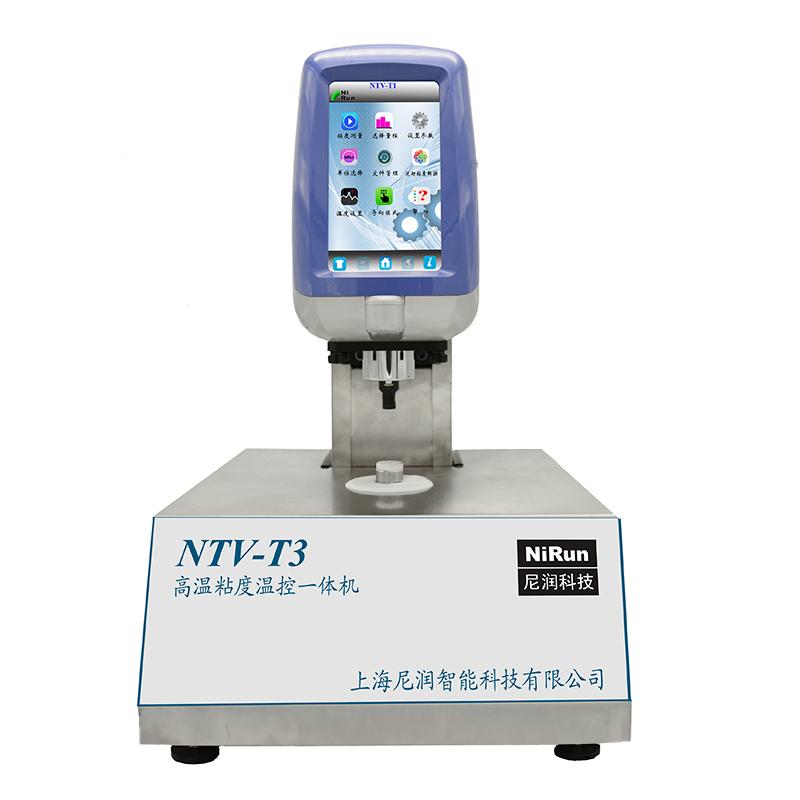

The NIRUN NTV-T3R viscosity temperature controller is a device that integrates viscosity measurement and temperature precision control, breaking through the split machine mode composed of thermostatic sink, Viscosity-Tester and small sample adapter on the market.
Features
1. The all-in-one system includes a 7-inch wide Touchscreen host, a small sample adapter (SSR) cylindrical sample sleeve, an SC4 rotor and a temperature controller;
2. The amount of the test sample is only 2 to 16ml, and the cylindrical geometry of the SC4 rotor ensures accurate viscosity measurement;
3. Electric control lifting, accurate positioning;
4. Small sample cylinders are easy to load and unload, making them easy to clean.
5. The small sample cartridge is closely connected with the temperature controller to achieve accurate sample thermostatic;
6. Stirring the rotor with a small number of samples minimizes temperature inhomogeneity and shortens the thermostatic time;
7. Comes with password protection temperature and viscosity correction coefficient, allowing users to correct themselves under the premise of reliable data;
8. Support stepless speed measurement viscosity, input any speed to directly display the full scale of each rotor, easy to select test conditions;
9. Support external U disk data storage, provide single point, continuous, timing three storage methods.
Principle
The viscosity temperature controller performs viscosity measurement through a small sample adapter (SSR) and SC4 rotor, while the temperature controller precisely controls the sample temperature. The rotor swirls/spins in the sample, combined with an electric lift system for precise positioning and Stir, ensuring temperature uniformity and fast thermostatic.
Applications
Viscosity measurement, temperature control, laboratory analysis
Steps
1. Connect the power supply and turn it on;
2. Install a small sample cartridge and SC4 rotor;
3. Set the speed and temperature parameters through Touchscreen;
4. Start measurement, the system automatically lifts and positions;
5. Select the data storage method (single point, continuous or timed);
6. After the measurement is completed, remove the sample cartridge for cleaning.
Notice
• Power frequency within the range of AC100-240V;
• The operating temperature shall not exceed the allowable operation temperature range (indoor temperature plus 10~ 250 ° C);
• The sample dosage is controlled between 2 and 16ml;
• Check whether the rotor is firmly installed before use;
• Regularly clean the sample cartridge and rotor to maintain accuracy;
• Ensure that the connection of the U disk is stable when storing data.
