Overview

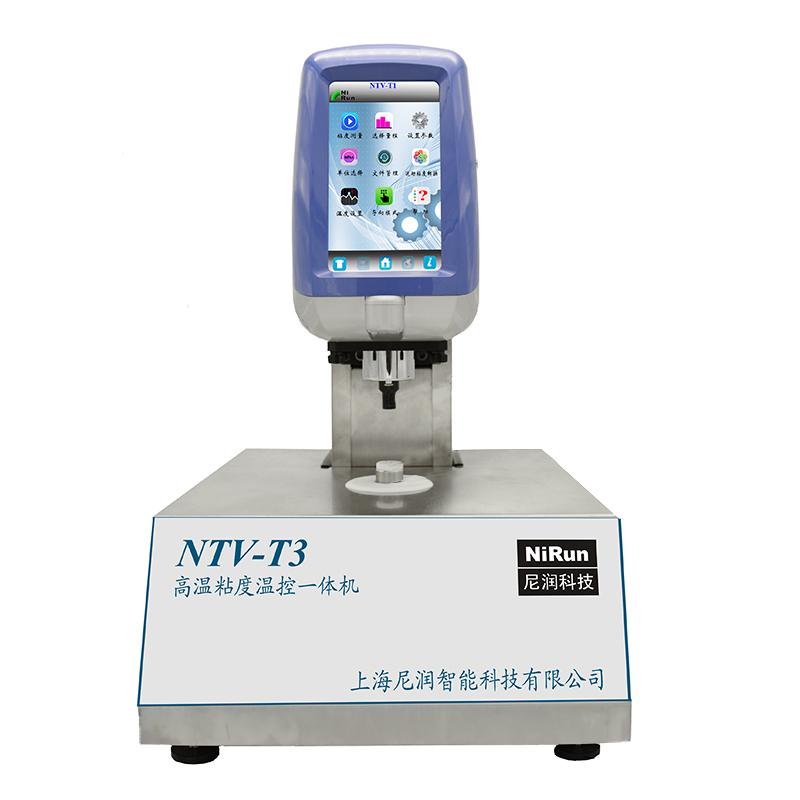

Viscosity temperature control machine is a comprehensive viscosity measurement, temperature precision control in one of the equipment, breaking through the existing market with thermostatic sink, Viscosity-Tester, small sample adapter composed of split machine mode.
Features
1. The all-in-one viscosity measurement system is composed of a 7-inch wide Touchscreen host, a small sample adapter (SSR) cylindrical sample sleeve and SC4 rotor and temperature controller; 2. The amount of the test sample only needs 2 to 16ml, and the SC4 rotor cylindrical geometry provides accurate viscosity measurement; 3. Electric control lifting, precise positioning; 4. Small sample cylinder is easy to load and unload, easy to clean; 5. Small sample cylinder and temperature controller are closely connected to accurately perform sample thermostatic; 6. Stir rotor action combined with a small amount of samples to reduce temperature unevenness and shorten thermostatic time; 7. Comes with password protection temperature and viscosity correction coefficient, allowing users to correct themselves; 8. Support stepless speed measurement viscosity, input speed directly reflects the full scale of each rotor; 9. Support external U disk data storage, single point, continuous, timing three storage options.
Principle
Viscosity temperature control machine through the SC4 rotor swirl/spin measurement viscosity in the sample, while the temperature control instrument precisely controls the sample temperature. Stir action combined with a small amount of sample to reduce temperature inhomogeneity, achieving rapid thermostatic.
Applications
Viscosity measurement, temperature control
Steps
1. Connect the power supply and turn it on; 2. Install a small sample adapter and SC4 rotor; 3. Add 2 to 16ml of sample; 4. Set the temperature and speed parameters; 5. Start the measurement, and the system will automatically lift and position; 6. Select the data saving method (single point, continuous or timed); 7. After the measurement is completed, remove the sample cartridge for cleaning.
Notice
* Ensure that the Power frequency is within the range of AC100-240V; * The sample dosage is controlled at 2 to 16ml; * The operating temperature range is indoor temperature plus 10~ 250 ° C; * Clean the sample cartridge in time after use; * Avoid operating beyond the allowable operation temperature range; * Ensure that the U disk is compatible when storing data.
