NIRUN CAP-01 Rotor, Cone Plate RheoMeter Shear Rate 13.3N Sample Size 67 μL

Name: NIRUN CAP-01 Rotor, Cone Plate RheoMeter Shear Rate 13.3N Sample Size 67 μL
Brand: NiRun
SKU: NB028157
Price: 675.0 USD
Availability: InStock

$ 675.00Ex works

The shear rate is 13.3N, the sample volume is only 67 μL, the applicable viscosity range is 20~ 37500mPa · s, and the accuracy is +/- 2% F. S, which is suitable for a variety of fluid tests.

Model

CAP-01

Get Quote

Category : Rheometer

Brand : NiRun

SKU : NB028157

Service :The delivery and service By NBCLab.Com

Overview

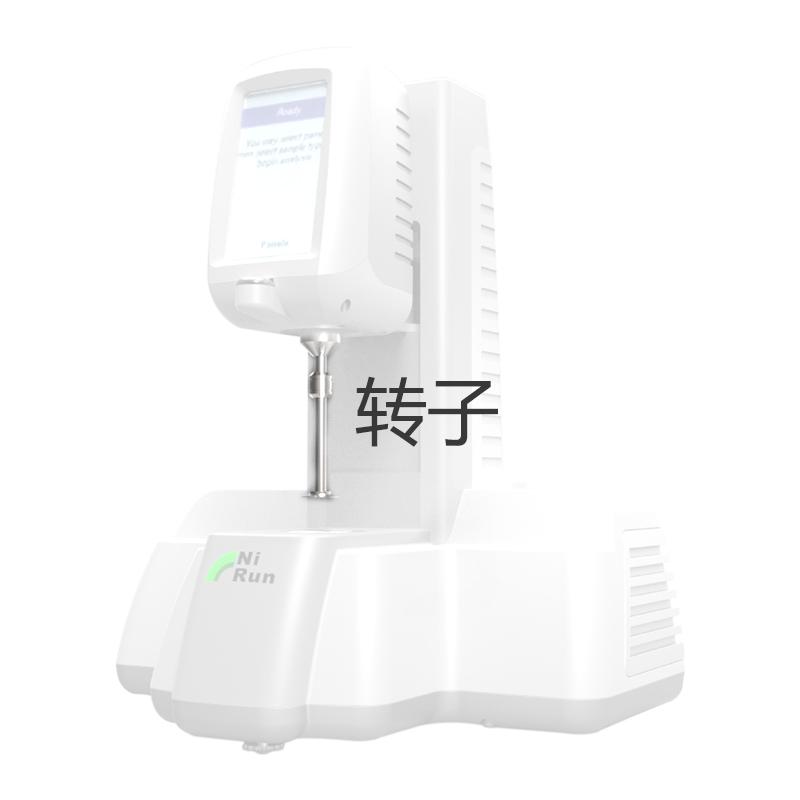

The NIRUN CAP-01 cone plate Rheometer is an optional CAP rotor for the NTV-CAP3H cone plate Rheometer with a shear rate of 13.3N, a sample volume of 67 μL, and a suitable viscosity range of 20~ 37500 mPa · s.

Features

1. Wide range of applicable viscosity: 20~ 37500mPa · s 2. Small sample size: only 67 μL required 3. Steady shear rate: 13.3N 4. Wide speed range: 5~ 1000rpm 5. High measurement accuracy: +/- 2% F.S

Principle

As a rotor component of the cone-plate Rheometer, a stable shear field is generated through the cone-plate geometry, and a shear force is applied to the sample at a set rotational speed to measure the viscosity characteristics of the fluid.

Applications

Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials

Steps

1. Select the CAP-01 rotor to mount on the Rheometer 2. Prepare 67 μL of sample volume 3. Set the required speed parameters (5~ 1000rpm) 4. Start measuring and recording viscosity data 5. Clean the rotor for next use

measurement Range
20-37500 mPa·s
Rotor speed
5-1000 rpm
shear rate
13.3 N
measurement accuracy
±2%（F.S）
sample Size
67 μL
