Overview

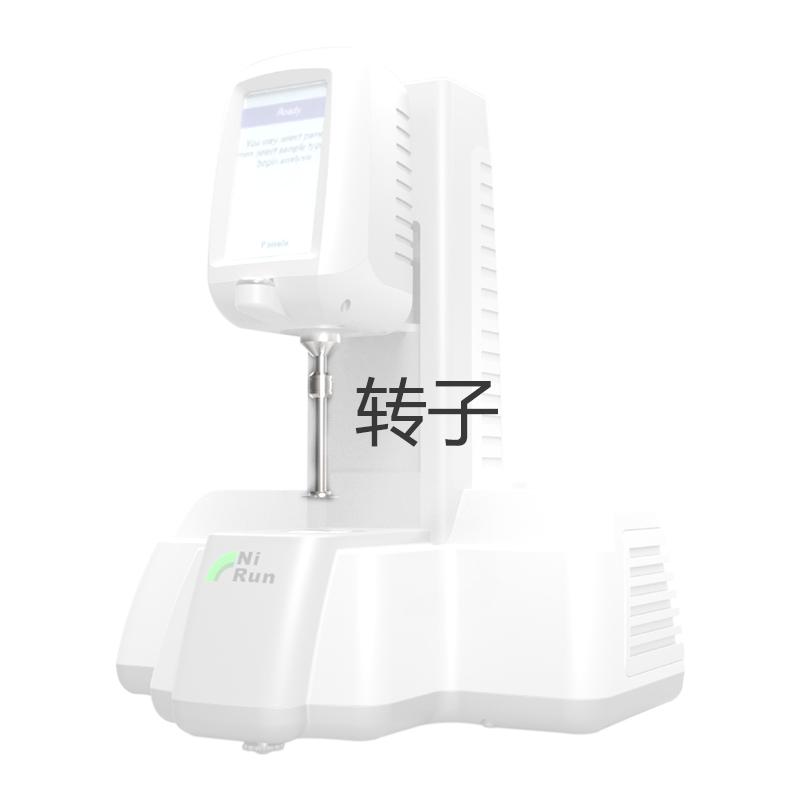

The NIRUN CAP-02 is an optional rotor for the NTV-CAP3H cone plate Rheometer, model CAP-02, suitable for medium to high viscosity fluid measurement. The rotor has a shear rate of 13.3N, a sample size of 38 μL, and a viscosity measurement range of 37 to 75,000 mPa · s.
Features
The shear rate is fixed at 13.3N.
2. The sample size is only 38 μL
3. Wide viscosity measurement range, covering 37~ 75000mPa · s
4. Up to +/- 2% F.S measurement accuracy
5. Speed range 5~ 1000rpm
Principle
As the rotor member of the cone plate Rheometer, CAP-02 by swirling/spinning shearing force acting on the sample, the sample in response to a specific shear rate to measure viscosity characteristics.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Prepare 38 μL of sample
2. Place the sample in the measurement position
3. Set Rotor speed in the range of 5~ 1000rpm
4. Start the measurement program
5. Read viscosity measurement results
Notice
The sample size must be precisely controlled within 38 μL
• Ensure that the sample viscosity is within the range of 37~ 75000mPa · s
• The speed setting should be between 5 and 1000rpm
Periodically calibrated to ensure measurement accuracy of +/- 2% F.S
• Clean the rotor surface before and after use
