NIRUN CAP-04 Rotor, Cone Plate RheoMeter CAP Rotor, Shear Rate 3.3N Sample Size 134 μL

Name: NIRUN CAP-04 Rotor, Cone Plate RheoMeter CAP Rotor, Shear Rate 3.3N Sample Size 134 μL
Brand: NiRun
SKU: NB028160
Price: 675.0 USD
Availability: InStock

$ 675.00Ex works

The shear rate is 3.3N, the sample volume is 134μL, the applicable viscosity range is 150~ 300000mPa · s, and the measurement accuracy is +/- 2% F. S, which is suitable for testing various fluid samples.

Model

CAP-04

Get Quote

Category : Rheometer

Brand : NiRun

SKU : NB028160

Service :The delivery and service By NBCLab.Com

Overview

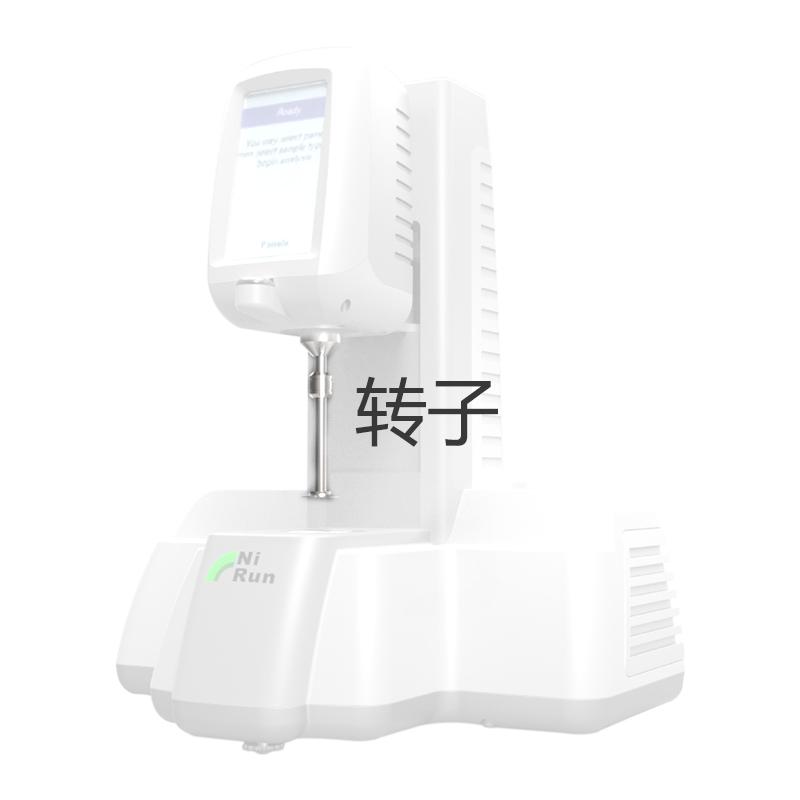

NIRUN CAP-04 is an optional rotor for the NTV-CAP3H cone plate Rheometer with a sample size of 134 μL and a suitable viscosity range of 150 to 300000 mPa · s.

Features

1. Wide range of applicable viscosity: 150~ 300000mPa · s 2. Small sample size: only 134 μL required 3. Shear rate: 3.3N 4. Wide speed range: 5~ 1000rpm 5. High measurement accuracy: +/- 2% F.S

Principle

As the rotor assembly of the cone plate Rheometer, the shear force is generated by swirl/spin, and the viscosity characteristics of the fluid at different shear rates are measured.

Applications

Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials

Steps

1. Select CAP-04 Rotor to Mount on NTV-CAP3H Cone Plate Rheometer 2. Prepare 134 μL of sample 3. Set the speed range to 5~ 1000rpm 4. Start measuring viscosity 5. Read and record measurement results

measurement Range
150~300000 mPa·s
Rotor speed
5-1000 rpm
shear rate
3.3 N
measurement accuracy
±2%（F.S）
sample Size
134 μL

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
