Overview

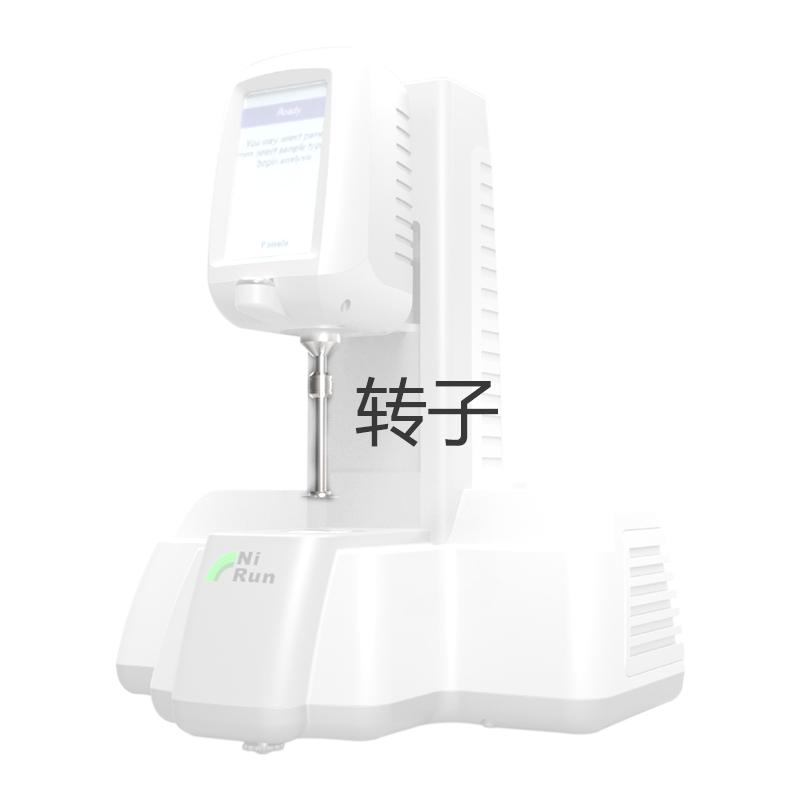

The NIRUN CAP-05 cone plate Rheometer is an optional CAP rotor for the NTV-CAP3H cone plate Rheometer with a viscosity range of 300 to 600000 mPa · s, a sample volume of 67 μL, and a shear rate of 3.3N.
Features
1. The shear rate is 3.3N
2. The sample size is only 67 μL
3. Wide range of viscosity, covering 300~ 600000mPa · s
4. High measurement accuracy, up to +/- 2% F.S
5. Rotor speed range is wide, 5~ 1000rpm
Principle
Rheometer rotor as a cone plate, by swirl/spin shear force acting on the sample, the measurement of fluid viscosity characteristics at different shear rates.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; high viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, caramel, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Prepare the sample and ensure that the sample volume is 67 μL
2. Mounting the Rotor to the NTV-CAP3H Cone Plate Rheometer
3. Set the required speed range (5~ 1000rpm)
4. Start measurement and record viscosity data
5. Analysis based on measurement results
Notice
The sample size must be precisely controlled within 67 μL
• Ensure that the rotor is installed correctly to avoid measurement errors
• The speed setting should be within the range of 5~ 1000rpm
• Before measurement, confirm that the sample viscosity is within the applicable range of 300~ 600000mPa · s
Periodically calibrate instruments to ensure measurement accuracy of +/- 2% F.S
