Overview

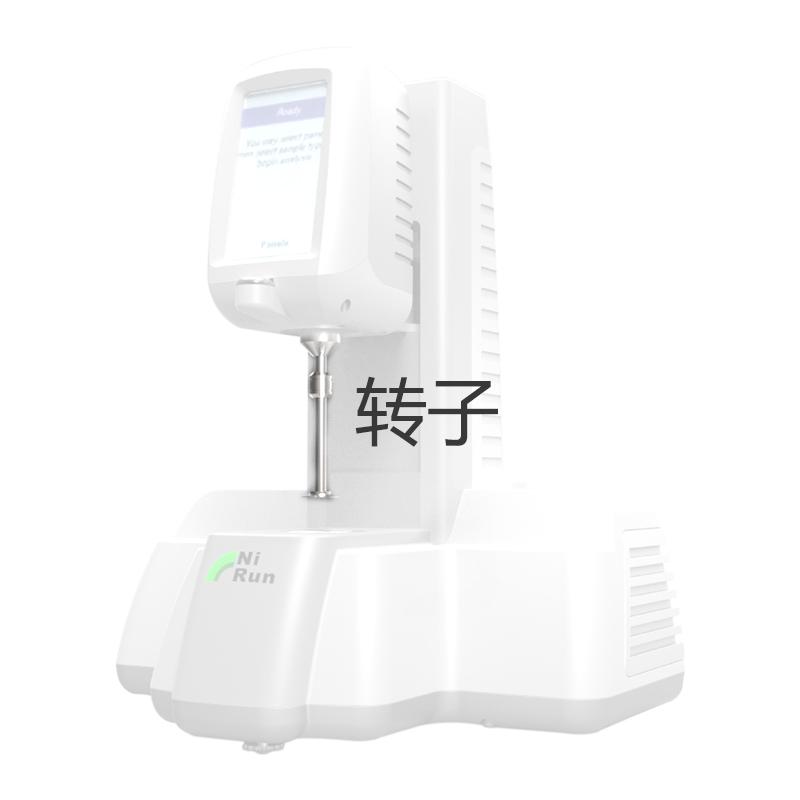

The NIRUN CAP-06 cone plate Rheometer is an optional CAP rotor for the NTV-CAP3H cone plate Rheometer with a shear rate of 3.3N, a sample volume of 30 μL, and a viscosity range of 750 to 1500 mPa · s.
Features
1. The sample volume is only 30μL, saving sample usage
2. Wide viscosity range, covering 750~ 1500000mPa · s
3. The shear rate is fixed at 3.3N, and the measurement is stable
4. Rotor speed range 5~ 1000rpm, adapt to different measurement needs
5. Reliable measurement accuracy of +/- 2% F.S
Principle
As the rotor member of the cone-plate Rheometer, a stable shear field is generated during swirl/spin by the cone-plate geometry, and the viscosity characteristics of the fluid at a specific shear rate are measured.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Prepare 30 μL of sample to be tested
2. Install CAP-06 Rotor to NTV-CAP3H Cone Plate Rheometer
3. Set the required speed (5~ 1000rpm range)
4. Start the measurement program
5. Record viscosity measurement results
Notice
• The sample size needs to be precisely controlled to 30 μL
• Make sure the rotor is installed correctly and securely
• The viscosity measurement range should be within 750~ 1500000mPa · s
• The speed setting should be within the range of 5~ 1000rpm
Periodically calibrate measurement accuracy
