Overview

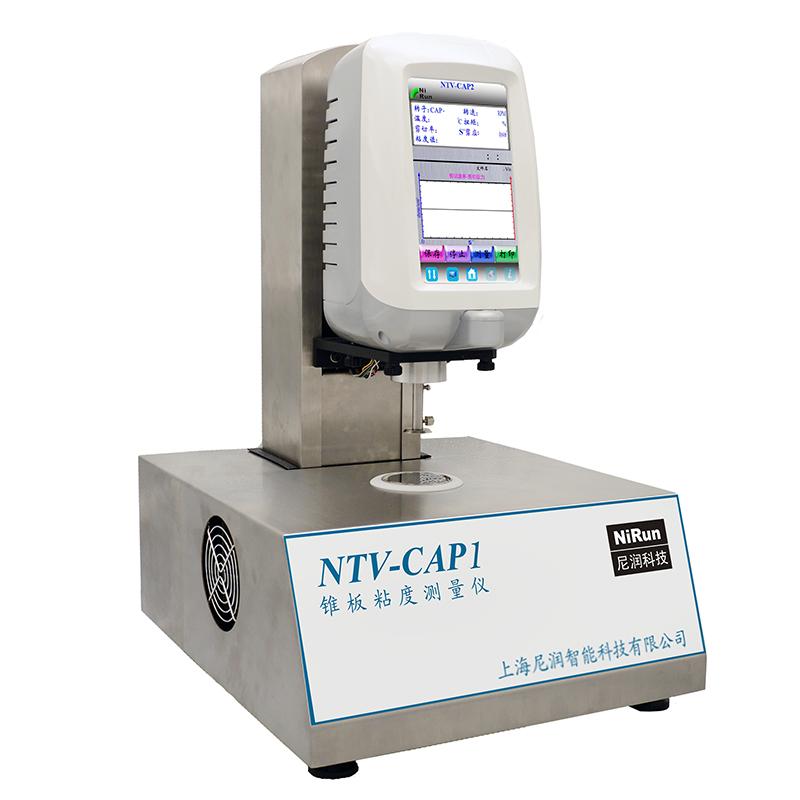

The NIRUN NTV-CAP1HA cone-plate viscometer is a high-performance viscosity measurement instrument with a 7-inch wide Touchscreen and ARM chip processor for fast data processing. The device supports multiple viscosity units and measurement modes for accurate measurement of medium to high viscosity fluids.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen directly displays rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, automatic lifting design
5. Built-in PT100 Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new bearing design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct themselves with reliable and accurate data
12. Support stepless speed measurement viscosity, input any speed directly reflects the full scale under each rotor
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The cone-plate viscometer generates shear force swirling/spinning through the rotor in the sample for measurement of fluid viscosity. The built-in PT100 temperature Probe monitors the sample temperature, and the ARM chip processes the data quickly to display the shear rate and shear stress in real time, and transmits the data through the gigabit network port.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Connect the Power Adapter and turn it on
2. Select or install the appropriate rotor (e.g. CPE-40, CPE-41, etc.)
3. Set the speed (0.1~ 250rpm) and measurement parameters
4. Place the sample and start the measurement
5. View real-time viscosity data and Linear dispersion with Touchscreen
6. Use a USB stick or Gigabit Ethernet port to save data
7. Optional DV software for rheological characteristic analysis
Notice
• Power frequency in 100V-240V range
• Check whether the rotor is firmly installed before use
• Avoid exceeding the viscosity measurement range (2.6~ 2000000 mPa · s), otherwise an alarm will be triggered
• Regularly calibrate temperature and viscosity correction factor
• Keep the equipment clean to prevent sample residue from affecting accuracy
• Operate within the allowable temperature range (-1 ℃~ 150 ℃)
