Overview

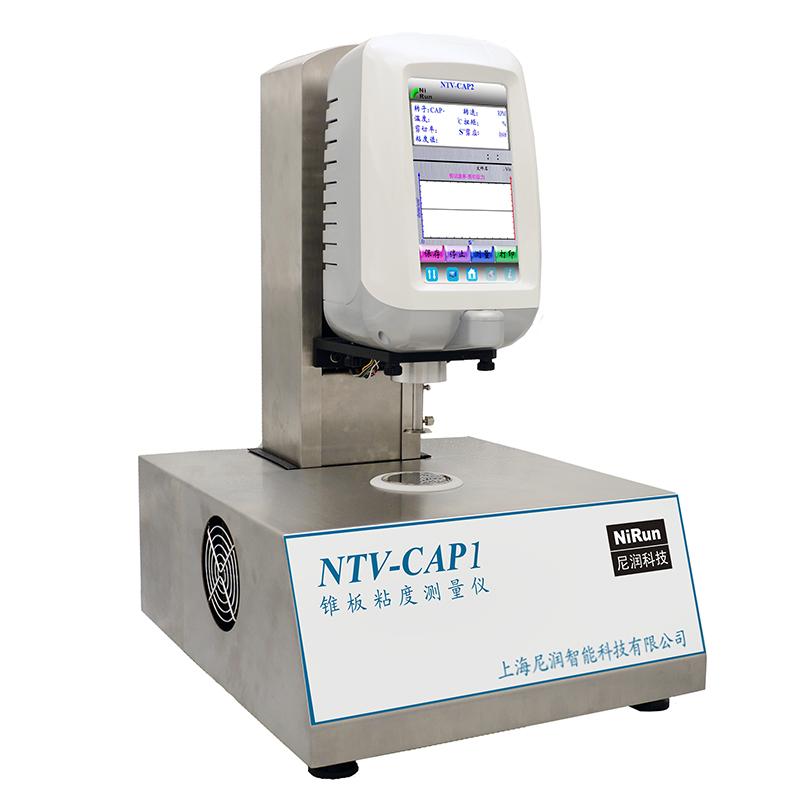

The NIRUN NTV-CAP1HB cone-plate viscometer is a High Accuracy viscosity measurement instrument with a 7-inch wide Touchscreen design for easy operation and rich display information. It supports a variety of viscosity units and rheological characteristics measurement, suitable for viscosity testing of medium to high viscosity fluids.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen directly displays rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, automatic lifting design
5. Built-in PT100 Temperature Probe
6. ARM chip processor, fast data processing speed
7. Durable new bearing design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable
10. Support external U disk data storage; single point, continuous, timing three storage methods
11. Password protection temperature and viscosity correction factor, allowing users to correct themselves
12. Support stepless speed measurement viscosity, input speed directly reflects full scale
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The cone-plate viscometer generates shear force through the rotor swirling/spinning in the sample for measurement of fluid viscosity. Built-in PT100 temperature Probe monitors temperature, ARM chip processes data quickly, Gigabit network port transmits data, supports multiple measurement modes and unit conversion.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Connect the Power Adapter and turn it on
2. Select or install suitable rotors (e.g. CPE-40, CPE-41, etc.)
3. Set the speed (0.1~ 250rpm) and measurement parameters
4. Add the sample to the specified amount (determine the sample amount according to the rotor model)
5. Start the measurement and observe the viscosity value and Linear dispersion displayed on the Touchscreen
6. Optional DV software for data collection and analysis
7. Use a USB stick or Gigabit Ethernet port to save data
Notice
• Power frequency in 100V-240V range
• Choose the right rotor and measurement range based on fluid viscosity
• Pay attention to the alarm prompt when exceeding the measurement range
• Temperature and viscosity correction factors need to be modified under the premise of reliable data
• Clean the rotor after use to prevent sample residue from affecting accuracy
