Overview

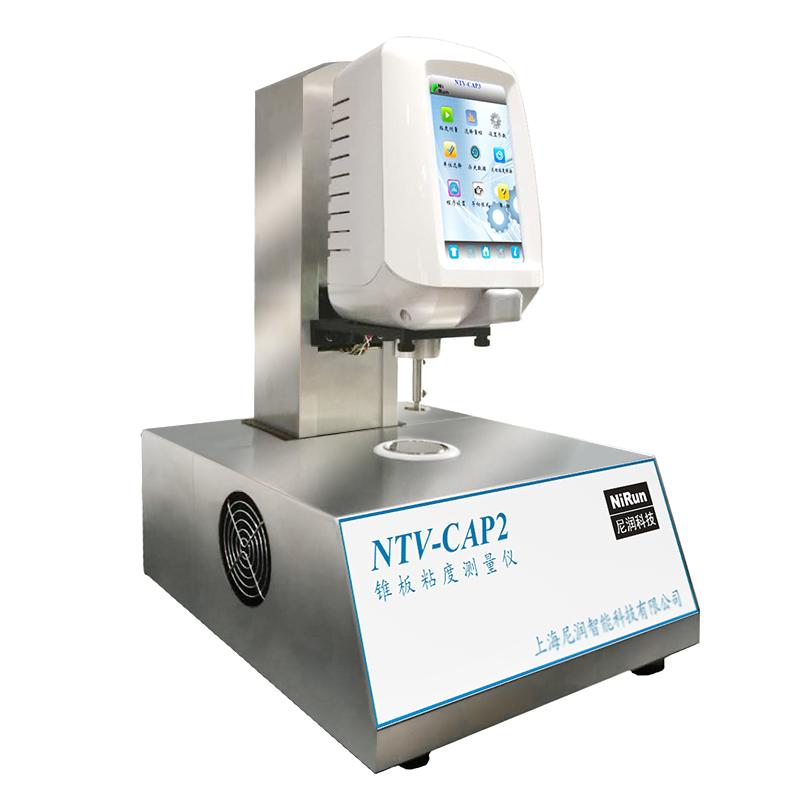

The NIRUN NTV-CAP2 cone-plate viscometer is a precision instrument for the measurement of medium to high viscosity fluids, equipped with a 1.7 inch wide Touchscreen and a variety of user-friendly functions, suitable for hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastisol, Adhesive, gel, sealing agent, asphalt, Printing, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials and other applications.
Features
1.1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and analysis software, can directly display temperature, viscosity and other indicators on the computer Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, automatic lifting positioning design
5. Built-in PT100 Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new bearing design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct temperature and viscosity correction factor on the premise of reliable and accurate data
12.Automatic conversion of dynamic viscosity and kinematic viscosity
13. Any exchange of various viscosity units
14. Interchange of a variety of user-friendly operation styles
15. Random comes with powerful operation wizard help
16. The viscosity value shows continuous change
17. There is an alarm sound beyond the measurement range
18. Computer full-scale linear correction
19. AC Power Adapter 100V-240V, good anti-interference
Principle
The cone-plate viscometer swirls/spins the sample through the rotor to measure the viscosity of the fluid at different shear rates. The instrument has a built-in PT100 temperature Probe to monitor the temperature, and the ARM chip processor quickly processes the data to display the shear rate and shear stress indicators, realizing the automatic conversion of dynamic viscosity and kinematic viscosity.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Connect the Power Adapter and turn it on
2. Select the appropriate rotor and install it
3. Set measurement parameters through Touchscreen
4. Load the sample and start the measurement
5. Observe viscosity value display and Linear dispersion
6. Use a USB stick or network to transfer data
7. Optional software for data analytics
Notice
• Power frequency in 100V-240V range
• Check whether the rotor is in good condition before use
• Avoid exceeding the viscosity measurement range, otherwise the alarm will be triggered
• Regularly calibrate temperature and viscosity correction factor
• Keep the instrument clean to prevent sample residue from affecting accuracy
