Overview

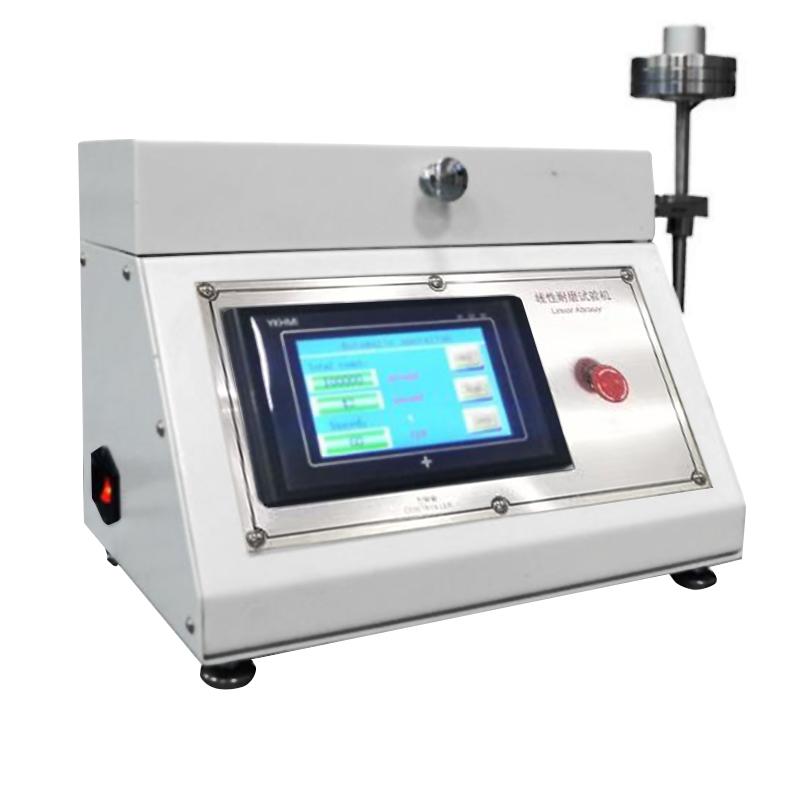

The FARUI 5750 Linear Wear meter is a test device used to evaluate the Abrasion Resistance, Scratch Resistance and Color Transmission of products, supporting dry and wet abrasion testing. The instrument can test samples of any size or shape, and is especially suitable for products with contoured and polished surfaces, such as computer mice and other IT products. Plastic topcoat abrasion resistance testing.
Features
1. Parameters such as moving distance, rotational speed, number of revolutions, and load can be set.
2. A variety of abrasion media and accessories can be selected to support hanging, damage testing, alcohol resistance testing, coin scratch resistance, etc.
3. The grinding head made of high-mass abrasion material ensures test stability and accuracy.
4. PLC color Chinese touch control, easy to operate.
5 optional travel distances and adjustable traverse speeds up to 120 roundtrip/minute.
6. Standard load range from 350g to 2100g, can be customized weight.
Principle
Wear meter simulates the abrasion and scraping process in actual use through linear reciprocating motion of the grinding head on the surface of the sample. The user can set parameters such as moving distance, speed, number of revolutions and load. The grinding head is made of high-mass material to ensure stable testing to evaluate the Abrasion Resistance, Scratch Resistance and Color Transmission of the sample.
Applications
Plastics, Auto Parts, Rubber, Leather and Spinning & Weaving, Eletroplating, Free Removal Components, Lacquer, Printing Patterns
Standards
CE、ASTM D3884、ASTM D1175、ASTM D1044、ASTM D4060、TAPPI T476、ISO 9352、ISO 5470-1、JIS K7204、JIS A1453、JIS K6902、JIS L1096、JIS K6964、DIN 52347、DIN 53109、DIN 53754、DIN 53799
Steps
1. Set parameters such as moving distance, speed, number of revolutions, and load.
2. Select the appropriate abrasion media and accessories.
3. Fix the sample on the test bench.
4. Start the instrument for abrasion test.
5. Monitor the testing process and replace the grinding head if necessary.
6. Record the test results.
Notice
• The maximum number of revolutions can be set to 999,999 revolutions, but the grinding head eraser may need to be replaced during this period.
• Standard traverse speed is 2~ 60 roundtrips/minute, up to 120 roundtrips/minute.
• Standard load range from 350g to 2100g, generally randomly configured 250g weight 3, can be customized Miscellaneous weight.
• Make sure to use high-mass abrasion materials to maintain test stability.
