Overview

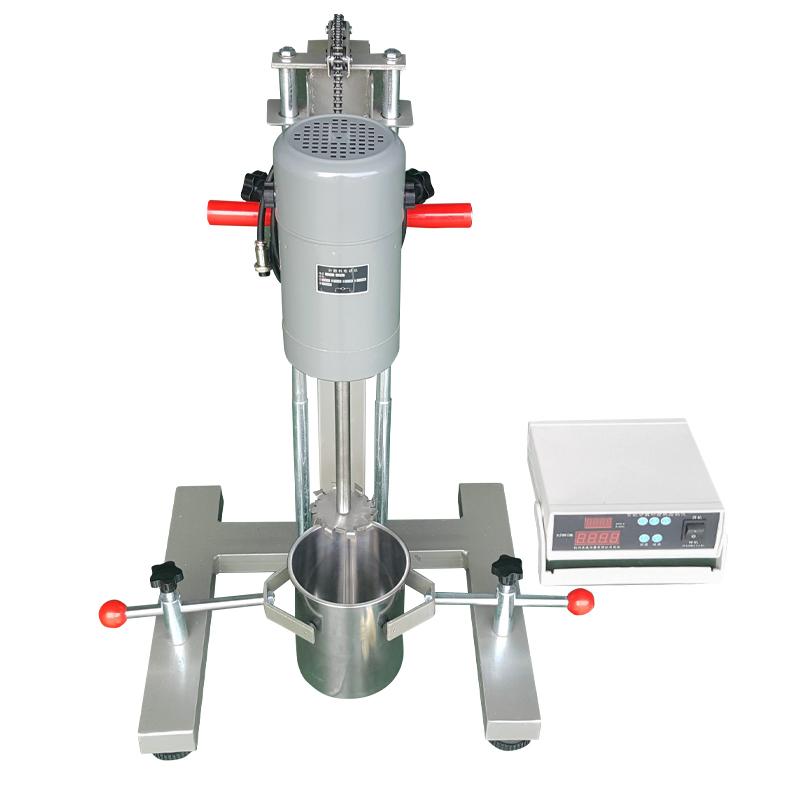

FS-400D high-speed laboratory Disperser is a new type of high-performance product that integrates the functions of dispersion and Stir, and completes the two processes of dispersion and homogenization through machines and containers. The equipment has high efficiency, good mixing effect, convenient cleaning, and simple and convenient manual lifting. It is widely used in the dispersion Stir of liquids in factories, scientific research institutes, Universities & colleges, and institutions.
Features
1. Electronic constant force speed control line, digital direct display of shaft speed
2. Equipped with dispersed impellers and grinding discs to adapt to different test requirements
3. Stirring, dispersing, grinding disc linear velocity and material viscosity can be calculated
4. Motor power 400W, processing capacity 2~ 5kg
5. Speed range 100~ 8000rpm
6. Electric lifting mode, easy to operate
7. Optional Mixing Tank with Different Capacity
Principle
The device adopts an electronic constant force speed control line, which directly displays the speed of the rotating shaft digitally, and is equipped with a dispersion impeller and a grinding disc. Driven by the high-speed operation of the motor, the dispersion head of the motor produces a high-speed tangential straight line. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve effective mixing, dispersion and uniformity.
Applications
Factories, Research Institutes, Universities & colleges
Steps
1. Select the appropriate Mixing Tank according to the test requirements
2. Turn on the power and set the required speed
3. Adjust the position of the dispersion head by electric lifting
4. Start the device for decentralized Stirring operation
5. Turn off the power after the operation is completed
6. Clean the equipment for next use
