Overview

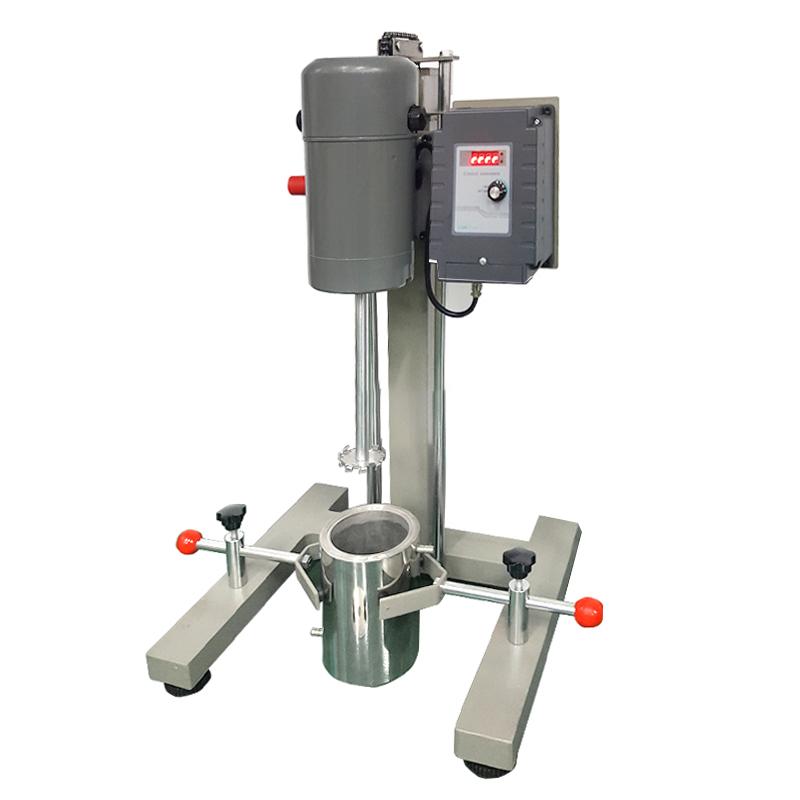

The SDF-1100 laboratory High Speed Disperser is a high-performance product developed according to the development trend of international professional dispersion equipment. It integrates dispersion and Stir functions and can complete both dispersion and homogenization processes in a single container. The equipment has the characteristics of high efficiency, good mixing effect and easy cleaning. The manual lifting operation is simple and convenient, and it is suitable for the dispersion and mixing of materials in liquids such as factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Integrate the functions of dispersion and Stir, and complete the two processes of dispersion and homogenization in one machine
2. High efficiency, good mixing effect, easy to clean
3. Manual lifting design is simple and convenient
4. With timing function
5. Optional Mixing Tank of different specifications (2.5 liters single-layer Mixing Tank, 5 liters double-decked Mixing Tank)
Principle
The device drives the impeller or grinding disc through the motor to swirl/spin at high speed, and disperses and mixes the fluid material in the container to achieve a uniform dispersion effect of the material.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Put the material into the Mixing Tank container
2. Adjust the speed according to the process requirements (adjustable from 100 to 8000rpm)
3. Start the device for decentralized mixing processing
4. Use the manual lift function to adjust the processing position
5. Timing function can be set to control processing time
6. Turn off the equipment and clean the container after processing is completed
Notice
This machine is suitable for conducting fluid material experiments in containers
• The motor is a series motor, which should not be used in explosion-proof workshops
• Equipment without explosion-proof function
• Maximum treatment viscosity should be less than 0000mPa.s
• Processing capacity range is 2~ 5kg
• Power frequency is 220V 50HZ before use
