Overview

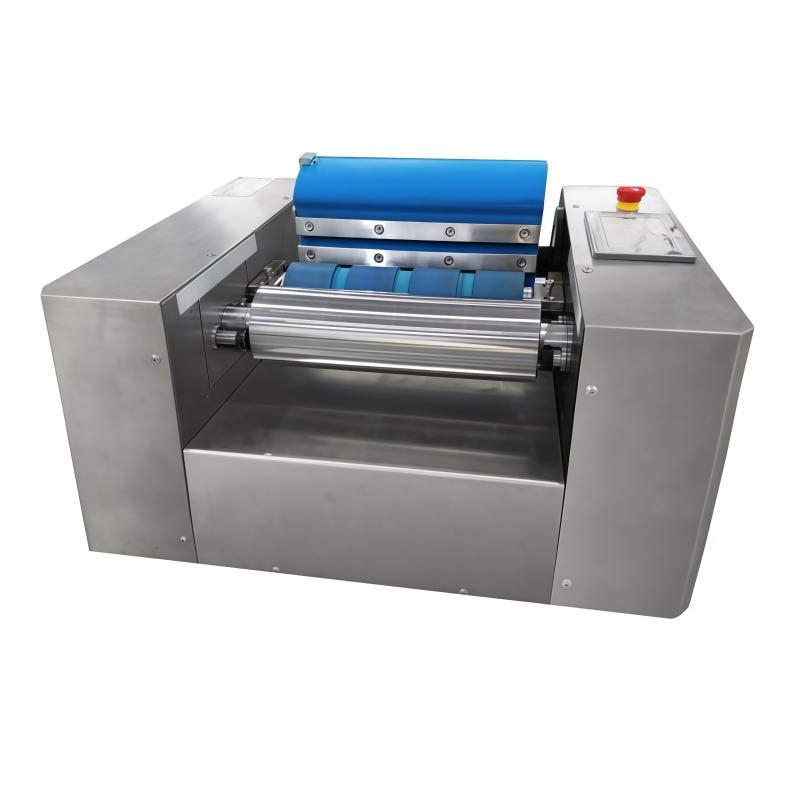

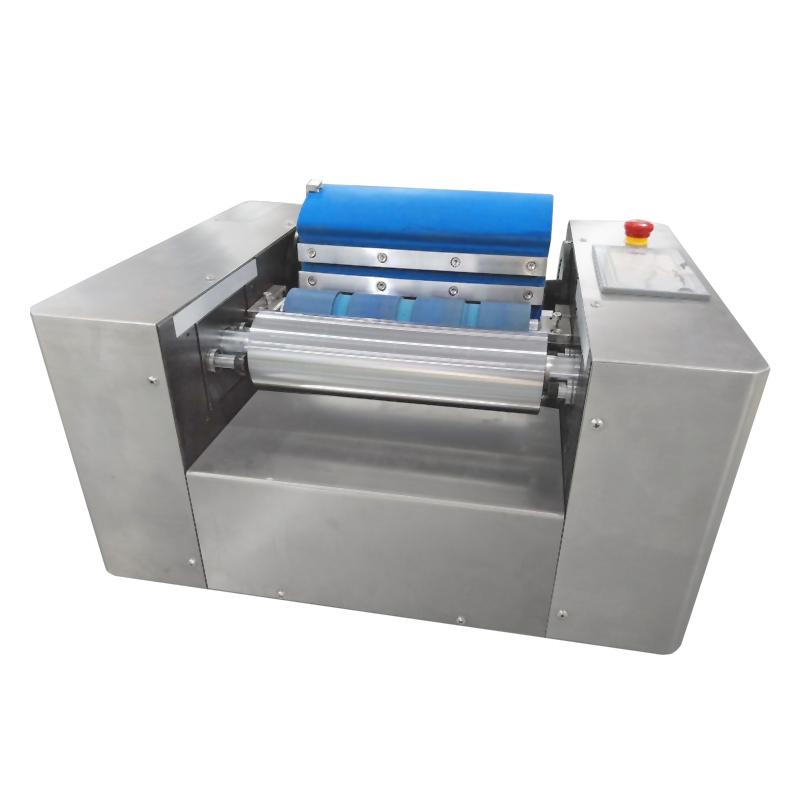

JINGHUAYIQI LD-JDY offset plate Ink Proofer is a fully automatic color display equipment that can simultaneously print different Color strips or the same inks color strips of different ink layer Film thickness, and can also print new and old inks on the same printing material for comparison, providing effective Color contrast.
Features
1. Spot Color Proofing: The multi-stage color development instrument can simultaneously print different Color strips or the same inks of different ink layer Film thickness, and can also print new and old inks on the same printing material for comparison, providing effective Color contrast.
2. Process Color inks detection: It can detect the Hue, Gloss and color concentration of inks; start from controlling the mass of inks raw materials, so as to achieve the purpose of controlling the mass of printing products.
3. For customers to pre-press Spot Color approval: can make a simple color bar for customers to pre-press approval or archive.
4. Detect the degree of discoloration of dry and wet ink: The color display machine displays the required Spot Color inks color bars, and the Hue after Spot Color drying can be known after natural drying. (For example: the phenomenon that purple and dark blue will turn red after drying can be ruled out before printing.)
5. When used with inks Basis Weight meter, the usage of Spot Color inks can be predicted, and the residual ink loss and warehouse accumulation can be greatly reduced.
6. Data management: with Spectroscopic Density Meter for color detection, measurement of color bar data report (Lab value).
7. With relevant instruments, it can predict the characteristics of inks Abrasion Resistance, fading, transfer and light resistance and heat resistance.
Principle
Offset plate Ink Proofer implements inks proofing through homogenization and color development processes. The homogenization mode includes speed switching, string setting, four-stage homogenization time setting, automatic pressure adjustment and cleaning functions to ensure even distribution of inks. The color development process automatically adjusts the pressure according to the material Film thickness, printing color bars at different speeds for Color contrast and performance detection.
Applications
Spot Color Proofing, Process Color inks Testing, Pre-Press Spot Color Approval, Wet and Dry Ink Discoloration Testing, inks Dosage Prediction, Data Management, inks Performance Prediction
Steps
1. Set the ink leveling mode: select the automatic or manual ink leveling speed, set the string mode, ink leveling time and pressure.
2. Prepare materials: Select the size of the exhibition material, set the proofing speed and the color development speed.
3. Proofing: Start the device to print color strips, which can process different Colors or Ink Film thicknesses at the same time.
4. Detection and Analysis: Use Spectroscopic Density Meter to measure color bar data and evaluate inks characteristics.
5. Cleaning equipment: Operate in cleaning mode to ensure that the metal rollers do not run in tandem.
Notice
• The ink leveling speed can be switched between automatic and manual, suitable for different operating habits.
• String setting can reduce color unevenness and Mistting, and improve accuracy.
• Automatic adjustment of uniform ink pressure to adapt to roller abrasion or old and new errors.
• The developing pressure is automatically adjusted according to the material Film thickness (-1~ + 1 mm).
• The metal rollers are not strung during cleaning to ensure safety and convenience.
• The rubber roller comes standard with ordinary and UV dual-use rollers, paying attention to applicability.
