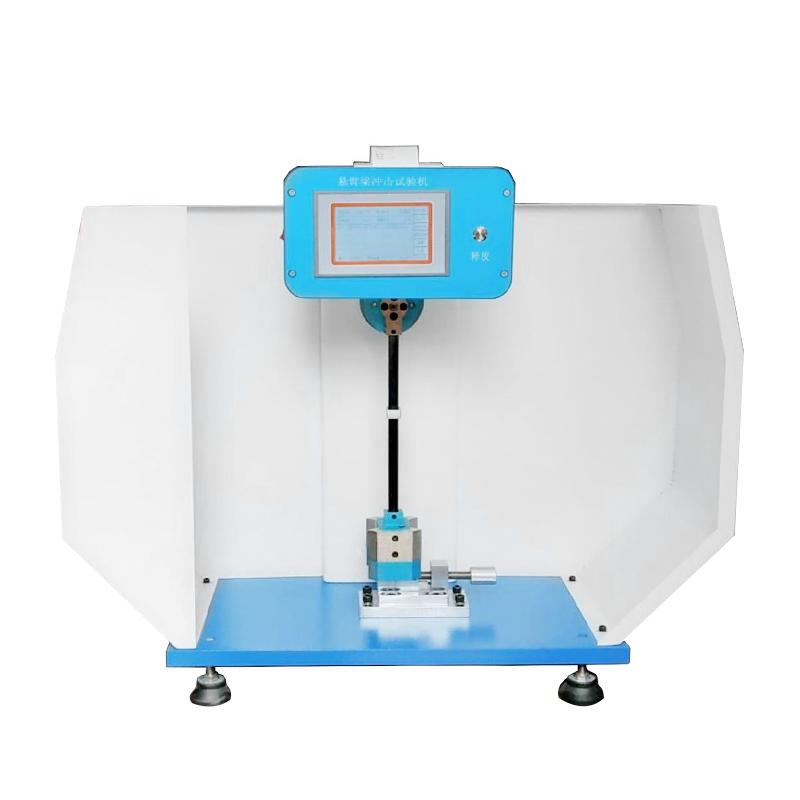

JINGHUAYIQI LD-XBL-A Cantilever Impact Tester Non-metallic Material Impact Toughness Test

Name: JINGHUAYIQI LD-XBL-A Cantilever Impact Tester Non-metallic Material Impact Toughness Test
Brand: JingHuaYiQi
SKU: NB028464
Price: 981.0 USD
Availability: InStock

$ 981.00Ex works

The impact speed is 3.5m/s, the impact energy can be selected from 1J, 2.75J, 5.5J, and the pendulum lift angle is 150 °. It supports a variety of non-metallic material impact tests and is easy to operate.

Model

LD-XBL-A

Get Quote

Category : Other Instruments

Brand : JingHuaYiQi

SKU : NB028464

Service :The delivery and service By NBCLab.Com

Overview

Cantilever Impact Tester is used to determine the impact toughness of non-metallic materials such as plastics, reinforced nylon, frp, Pottery and porcelain, cast stone, plastic appliances, insulation materials, etc. It is a common equipment for mass inspection by R & D institutions, Universities & colleges, and Non-metallic material manufacturers.

Features

1. Impact speed up to 3.5m/s 2. Provide three impact energy options of 1J, 2.75J and 5.5J 3. The pendulum lift angle is 150 ° 4. The distance from the center of the pendulum to the impact blade is 335mm 5. Impact blade to jaw plane distance of 22mm 6. The fillet radius of the blade is R = 0.8mm.

Principle

Impact toughness of the material is assessed by measuring the energy absorbed when the specimen breaks by impacting the specimen at a speed of 3.5 m/s with a pendulum at 150 ° lift angle.

Applications

R & D institutions, Universities & colleges, Non-metallic material manufacturers

Standards

ISO179-92、GB1043-93、GB/T1843-1996、JB/T8761-1998

Impact velocity
3.5 m/s
Pendulum energy
1J、2.75J、5.5J
Pendulum angle
150°
Distance from Center of Pendulum to Impact Blade
335mm
Impact blade to jaw upper plane distance
22mm
Blade fillet radius
R=0.8mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
