Overview

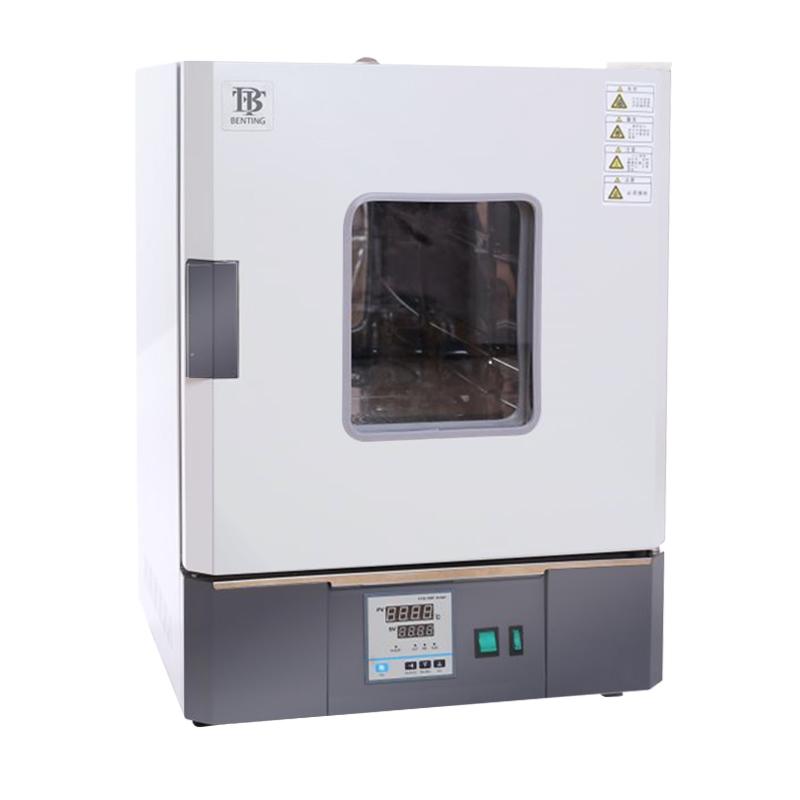

BGL series blast drying oven has the characteristics of novel shape, professional technology, accurate temperature control, stable performance, easy maintenance and convenient operation. It is suitable for drying, baking, melting wax and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes and other units.
Features
1. Novel vertical design, the shell is formed by good Cold rolled steel plate processing, surface electrostatic spraying process, beautiful appearance, anti-corrosion and durable
2. Turbine centrifugal fan blades, reasonable cooperation between bottom drum and bottom heater, vertical double air duct vertical hot air circulation, so that the temperature distribution in the working room is more uniform
3. The studio adopts good mirror stainless steel processing and forming, four corners and a half arc transition surface anti-corrosion treatment, adjustable Shelf spacing, air duct side plate and bottom heating hood quick-release structure, easy to clean
4, PID microcomputer intelligent temperature control instrument, with timing, over-temperature alarm function, accurate temperature control, convenient reading
5. Adopt a low-noise blower
6. The fan has a speed regulation function, divided into three gears: 1, 2, and 3, which can be adjusted according to the requirements of heating items
7. The new structure box door has good thermal insulation effect, double-decked tempered Glass large viewing window in the middle, lock-type elastic adjustment door lock, high temperature silicone sealing strip to ensure good sealing and prevent heat loss
Principle
Through the turbine centrifugal fan blade for the base drum, with the bottom heater reasonable cooperation, the formation of vertical double air duct vertical hot air circulation system, so that the indoor temperature distribution more uniform, drying, baking and other functions.
Applications
Laboratory of industrial and mining enterprises and scientific research institutes
Steps
1. Put the items to be processed into the studio
2. Adjust Shelf spacing as needed
3. Set the required temperature and time parameters
4. Select the fan gear according to the requirements of the heating item
5. Start the device and start working
6. Monitor the processing process through the observation window
7. Turn off the device after processing is completed
Notice
• It is recommended to use a high-speed gear for higher uniformity
• Regularly clean the side plate and bottom heating hood of the air duct
• Ensure that the door sealing strip is intact to prevent heat loss
• Ambient Temperature should be kept within the range of + 5-40 ° C
• Maximum total load does not exceed 15kg
• Pay attention to the Timer Range setting (1-9999 minutes)
