Overview

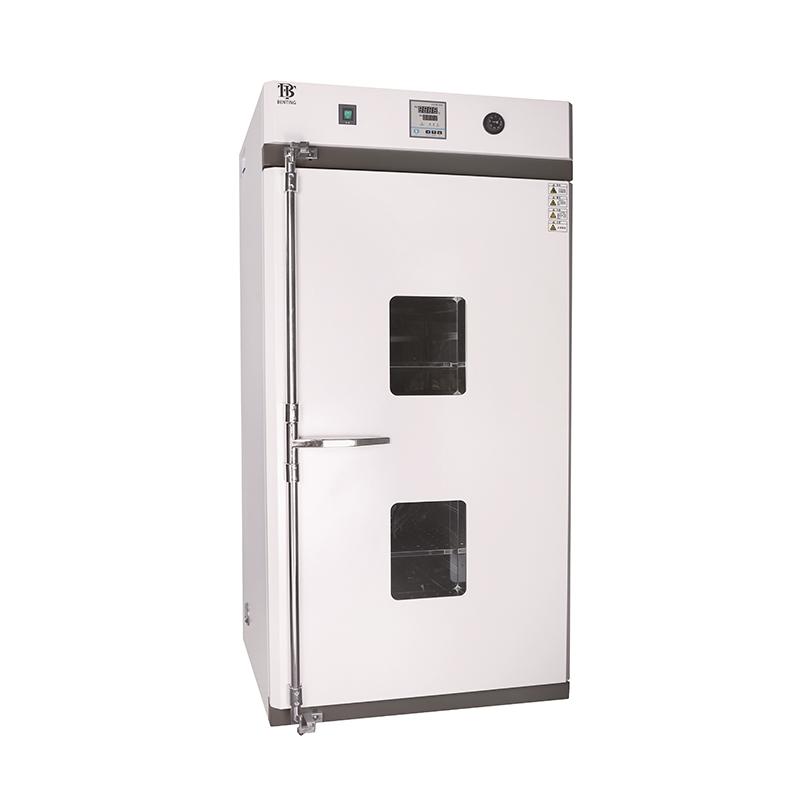

BENTING CBGL-625B blast drying oven adopts vertical design, which has the characteristics of novel shape, accurate temperature control, stable performance and convenient operation. It is suitable for drying, baking, wax, heat treatment and other purposes in laboratories of industrial and mining enterprises, scientific research institutes and other units.
Features
1. Novel vertical design, the shell adopts good Cold rolled steel plate, surface electrostatic spray, beautiful anti-corrosion and durable.
2. Turbine centrifugal fan blades, bottom drum and bottom heater, vertical double air duct vertical hot air circulation, uniform temperature distribution.
3. The studio adopts good mirror stainless steel, four corners and a half arc transition, surface anti-corrosion treatment, adjustable Shelf spacing, air duct side plate and bottom heating hood quick-release structure, easy to clean.
4. PID microcomputer intelligent temperature controller, with timing, over-temperature alarm function, accurate temperature control, convenient reading.
5. Adopt a low-noise blower.
6. The fan has 1, 2, and 3 speed regulation functions, which can be adjusted according to the requirements of heating items. It is recommended to use a high-speed gear to improve uniformity.
7. The box door adopts a new structure, with good thermal insulation effect, double-decked tempered Glass large viewing window in the middle, lock-type elastic adjustment door lock, high temperature silicone sealing strip, good sealing performance, to prevent heat loss.
Note: CBGL-625B type is overhead blast.
Principle
The blast drying oven is combined with the bottom heater through the turbine centrifugal fan blade and the bottom drum to form a vertical double air duct vertical hot air circulation system, so that the temperature distribution in the working room is uniform. The PID microcomputer intelligent temperature controller precisely controls the temperature to ensure stable heating.
Applications
Industrial and mining enterprises, scientific research institutes laboratory drying, baking, wax, heat treatment
Steps
1. Adjust the fan gear according to the requirements of the heating item (high speed gear is recommended).
2. Set the temperature and timing parameters of the PID microcomputer intelligent temperature controller.
3. Start the equipment for heating and monitor the process through the observation window.
4. When cleaning, use the quick-release structure to disassemble the side plate of the air duct and the bottom heating cover.
Notice
• It is recommended to use a high speed gear to increase Temperature Uniformity.
• Pay attention to the steps of removing the side plate and bottom heating cover of the air duct when cleaning.
• Make sure the door is well sealed to prevent heat loss.
• Operating Ambient Temperature should be in the range of + 5-40 ° C.
