Overview

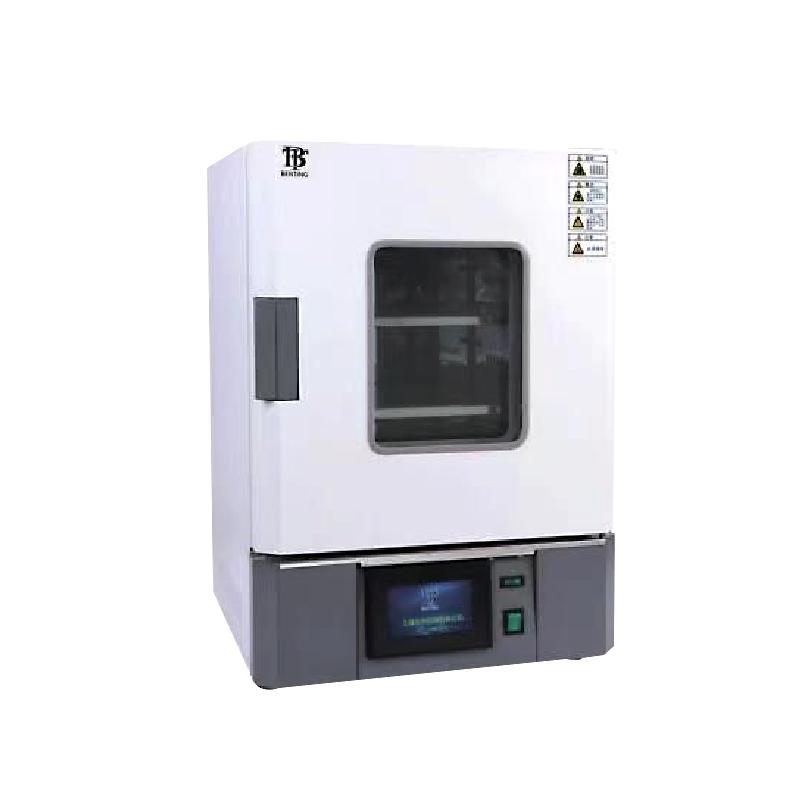

BENTING CBGLL-65BE blast drying oven has the characteristics of excellent design, novel shape, professional technology, accurate temperature control, stable performance, easy maintenance and convenient operation. It is suitable for drying, baking, melting wax and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes and other units.
Features
1. Novel vertical design, the box shell is made of good steel plate, the surface is treated by electrostatic spraying process, beautiful appearance, anti-corrosion and durability.
2. The four corners are in a circular arc transition, the Shelf spacing is adjustable, and the air duct side plate and the bottom heating cover have a quick-release structure, which is easy to clean.
3. Turbine centrifugal fan blade unique bottom drum and bottom heating reasonable cooperation, vertical double air duct vertical hot air circulation design, so that the indoor temperature distribution more uniform.
4. The speed-regulating fan can adjust the required air volume according to the different experimental requirements of the user, ensuring the temperature uniformity in the working room without blowing off powdery items.
5. Large screen LCD, multiple sets of data are displayed on one screen, unique navigation operation keys, and the use method is more user-friendly. Timing and over-temperature alarm functions, with parameter memory and call reply function protected by power outage and dead state data loss.
6. Equipped with an independent temperature limit alarm system, when the main controller malfunctions, the output is promptly alarmed and cut off, and the double protection ensures the safe operation of the experiment without accidents.
7. Optional 485 interface, which can be connected to a computer to remotely monitor the changing status of temperature parameters.
8. The box door with a new structure has good thermal insulation effect, and the middle is equipped with a double-decked tempered Glass large viewing window. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss.
Principle
Through the reasonable cooperation between the bottom drum and the bottom heating, the vertical double air duct vertical hot air circulation design is adopted to make the temperature distribution in the working room more uniform. The speed-regulating fan can adjust the air volume according to the experimental needs to ensure the temperature uniformity.
Applications
Industrial and mining enterprises, scientific research institutes laboratory drying, baking, wax, heat treatment
Notice
BGLL-230BE and BGLL-625BE models have no fan speed regulation function; BGLL-625 models are top blowers.
