Overview

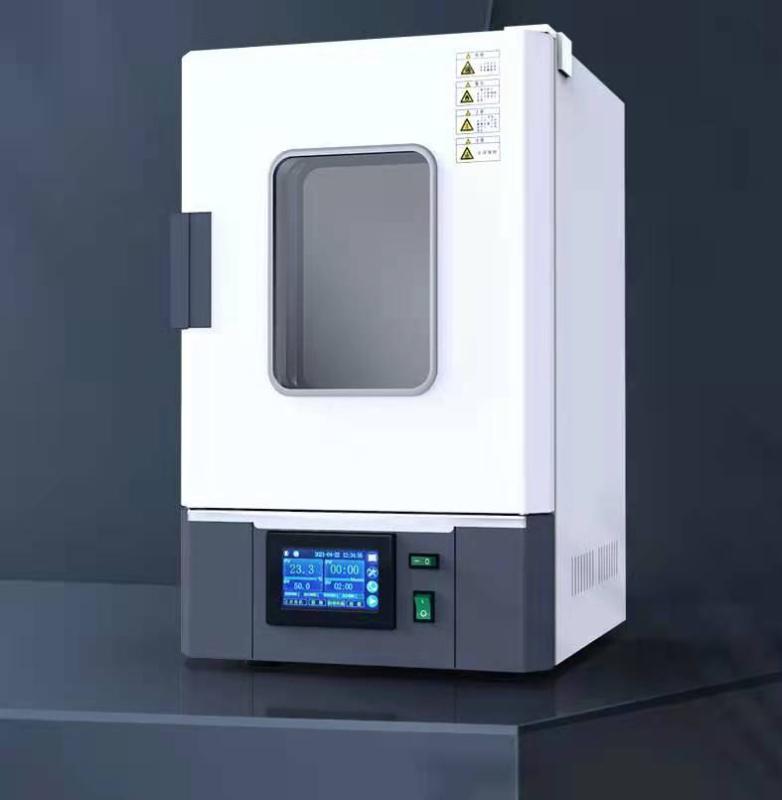

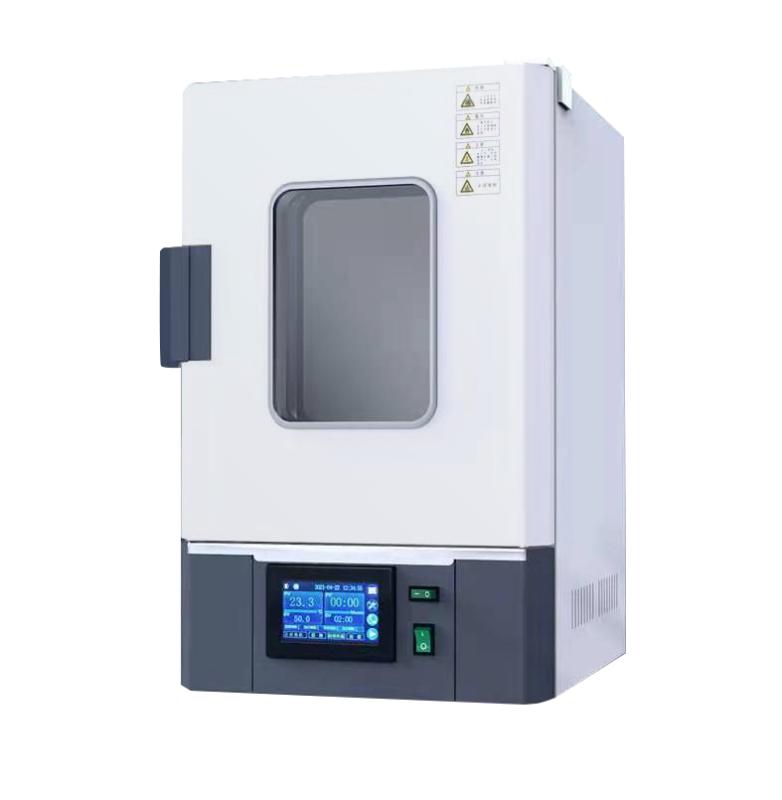

BENTING CBHLL-30BE electric thermostatic drying oven has the characteristics of excellent design, novel shape, excellent process, accurate temperature control, easy maintenance and convenient operation. It is suitable for laboratory drying, baking, melting wax and heat treatment in industrial and mining enterprises, scientific research institutes and other units.
Features
1. Cold rolled steel plate is used to make the shell, and the surface is treated by electrostatic spraying process.
2. The studio is made of good mirror stainless steel, with a circular arc transition at the four corners, and the surface is treated with anti-corrosion technology. The quick-release structure of the bottom heating hood with adjustable Shelf spacing is easy to clean.
3. The PID microcomputer intelligent temperature controller has the function of precise timing of temperature control, over-temperature alarm, accurate temperature control and convenient reading.
4. The box door with a new structure has good thermal insulation effect and is equipped with a double-decked tempered Glass large viewing window in the middle. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss.
5, heating power has two gears, can meet the user's high and low temperature use.
6. BE type is equipped with 5-inch Touchscreen, standard 10-segment program temperature control, heating rate, over-temperature alarm, timing, restart to restore temperature and time memory, display temperature rise Linear dispersion, can record 800 minutes of data (recorded per minute), can be scheduled to boot, scheduled to shut down.
Principle
The electric thermostatic drying oven generates heat through the electric heating system, and adopts the PID microcomputer intelligent temperature control instrument to precisely control the temperature in the box to realize the thermostatic drying function. The box body adopts heat insulation structure and sealing design to effectively prevent heat loss and ensure temperature stability.
Applications
Laboratory drying, baking, molten wax, heat treatment of industrial and mining enterprises, scientific research institutes and other units
Steps
1. Connect the power supply and set the required temperature and time parameters.
2. Select the heating power gear as needed.
3. Start the device and observe the temperature rise.
4. Turn off the power after use, and clean and maintain after the box is chilled down.
Notice
• Equipment Ambient Temperature should be in the range of + 5~ 40 ℃
The working environment humidity should not exceed 50% RH
• Maximum shelf load is 15kg
• Power frequency is 220V/50HZ before use
• Regularly clean the studio and heating hood
• Over-temperature alarm function needs to keep working normally
