Overview

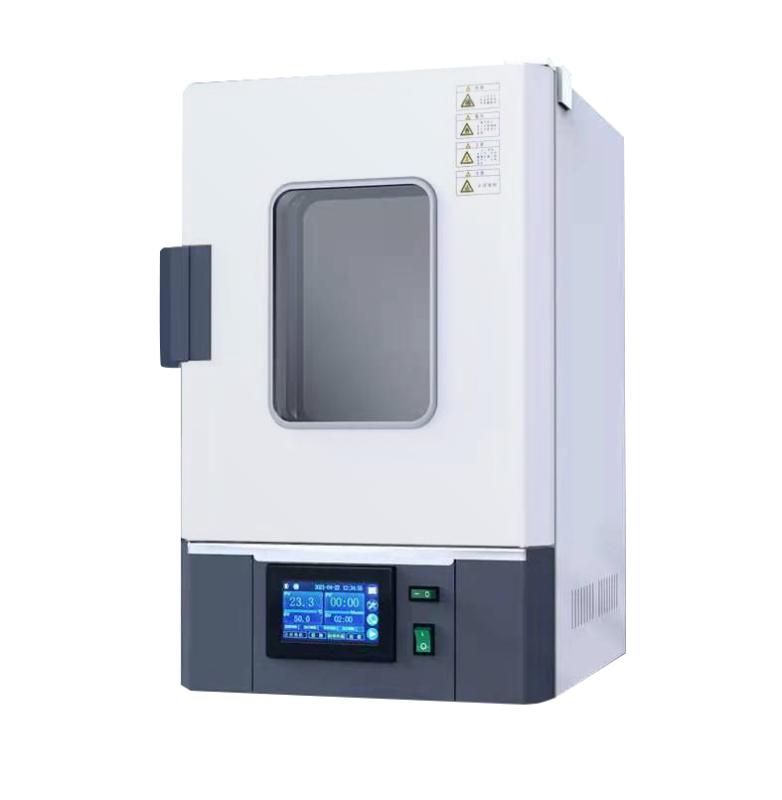

BHL series electric H thermostatic drying oven has the characteristics of excellent design, novel shape, excellent process, accurate temperature control, easy maintenance and convenient operation. It is suitable for laboratory drying, baking, wax melting and heat treatment in industrial and mining enterprises, scientific research institutes and other units.
Features
1. Cold rolled steel plate, surface treated by electrostatic spraying
2. The studio is made of good mirror stainless steel, the four corners are arc transition, the surface is treated by anti-corrosion process, and the quick-release structure of the bottom heating hood with adjustable Shelf spacing is easy to clean
3. PID microcomputer intelligent temperature control instrument has precise timing of temperature control, over-temperature alarm function, accurate temperature control and convenient reading
4. The box door with a new structure has good thermal insulation effect and is equipped with a double-decked tempered Glass large viewing window in the middle. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss
5, heating power has two gears, can meet the user's high and low temperature use
6. BE type is equipped with 5-inch Touchscreen, standard 10-segment program temperature control, heating rate, over-temperature alarm, timing, restart to restore temperature and time memory, display heating Linear dispersion, can record 800 minutes of data, can be scheduled to boot, scheduled to shut down
Principle
The electric thermostatic drying oven generates heat through the electric heating system, and the PID microcomputer intelligent temperature controller precisely controls the temperature in the box to realize the thermostatic drying function. Double-decked tempered Glass observation window and high temperature resistant silicone sealing strip are used to ensure that heat is not lost and maintain a stable operating temperature environment.
Applications
Laboratory drying, baking, molten wax, heat treatment of industrial and mining enterprises, scientific research institutes and other units
Steps
1. Turn on the power supply
2. Set the required temperature and time parameters
3. Start the device and start working
4. Monitor the working status through the observation window
5. Turn off the power after the work is completed
Notice
● Ambient Temperature should be in the range of + 5~ 40 ℃
● Working environment humidity should not exceed 50% RH
● Maximum shelf load is 15kg
● Power frequency is 220V/50HZ before use
Regularly clean the studio and heating hood
● Pay attention to the over-temperature alarm prompt and deal with abnormal situations in time
