Overview

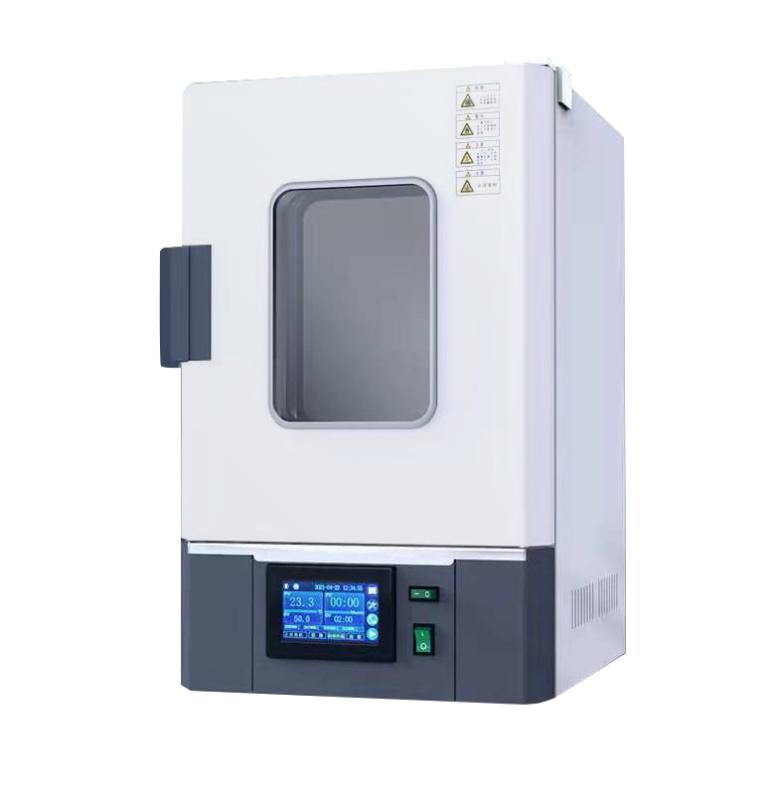

BHL series electric HL-65BE electric thermostatic drying oven has the characteristics of excellent design, novel shape, excellent process, accurate temperature control, easy maintenance and convenient operation. It is suitable for laboratory drying, baking, melting wax and heat treatment in industrial and mining enterprises, scientific research institutes and other units.
Features
1. Cold rolled steel plate is used to make the shell, and the surface is treated by electrostatic spraying process.
2. The studio is made of good mirror stainless steel, with a circular arc transition at the four corners, and the surface is treated with anti-corrosion technology. The quick-release structure of the bottom heating hood with adjustable Shelf spacing is easy to clean.
3. The PID microcomputer intelligent temperature controller has the function of precise timing of temperature control, over-temperature alarm, accurate temperature control and convenient reading.
4. The box door with a new structure has good thermal insulation effect and is equipped with a double-decked tempered Glass large viewing window in the middle. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss.
5, heating power has two gears, can meet the user's high and low temperature use.
6. BE type: 5-inch Touchscreen, standard 10-segment program temperature control, heating rate, over-temperature alarm, timing, restart to restore temperature and time memory, display heating Linear dispersion, can record 800 minutes of data (recorded per minute), can be scheduled to boot, scheduled to shut down.
Principle
The electric thermostatic drying oven generates heat through the electric heating system, and the PID microcomputer intelligent temperature controller precisely controls the temperature to realize the thermostatic drying function. Double-decked tempered Glass observation window and high temperature resistant silicone sealing strip are used to ensure the sealing of the box and prevent heat loss.
Applications
Laboratory drying, baking, molten wax, heat treatment of industrial and mining enterprises, scientific research institutes and other units
Steps
1. Connect the power supply and set the required temperature and time parameters.
2. Select the heating power gear as needed.
3. Start the equipment and start the heating process.
4. Monitor the internal situation through the observation window.
5. After reaching the set time, the device automatically stops working.
Notice
• Please read the instructions carefully before use
• Ensure that the Working Ambient Temperature is within the range of + 5~ 40 ℃
• Working environment humidity does not exceed 50% RH
• Maximum shelf load is 15kg
• Regularly clean the studio and heating hood
• Avoid over-temperature use and pay attention to the over-temperature alarm function
• Do not open the box door at will when the equipment is working
