Overview

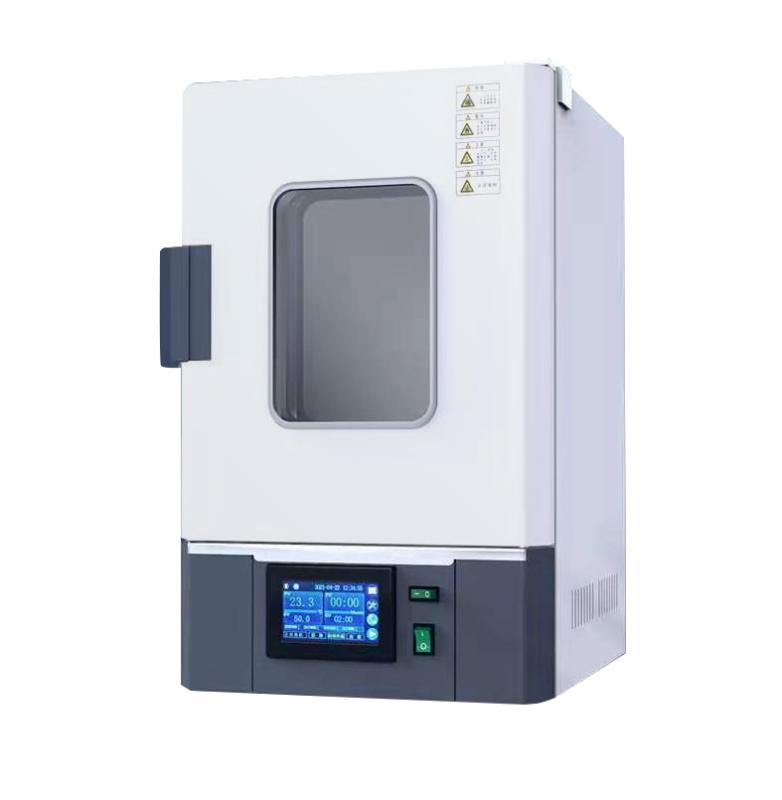

BENTING CBHL-125BE electric thermostatic drying oven has the characteristics of excellent design, novel shape, excellent process, accurate temperature control, easy maintenance and convenient operation. It is suitable for laboratory drying, baking, wax melting and heat treatment in industrial and mining enterprises, scientific research institutes and other units.
Features
1. Cold rolled steel plate is used to make the shell, and the surface is treated by electrostatic spraying process.
2. The studio is made of good mirror stainless steel, with a circular arc transition at the four corners, and the surface is treated with anti-corrosion technology. The quick-release structure of the bottom heating hood with adjustable Shelf spacing is easy to clean.
3. The PID microcomputer intelligent temperature controller has the function of precise timing of temperature control, over-temperature alarm, accurate temperature control and convenient reading.
4. The box door with a new structure has good thermal insulation effect and is equipped with a double-decked tempered Glass large viewing window in the middle. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss.
5, heating power has two gears, can meet the user's high and low temperature use.
6. BE type: 5-inch Touchscreen, standard 10-segment program temperature control, heating rate, over-temperature alarm, timing, restart to restore temperature and time memory, display heating Linear dispersion, can record 800 minutes of data (recorded per minute), can be scheduled to boot, scheduled to shut down.
Principle
The electric thermostatic drying oven provides heat through the heating system, and the PID microcomputer intelligent temperature controller precisely controls the temperature in the box to realize the thermostatic drying function. The double-decked tempered Glass observation window and high temperature resistant silicone sealing strip ensure that heat is not lost and maintain a stable working environment.
Applications
Laboratory drying, baking, molten wax, heat treatment of industrial and mining enterprises, scientific research institutes and other units
Steps
1. Connect the power supply and set the required temperature and time parameters.
2. Select the heating power gear as needed.
3. Start the device, monitor the heating Linear dispersion and temperature display.
4. After use, turn off the equipment as required.
Notice
• Ambient Temperature should be kept within the range of + 5~ 40 ℃
The working environment humidity should not exceed 50% RH
• The maximum load of the shelf is 15kg, please do not overload it
• Regularly clean the studio and heating hood to keep the equipment hygienic
• Check whether the sealing strip is in good condition before use to ensure that heat is not lost
