Overview

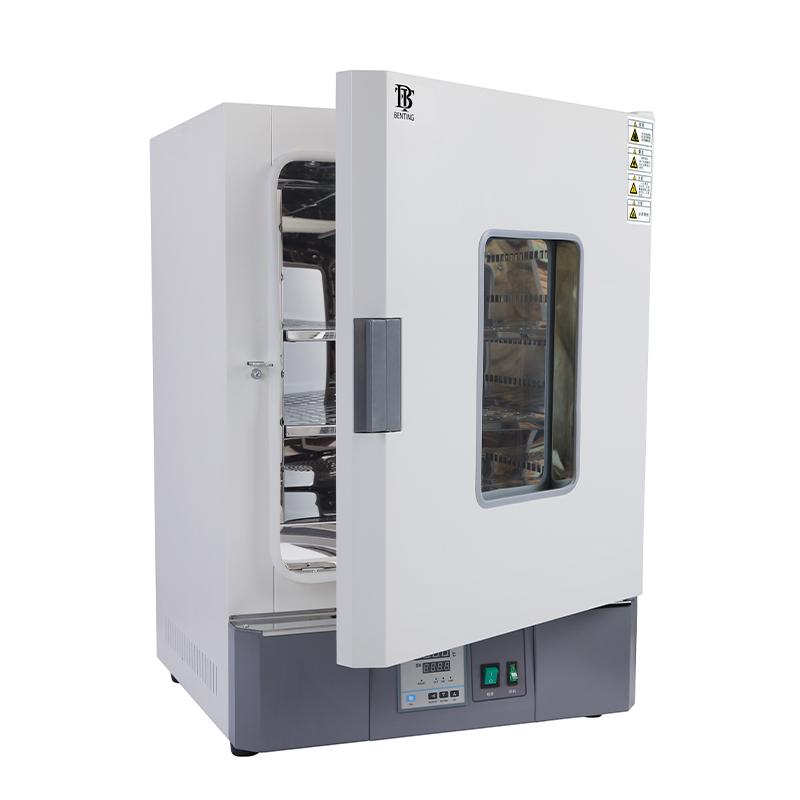

The BENTING CBX30B Sterilizer is a vertical dual air duct forced convection sterilizing device with a 30L volume, stainless steel studio and Cold rolled steel plate exterior, surface resistance painting. The product offers a Temperature range of RT + 10 to 300 ° C, Temperature Fluctuation +/- 1 ° C, resolution 0.1 ° C, suitable for fast, safe and reliable sterilizing operations.
Features
1. Quick, safe and reliable sterilize
2. Convenient operation, support fixed-value operation, regular operation and automatic stop
3. Dedicated function keys to achieve temperature setting
4. Auxiliary menu provides over-rise alarm, deviation correction and menu lock function
5. Vertical double air duct air sleeve, turbine centrifugal forced air supply, more uniform temperature
6. The speed-regulating fan supports the use of lightweight, fine, and powdery samples
7. Forced fan cooling intake structure, fan operating temperature < 50 ℃, to ensure long life operation
8. Security includes over-lift alarm, menu lock, and over-lift prevention
Principle
The sterilization box adopts double air duct forced convection mode, forced air supply through turbo centrifugal fan, combined with stainless steel heating tube heating, to achieve uniform temperature distribution in the studio. The temperature control adopts PID mode, and the temperature is accurately monitored through the Pt100 Sensor, which supports fixed value or timing operation mode, and automatically stops after the sterilization effect is achieved.
Applications
Laboratory sterilizing, Medical equipment disinfection, Sample Handling, Scientific research experiment
Steps
1. Use the touch of four buttons to set the temperature
2. Select fixed-value operation or timing operation mode
3. Set Timer Range 0~ 9999 minutes (with timing waiting function)
4. Start running and the device will automatically stop
Notice
• Pay attention to the over-rise alarm function to prevent abnormal temperature rise
• Use the menu lock function to avoid misoperation
• Power frequency AC220V/3.6A
• Load per shelf no more than 15kg
• Regularly check the fan cooling structure to keep the operating temperature < 50 ℃
• Pay attention to power outage compensation and memory functions to ensure that data is not lost
