Overview

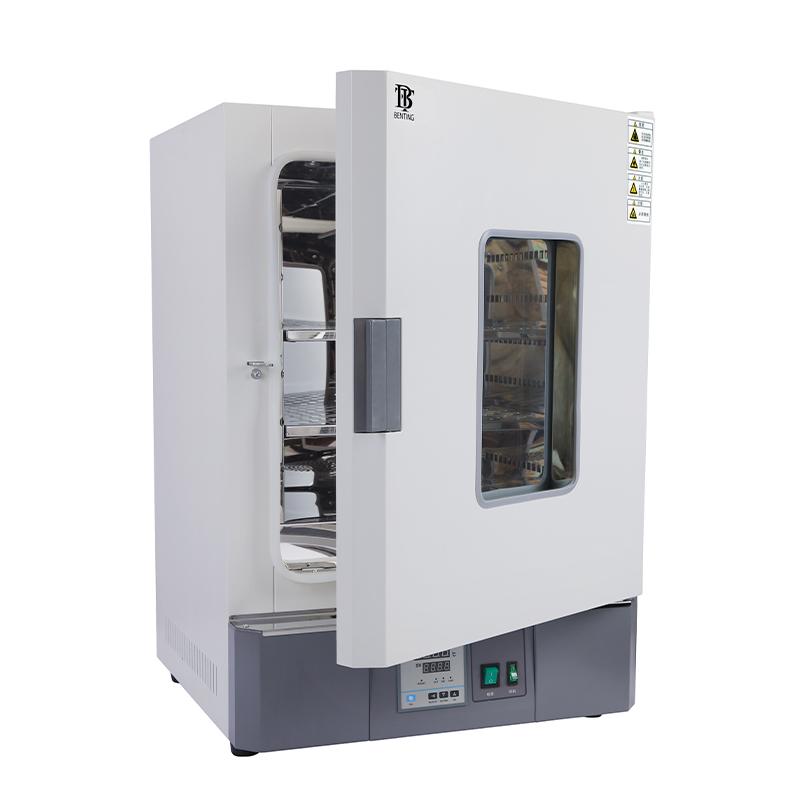

BENTING CBX125B sterilization box is a vertical dual air duct forced convection equipment with stainless steel studio and Cold rolled steel plate outer box, with high efficiency sterilizing function. The product is suitable for laboratory, medical and other fields, providing RT + 10 to 300 ℃ Temperature range, Temperature Uniformity of +/- 2.5%, to ensure safe and reliable sterilization process.
Features
1.Quickly, safely and reliably sterilize.
2. Convenient operation, support fixed-value operation, regular operation and automatic stop.
3. Dedicated function keys to achieve temperature setting.
4. Auxiliary menu provides over-rise alarm, deviation correction and menu lock function.
5. Vertical double air duct air jacket and turbine centrifugal forced air supply to ensure more uniform temperature.
6. Speed-regulating fans are suitable for lightweight, fine, and powdery samples.
7. Forced fan cooling intake structure, so that the fan operating temperature is lower than 50 ℃, to achieve long life operation.
Principle
This product uses a stainless steel heating tube to heat the air through a dual air duct forced convection method, and a turbo centrifugal fan forces the air to ensure uniform temperature distribution in the studio. The temperature control adopts PID algorithm and real-time monitoring through Pt100 Sensor to achieve accurate temperature control and automatic stop function.
Applications
Laboratory, medical
Steps
1. Use the touch of four buttons to set the temperature.
2. Select the fixed-value operation or the timing operation mode.
3. Set Timer Range 0~ 9999 minutes.
4. The equipment automatically stops running.
Notice
• Pay attention to the over-rise alarm function to prevent the temperature from rising abnormally.
• Use the menu lock function to avoid misoperation.
• Ensure that the operating temperature of the fan is lower than 50 ° C to prolong the life of the equipment.
• Regularly check safety devices, such as over-lift alarms.
• Avoid overloading. Load per shelf is 15kg.
