Overview

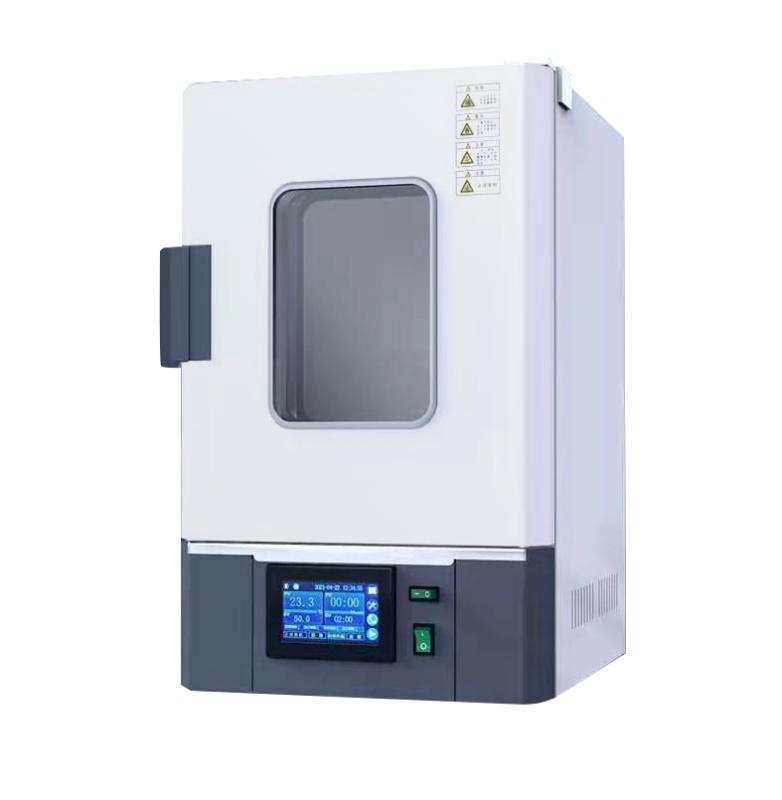

BENTING CBX125BE sterilization box is a vertical dual air duct forced convection equipment with stainless steel studio and Cold rolled steel plate outer box, with high efficiency sterilizing function. Temperature range of RT + 10~ 300 ℃, volume 125L, support fixed value operation, timing operation and automatic stop, suitable for laboratory and industrial sterilization needs.
Features
1. Quick, safe and reliable sterilize
2. Convenient operation, fixed value operation, regular operation, automatic stop
3. Dedicated function keys to achieve temperature setting
4. Auxiliary menu, realize over-rise alarm, deviation correction, menu lock
5. Vertical double air duct air sleeve, turbine centrifugal forced air supply, more uniform temperature
6. Speed-regulating fans enable the use of lightweight, fine, powdery samples
7. Forced fan cooling intake structure, so that the fan operating temperature < 50 ℃, long life operation
8. LCD multi-data full-screen operation display, power outage memory, power outage compensation
9. Overlift preventer
Principle
The sterilization box adopts a dual air duct forced convection method, which is forced by a turbocentrifugal fan to ensure even distribution of the temperature in the studio. The heating system uses stainless steel heating tubes, and the LCD dual-row PID thermostat precisely controls the temperature for rapid heating and safe sterilization. The speed-regulating fan design allows for the handling of lightweight and powdery samples, while the forced cooling structure guarantees the long-term stable operation of the fan.
Applications
Laboratory and industrial disinfection
Steps
1. Use the touch of four buttons to set the temperature
2. Select fixed-value operation or timing operation mode
3. Set Timer Range 0~ 9999 minutes (with timing waiting function)
4. Start the device and stop running automatically
Notice
● Power frequency is AC220V/10.5A
● Load per shelf no more than 15kg
● Pay attention to the overlift preventer safety device function
● Check the temperature transducer Pt100 status before use
● Avoid operating outside the specified temperature range
