Overview

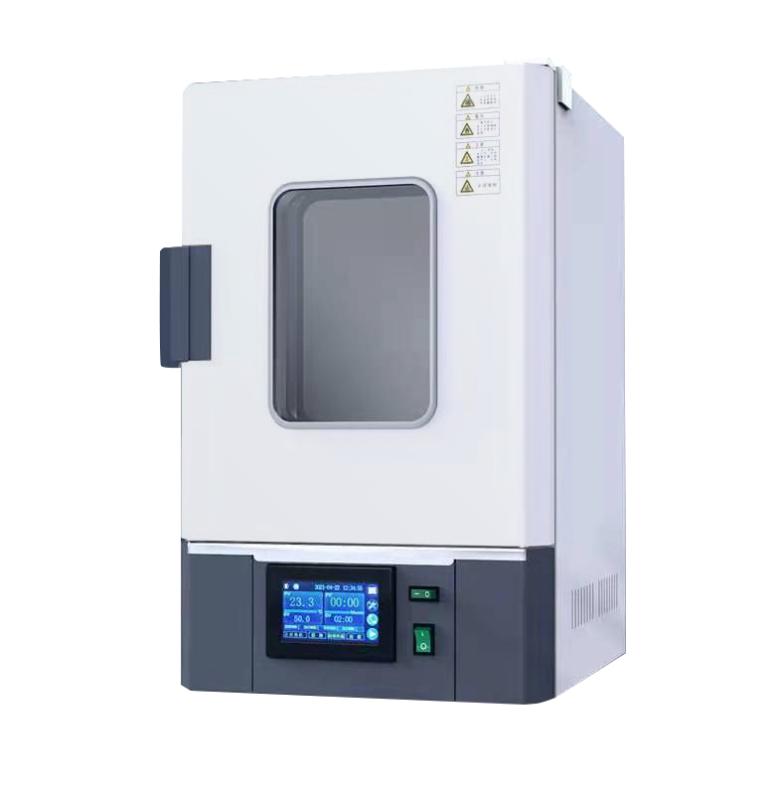

BENTING CBX45BE Sterilizer is a vertical dual air duct forced convection sterilizing equipment with stainless steel studio and Cold rolled steel plate outer box, which has fast, safe and reliable sterilizing performance. The equipment supports fixed-value operation, timing operation and automatic stop function, and is suitable for sterilization needs in laboratory and industrial fields.
Features
1. Quick, safe and reliable sterilize
2. Convenient operation, fixed value operation, regular operation, automatic stop
3. Dedicated function keys to achieve temperature setting
4. Auxiliary menu, realize over-rise alarm, deviation correction, menu lock
5. Vertical double air duct air sleeve, turbine centrifugal forced air supply, more uniform temperature
6. Speed-regulating fans enable the use of lightweight, fine, powdery samples
7. Forced fan cooling intake structure, so that the fan operating temperature < 50 ℃, long life operation
8. LCD multi-data full-screen operation display, power outage memory, power outage compensation
9. Overlift preventer
Principle
The sterilization box adopts the forced convection method of double air ducts, and the forced air supply through the turbo centrifugal fan ensures the uniform distribution of the temperature in the studio. The heating system uses stainless steel heating pipes, combined with the liquid crystal dual-row PID thermostat to precisely control the temperature to achieve an efficient sterilizing process.
Applications
Laboratory and industrial disinfection
Steps
1. Use the touch of four buttons to set the temperature
2. Select fixed-value operation or timing operation mode
3. Equipment automatically runs and stops
Notice
- Pay attention to the over-rise alarm and prevention function
- Check menu lock settings before use
- Power frequency AC220V
- Avoid overloading, Load per shelf is 15kg
Regular maintenance of fans and cooling structures
