Overview

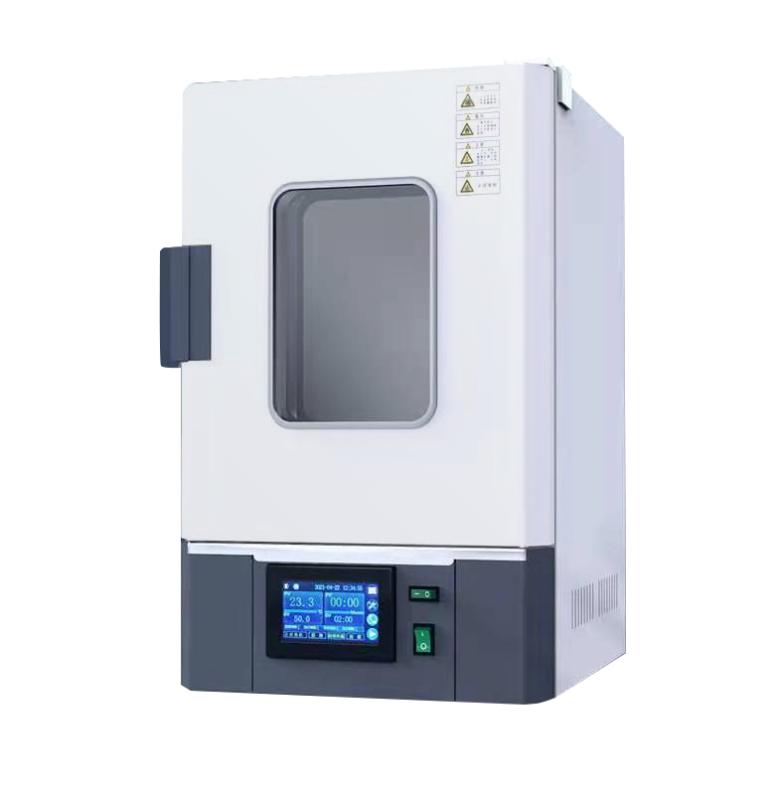

BENTING CBX30BE sterilization box is a vertical double air duct forced convection sterilization equipment, using stainless steel studio and Cold rolled steel plate outer box, with 30L volume, Temperature range RT + 10~ 300 ℃, Temperature Fluctuation +/- 1 ℃, resolution 0.1 ℃, suitable for fast, safe and reliable sterilizing operation.
Features
1. Quick, safe and reliable sterilize
2. Convenient operation, support fixed-value operation, regular operation and automatic stop
3. Dedicated function keys to achieve temperature setting
4. Auxiliary menu provides over-rise alarm, deviation correction and menu lock function
5. Vertical double air duct air sleeve, turbine centrifugal forced air supply, more uniform temperature
6. The speed-regulating fan supports the use of lightweight, fine, and powdery samples
7. Forced fan cooling intake structure to ensure fan operating temperature < 50 ℃, prolong service life
8. LCD multi-data full-screen operation display, with power outage memory and power outage compensation functions
9. Equipped with overlift preventer
Principle
The sterilization box adopts dual air duct forced convection mode, forced air supply through turbo centrifugal fan, combined with stainless steel heating tube heating, to achieve uniform temperature distribution in the studio. The LCD dual-row PID thermostat precisely controls the temperature, supports fixed value or timing operation mode, and the automatic stop function ensures safe and reliable operation.
Applications
Laboratory sterilizing, Medical disinfection, Sample Handling
Steps
1. Use the touch of four buttons to set the temperature
2. Select fixed-value operation or timing operation mode
3. Set Timer Range 0~ 9999 minutes (with timing waiting function)
4. Start running and the device will automatically stop
Notice
● Power frequency is AC220V/3.6A
● Load per shelf no more than 15kg
● Check safety devices such as overlift preventer before use
● Note that Inner chamber material is stainless steel, Outer box is Cold rolled steel plate painting
● Regular maintenance of fan cooling structure to maintain operating temperature < 50 ℃
