Overview

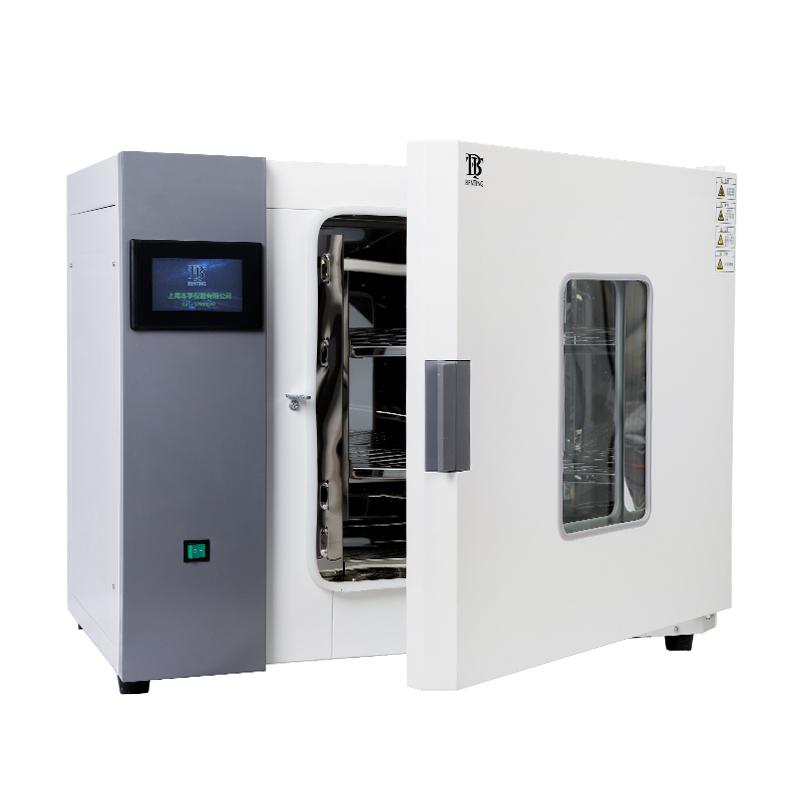

BENTING C101-0AB blast drying oven is suitable for drying, baking, melting wax, sterilizing and curing in laboratories and R & D institutions of industrial and mining enterprises.
Features
1. The shell is made of good Cold rolled steel plate, the surface is treated by lame plating process, the studio is made of stainless steel or Cold rolled steel plate, and treated by anti-corrosion process
2. The intelligent temperature controller adopts PID control program, digital display, and has timing function
3. The box door is equipped with a double-decked tempered Glass observation window, which can observe the condition of the heated items in the working room at any time
4, the door with silicone rubber sealing, sealing effect is good
5, Blow type equipped with low noise fan, single air duct design to ensure good Temperature Uniformity in the studio
Principle
The air drying oven heats the studio through the heating system, and cooperates with the low-noise fan and single air duct design to achieve hot air circulation, so that the temperature in the working room is evenly distributed. The intelligent temperature control instrument adopts the PID control program to precisely adjust the temperature and realize the thermostatic drying function.
Applications
Industrial and mining enterprise laboratories, R & D institutions
Steps
1. Turn on the power supply and set the required temperature
2. Start the heating and blast system
3. Monitor the status of items in the studio through the observation window
4. Automatically stop heating after reaching the set time
5. Turn off the power and take out the items
Notice
• Power frequency check meets 220V/50HZ requirements before use
• The maximum load of the studio does not exceed 15kg/shelf
• Ambient Temperature is recommended to be kept around 20 ° C
• The working environment humidity is recommended to be kept at about 50% RH
• Avoid use in humid environments
• Regularly check whether the door sealing strip is in good condition
• Please disconnect the power supply when cleaning
