Overview

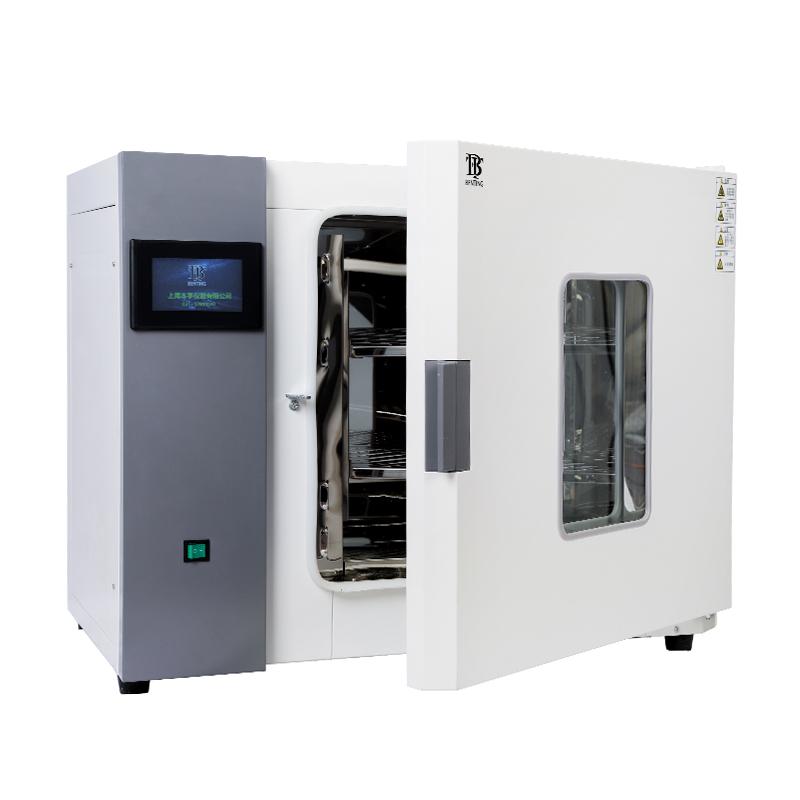

BENTING C202-3AB thermostatic drying oven is suitable for drying, baking, melting wax, sterilizing and curing in laboratories and R & D institutions of industrial and mining enterprises.
Features
1. The shell is made of good Cold rolled steel plate, the surface is treated by lame plating process, the studio is made of stainless steel or Cold rolled steel plate, and treated by anti-corrosion process.
2. The intelligent temperature controller uses a PID control program, digital display, and a timing function.
3. The middle of the box door is equipped with a double-decked tempered Glass observation window, which can observe the condition of the heated items in the working room at any time.
4, the door with silicone rubber sealing, sealing effect is good.
5. Blower type is equipped with low noise fan, single air duct design, to ensure good Temperature Uniformity in the studio.
Principle
The thermostatic drying oven uses the PID control program to precisely control the temperature through the intelligent temperature controller, and is equipped with a heating system to heat the studio. The blast type product ensures uniform temperature distribution in the working room through low-noise fans and single air duct design.
Applications
Industrial and mining enterprise laboratories, R & D institutions
Steps
1. Power frequency 220V/50HZ.
2. Set the temperature parameters of the intelligent thermostat (Temperature range RT + 10-250 ℃).
3. Set the timing function as required.
4. Put the items into the studio and ensure that the shelf load does not exceed 15kg.
5, close the door, the use of silicone rubber to ensure sealing.
6. Start the device and monitor the heating process through a double-decked tempered Glass viewing window.
Notice
• Test performance parameters under no-load conditions, Ambient Temperature 20 ℃, environment humidity 50% RH.
• Load per shelf is 15kg, please do not overload.
The recommended Ambient Temperature is 20 ° C and the humidity is 50% RH.
Equipment net weight 110kg, gross weight 140kg, pay attention to safety when handling.
