Overview

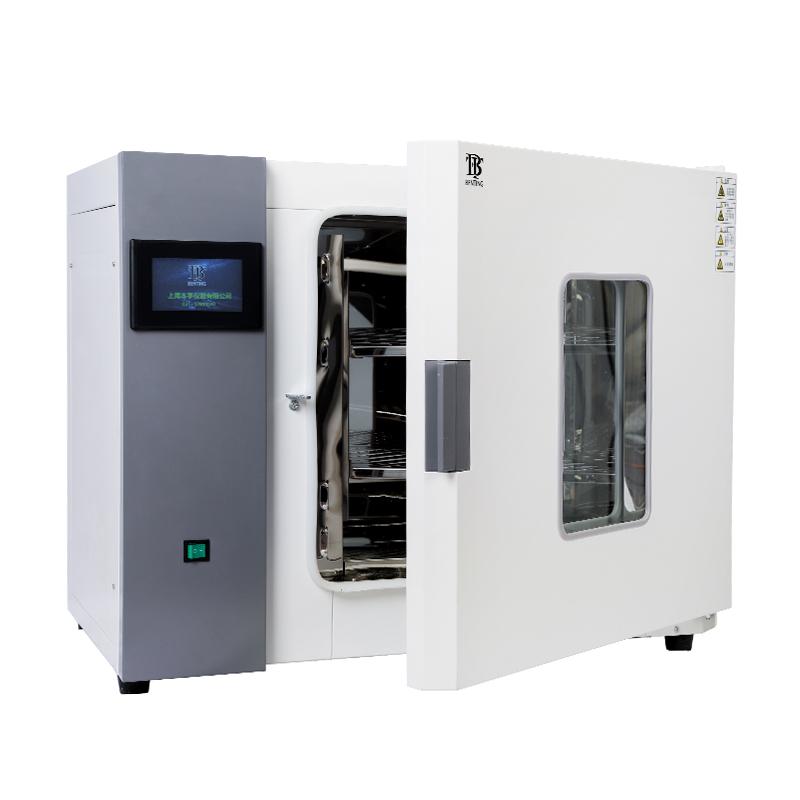

BENTING C202-2AB thermostatic drying oven is suitable for drying, baking, melting wax, sterilizing and curing in laboratories and R & D institutions of industrial and mining enterprises.
Features
1. The shell is made of good Cold rolled steel plate, the surface is treated by lame plating process, and the studio is made of stainless steel and treated by anti-corrosion process.
2. The intelligent temperature controller uses a PID control program, digital display, and a timing function.
3. The middle of the box door is equipped with a double-decked tempered Glass observation window, which can observe the condition of the heated items in the working room at any time.
4, the door with silicone rubber sealing, sealing effect is good.
5. Blower type is equipped with low noise fan, single air duct design, to ensure good Temperature Uniformity in the studio.
Principle
The thermostatic drying oven adopts the PID control program to precisely control the temperature through the intelligent temperature controller, and cooperates with the blast system to ensure the uniform temperature in the working room, and realizes the functions of drying, baking, melting wax, sterilizing, curing, etc.
Applications
Industrial and mining enterprise laboratories, R & D institutions
Steps
1. Power frequency 220V/50HZ.
2. Set the required temperature through the intelligent thermostat (Temperature range RT + 10-250 ℃).
3. Set the timing function as required.
4. Put items into the studio (maximum load 15kg/shelf).
5. Close the box door and ensure the sealing of the silicone rubber strip.
6. Start the equipment and monitor the heating process through the observation window.
Notice
• Test performance parameters under no-load conditions, Ambient Temperature 20 ℃, environment humidity 50% RH
• Load per shelf no more than 15kg
• Power frequency is 220V/50HZ before use
• Pay attention to the sealing effect of the box door during operation
• Regularly check the working status of the equipment
