Overview

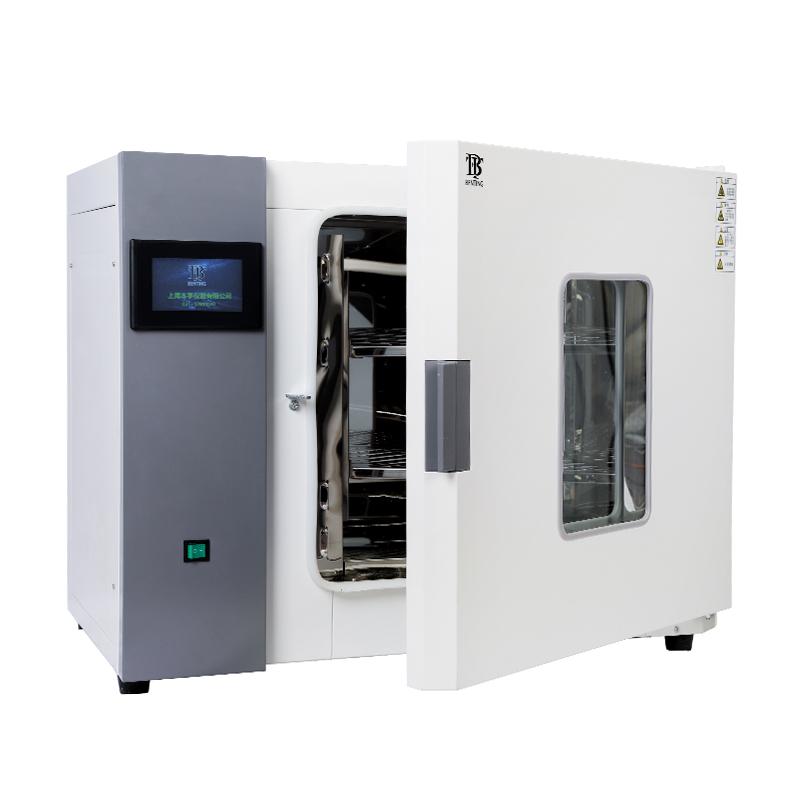

BENTING C202-1AB thermostatic drying oven is suitable for drying, baking, melting wax, sterilizing and curing in laboratories and R & D institutions of industrial and mining enterprises. The product adopts intelligent temperature control instrument with precise temperature control and timing functions.
Features
1. The shell is made of good Cold rolled steel plate, the surface is treated by lame plating process, the studio is made of stainless steel, and treated by anti-corrosion process
2. The intelligent temperature controller adopts PID control program, digital display, and has timing function
3. The box door is equipped with a double-decked tempered Glass observation window, which can observe the condition of the heated items in the working room at any time
4, the door with silicone rubber sealing, sealing effect is good
5, Blow type equipped with low noise fan, single air duct design to ensure good Temperature Uniformity in the studio
Principle
The thermostatic drying oven heats the studio through the heating system, adopts the intelligent PID control program to precisely adjust the temperature, and cooperates with the blast system to ensure the uniform distribution of temperature and realize the thermostatic drying function.
Applications
Industrial and mining enterprise laboratories, R & D institutions
Steps
1. Turn on the power supply
2. Set the required temperature and time parameters
3. Put in the items to be processed
4. Start the device and start working
5. Monitor the working status through the observation window
6. Take out the items after the work is completed
Notice
• Please read the instructions carefully before use
• Power frequency meets equipment requirements (220V/50HZ)
• The studio temperature must not exceed 250 ° C
• Load per shelf no more than 15kg
• Recommended Ambient Temperature 20 ° C, Humidity 50% RH
• Do not open the box door at will when the equipment is working
• Regularly inspect sealing strips and electrical components
• Please disconnect the power supply when cleaning
