Overview

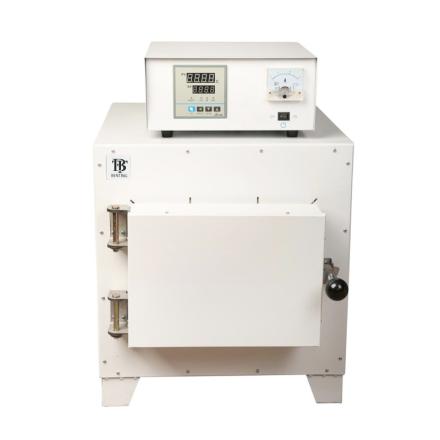

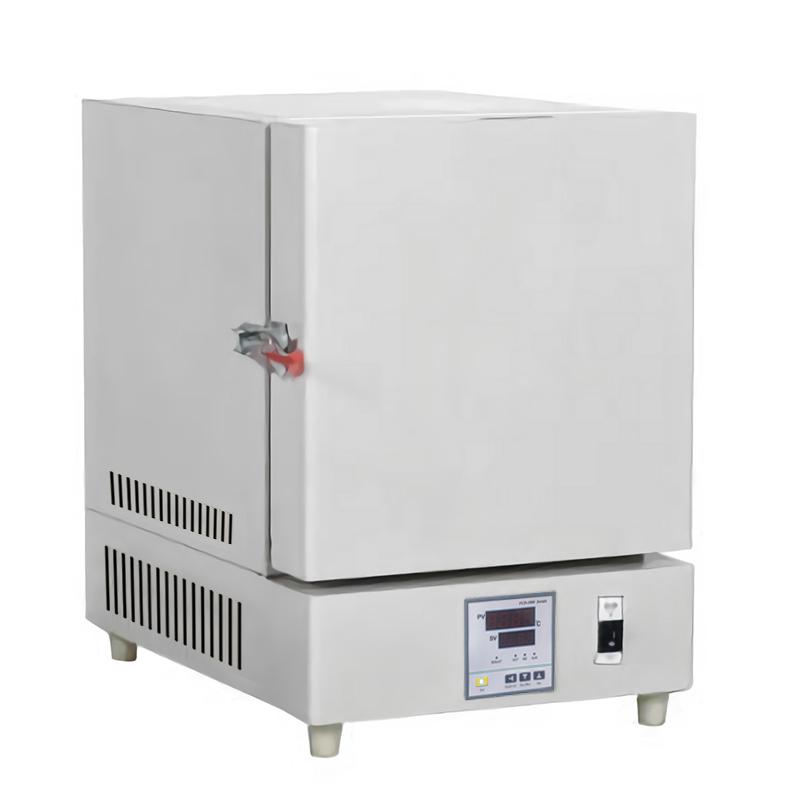

BENTING CSX2-2.5-10 resistance furnace is a cycle-operated heater, designed with refractory brick muffle furnace, suitable for chemical analysis, physical determination and general small steel heat treatment heating in industrial and mining enterprises, R & D institution laboratories.
Features
1. The liner is made of refractory brick, which is cost-effective
2. The intelligent controller has good temperature control effect and is widely exported to European countries
3. Digital one-screen display of temperature, time and other parameters
4. The product is durable, and the parameters are presented without reservation
5. Streamlined luxury machine shape, electrostatic spray box
6. LED large screen LCD display display setting parameters and measured parameters
7. Microcomputer P.I.D temperature controller with over-temperature deviation protection, timing function, accurate and reliable temperature control
8. Upgraded sound and light alarm environment scanning microcomputer chip, powerful data processing function
9. With over-temperature alarm, regular shutdown, call recovery, parameter encryption, temperature correction and other functions
10. Power failure recovery function, automatically restore the original setting program after power failure
11. Comprehensive safety protection design to achieve triple protection of personnel, samples and equipment
12. Sensor fault alarm, over-temperature alarm, independent over-rise preventer, independent over-temperature protector, over-current trip protection and other safety functions
Principle
The microcomputer P.I.D temperature controller is used to achieve accurate temperature control. The refractory brick furnace body is kept warm, and the LED LCD screen displays temperature, time and other parameters in real time. It has functions such as over-temperature protection and power failure recovery to ensure the safety and reliability of the heating process.
Applications
Industrial and mining enterprises, R & D institutions, chemical analysis, physical measurement, heat treatment of small steel parts
Steps
1. Connect the AC220V 50Hz power supply
2. Set temperature and time parameters through LCD LCD screen
Step 3 Start the heating program
4. Monitor temperature and time display
5. The equipment will automatically shut down after reaching the set time
6. Manually open the door and take out the sample.
Notice
• Working Ambient Temperature should be kept within the range of 5 ℃~ 40 ℃
• Power frequency must be AC220V 50Hz
• Temperature range is room temperature + 50~ 1000 ℃, must not exceed the maximum temperature 1000 ℃
• Timer Range 1~ 9999 minutes, need to be set reasonably
• Pay attention to over-temperature alarm and overcurrent protection functions
• Do not block the ventilating port when the equipment is running
• Pay attention to high temperature protection when opening the door manually
