Overview

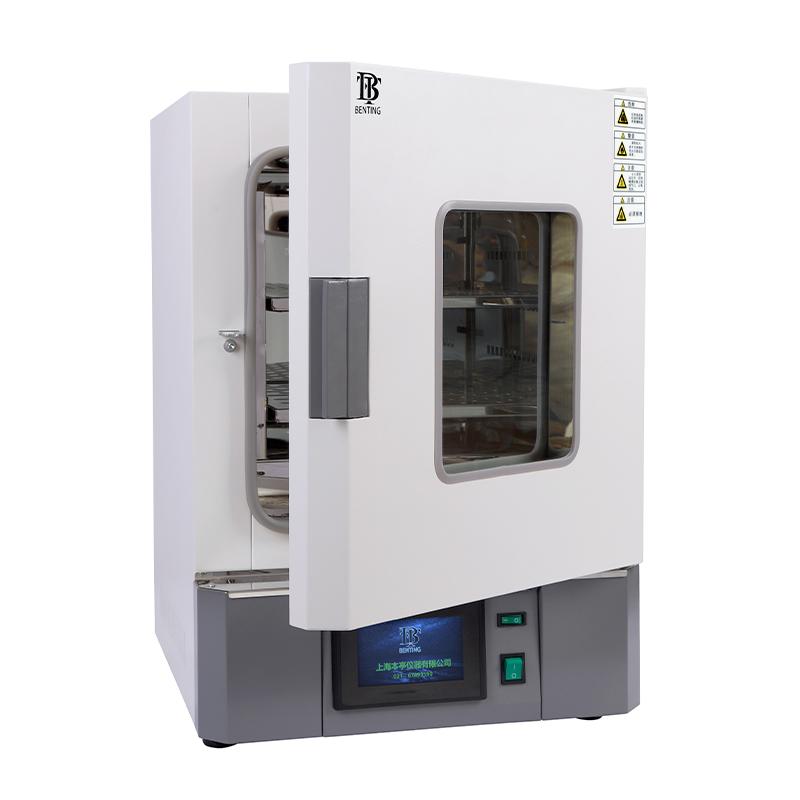

The BENTING CBPL-65BE Incubator is a vertical double air duct designed thermostatic device with a turbine centrifugal forced air supply system to ensure temperature uniformity. The product has the characteristics of High Accuracy Temperature Control, Safety and Reliability, Easy Operation, and supports fixed-value operation, timing operation and automatic stop function. It is suitable for a variety of experimental environments.
Features
1. High Accuracy Temperature Control, Resolution up to 0.1 ℃, Fluctuation +/- 0.5 ℃.
2. Vertical double air duct air sleeve design, turbine centrifugal forced air supply, temperature distribution accuracy +/- 1.0 ℃.
3. The speed-regulating fan supports the use of lightweight, fine, and powdery samples.
4. Safety devices such as low water level alarms and over-rise preventers ensure experimental safety.
5. Forced fan cooling intake structure, fan operating temperature < 50 ℃, prolong service life.
6. LCD multi-data display, support power outage memory, power outage compensation and menu lock functions.
7. Touch the four buttons to set the temperature, easy to operate.
Principle
The incubator uses a dual air duct forced convection thermostatic method, which forces the air through the turbocentrifugal fan to distribute the internal temperature evenly. The temperature control is based on the LCD dual-row PID system, which is monitored in real time by the Pt100 Sensor for precise temperature control. The speed regulating fan adjusts the wind speed according to demand to ensure the adaptability of different samples, while the heat dissipation structure keeps the fan running at low temperature.
Applications
Laboratory fostering, biological experiments, material testing, scientific research and education
Steps
1. Turn on the power supply and check the status of the equipment.
2. Use the touch of four buttons to set the desired temperature.
3. Select the operation mode: fixed-value operation, regular operation or automatic stop.
4. Start the device and monitor the temperature data of the LCD display.
5. After the experiment, the device automatically stops or is manually shut down.
Notice
• Power frequency AC 220V/2.3A 50/60Hz before use to avoid overload.
• Pay attention to the low water level alarm and replenish water in time to prevent the experiment from being interrupted.
• Avoid running in a high temperature environment for a long time, and regularly check the heat dissipation of the fan.
• When the sample is placed, the shelf load should not exceed 15kg, and the Shelf spacing should be 35mm.
• Regularly clean the liner stainless steel plate to prevent contamination from affecting the accuracy.
• Optional accessories such as RS485 interface need to be installed by professionals, do not modify them yourself.
